Home
>>
Eagle
>>
1995
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Body Control Module
>>
Power Door Lock Switches
>>
90A All Doors Failing to Lock and Unlock From One Switch
90A All Doors Failing to Lock and Unlock From One Switch

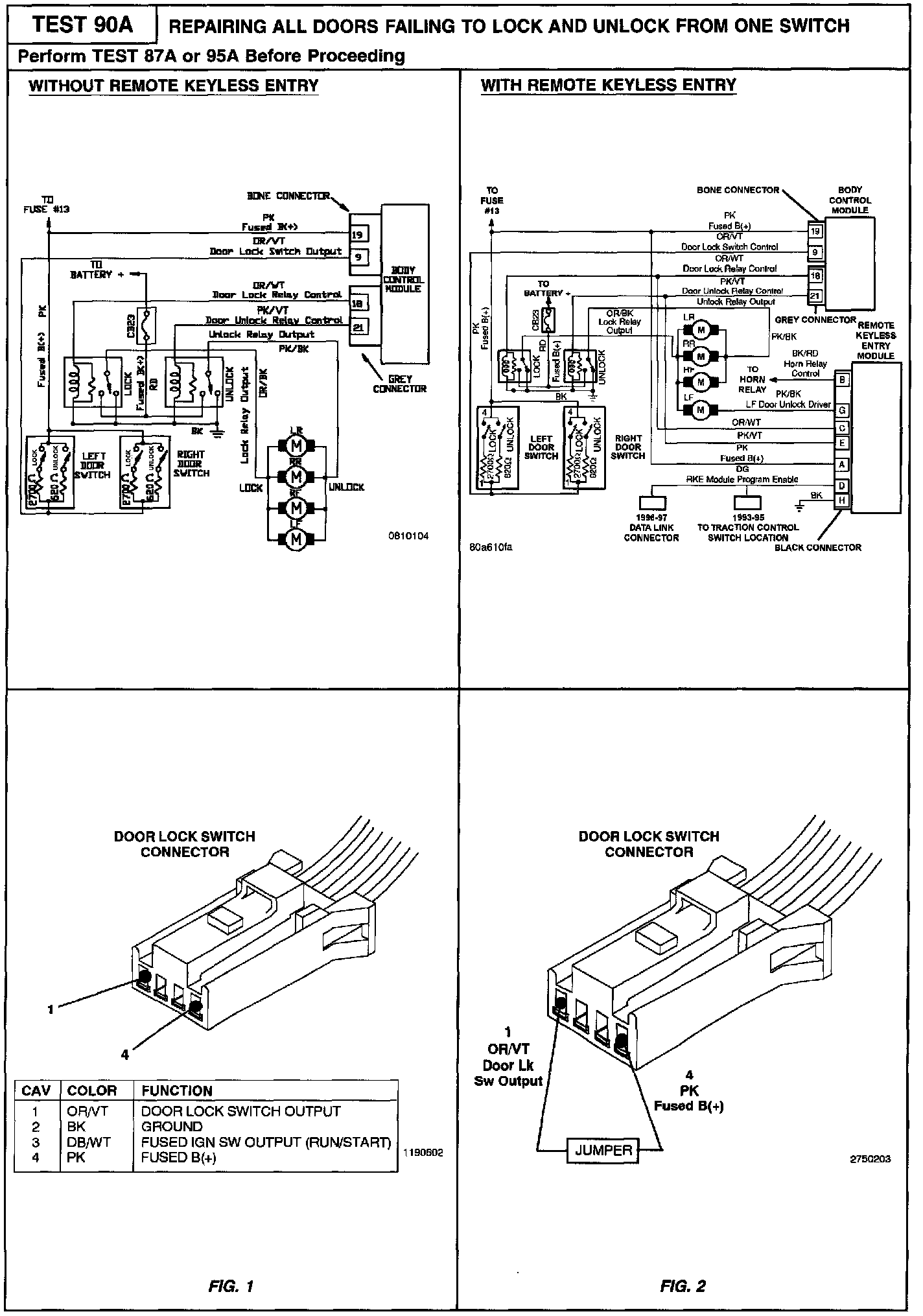

Related Images:

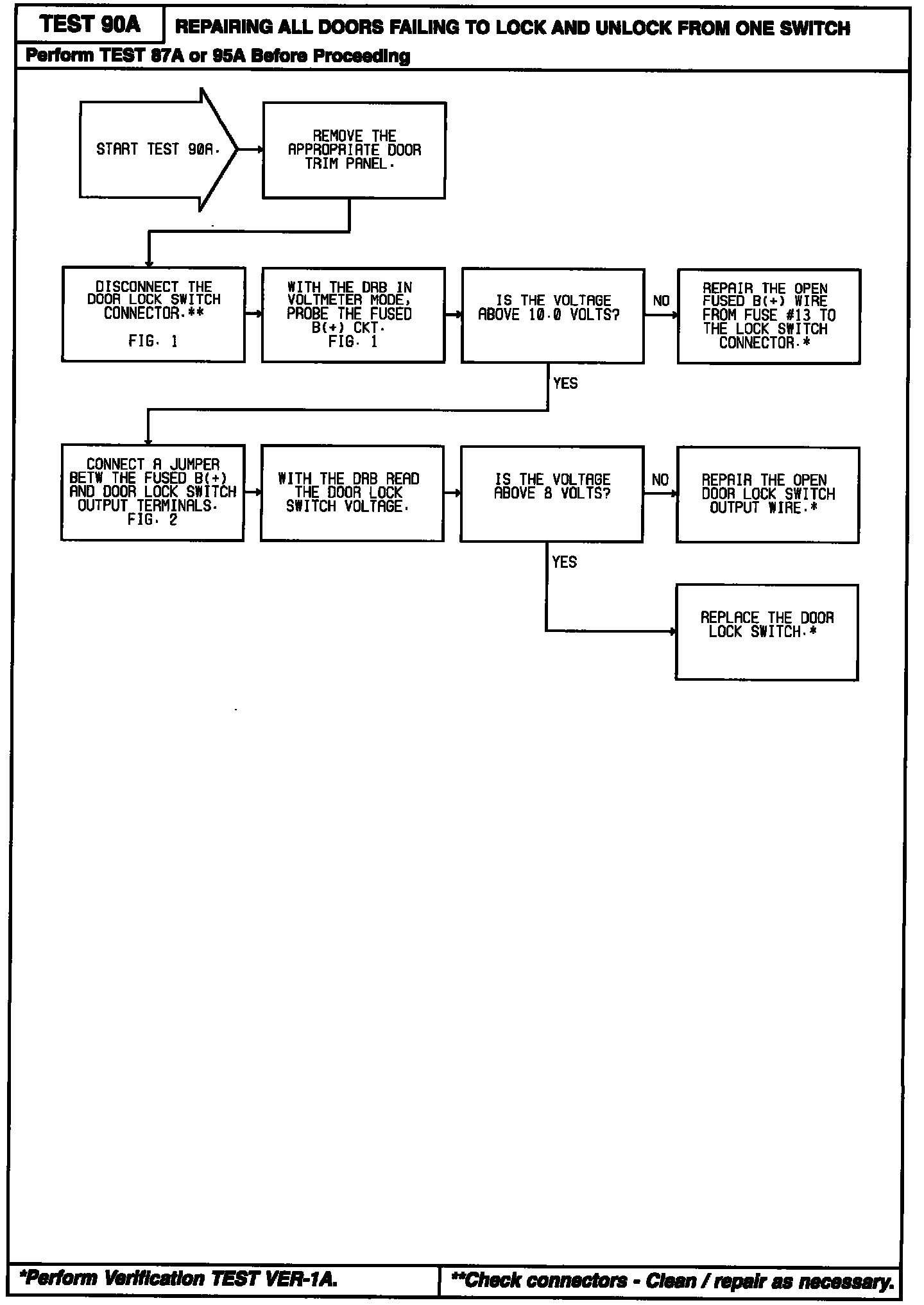

Diagnostic Chart:
