A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Body Control Module
>>
Headlamp System
>>
48B Auto Headlamp Sun Sensor Input Circuit
48B Auto Headlamp Sun Sensor Input Circuit
Related Images:

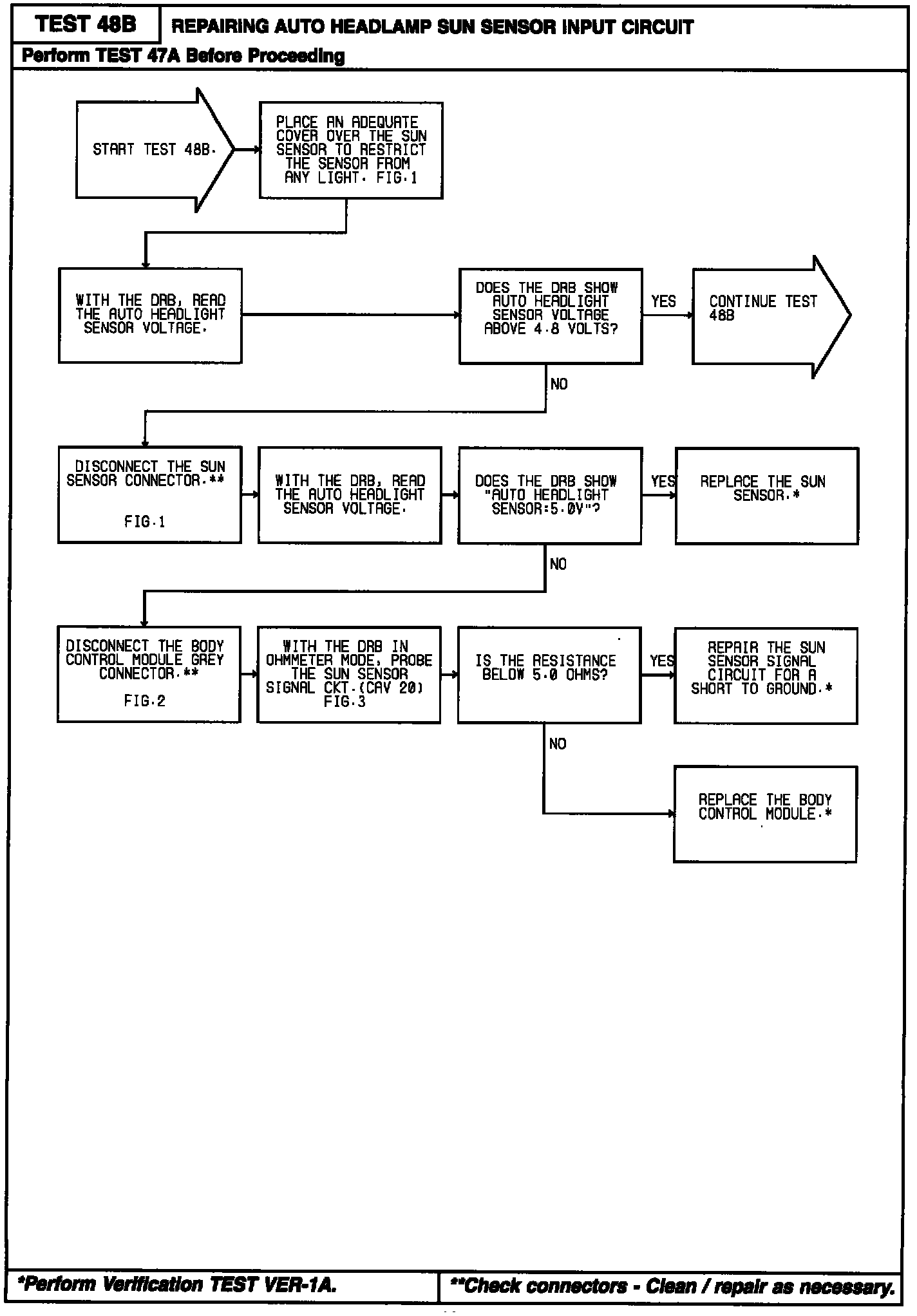

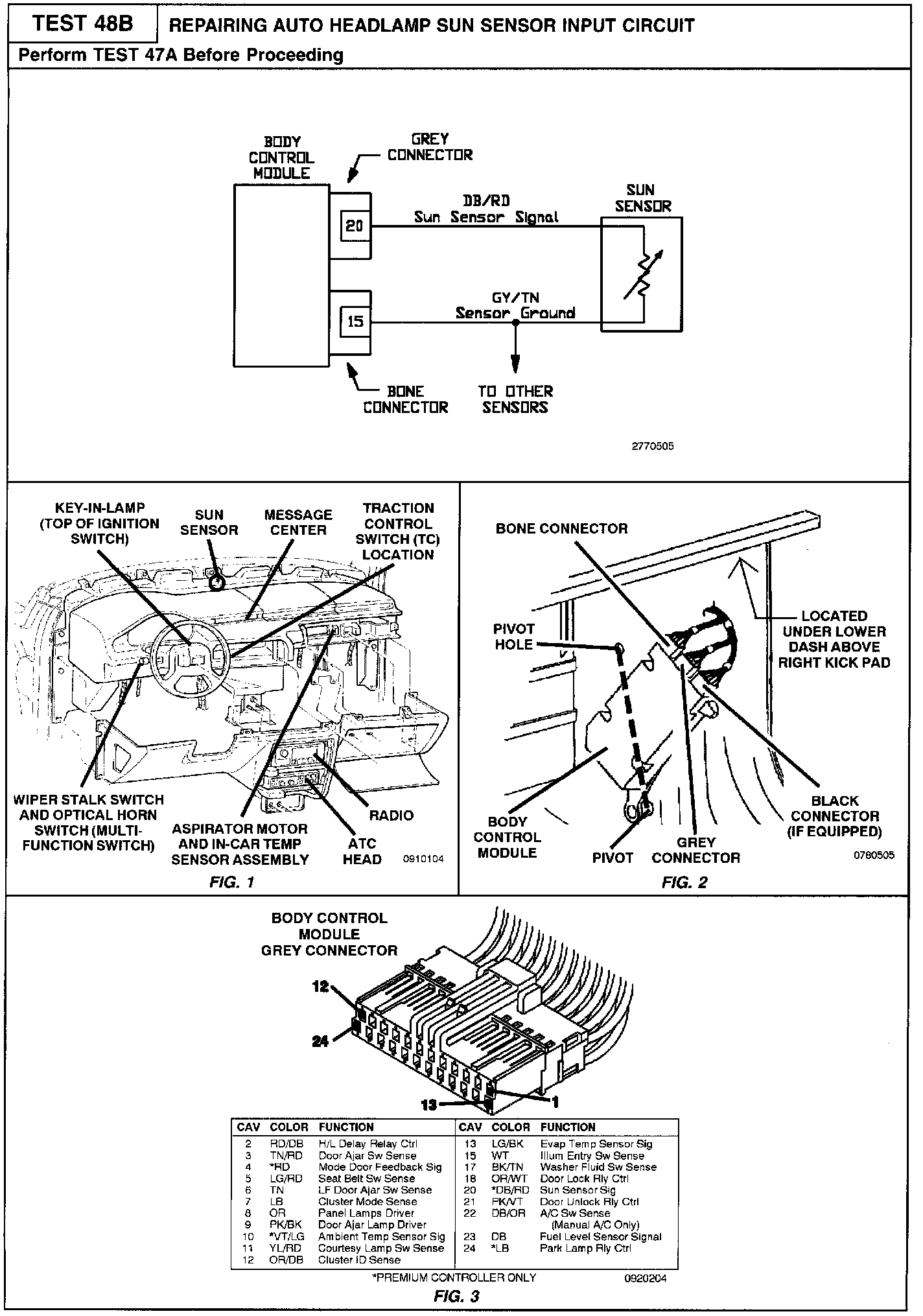

48B Part 1 Of 2:
Related Images:

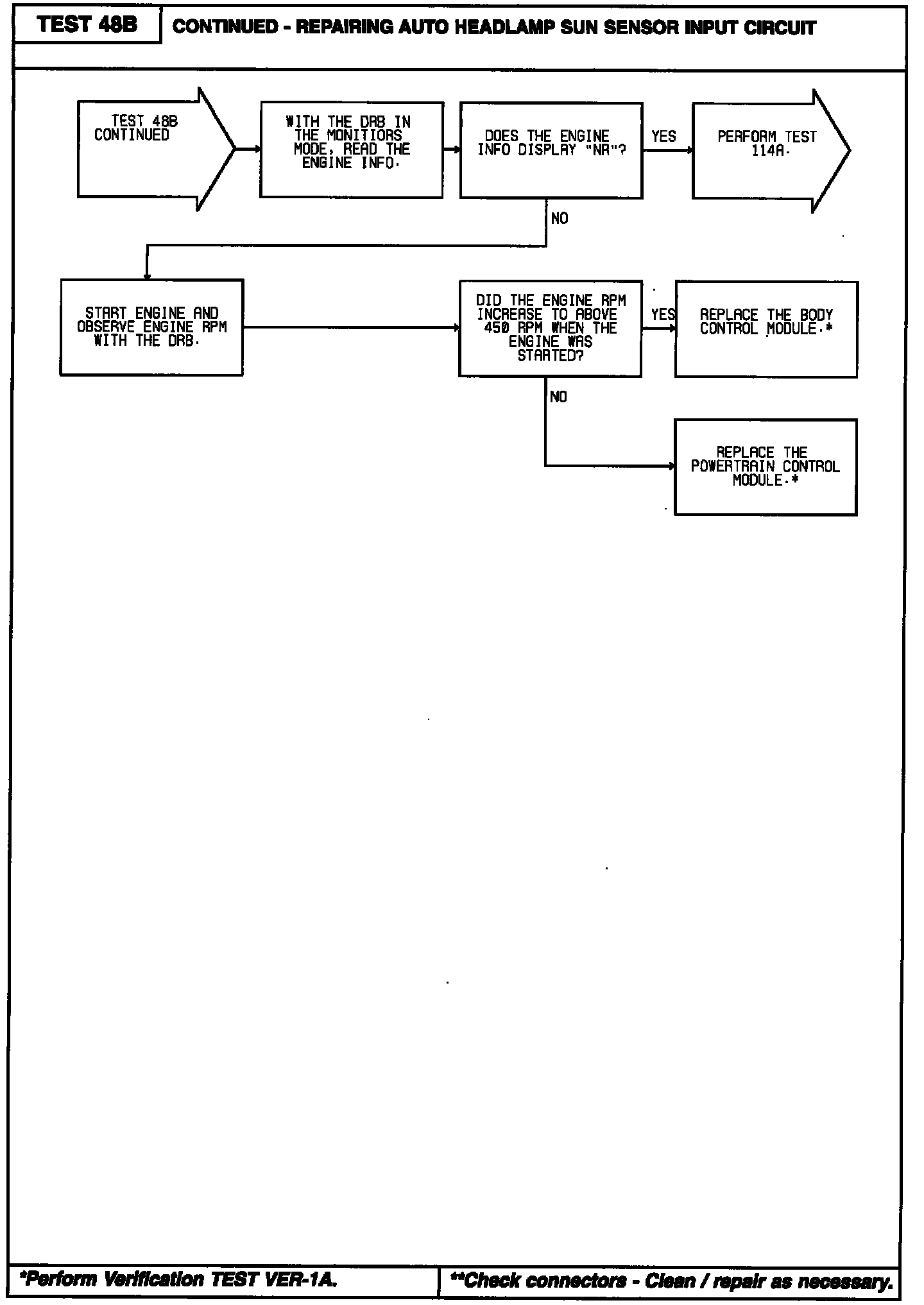

48B Part 2 Of 2:
