Eagle
>>
1995
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antitheft and Alarm Systems
>>

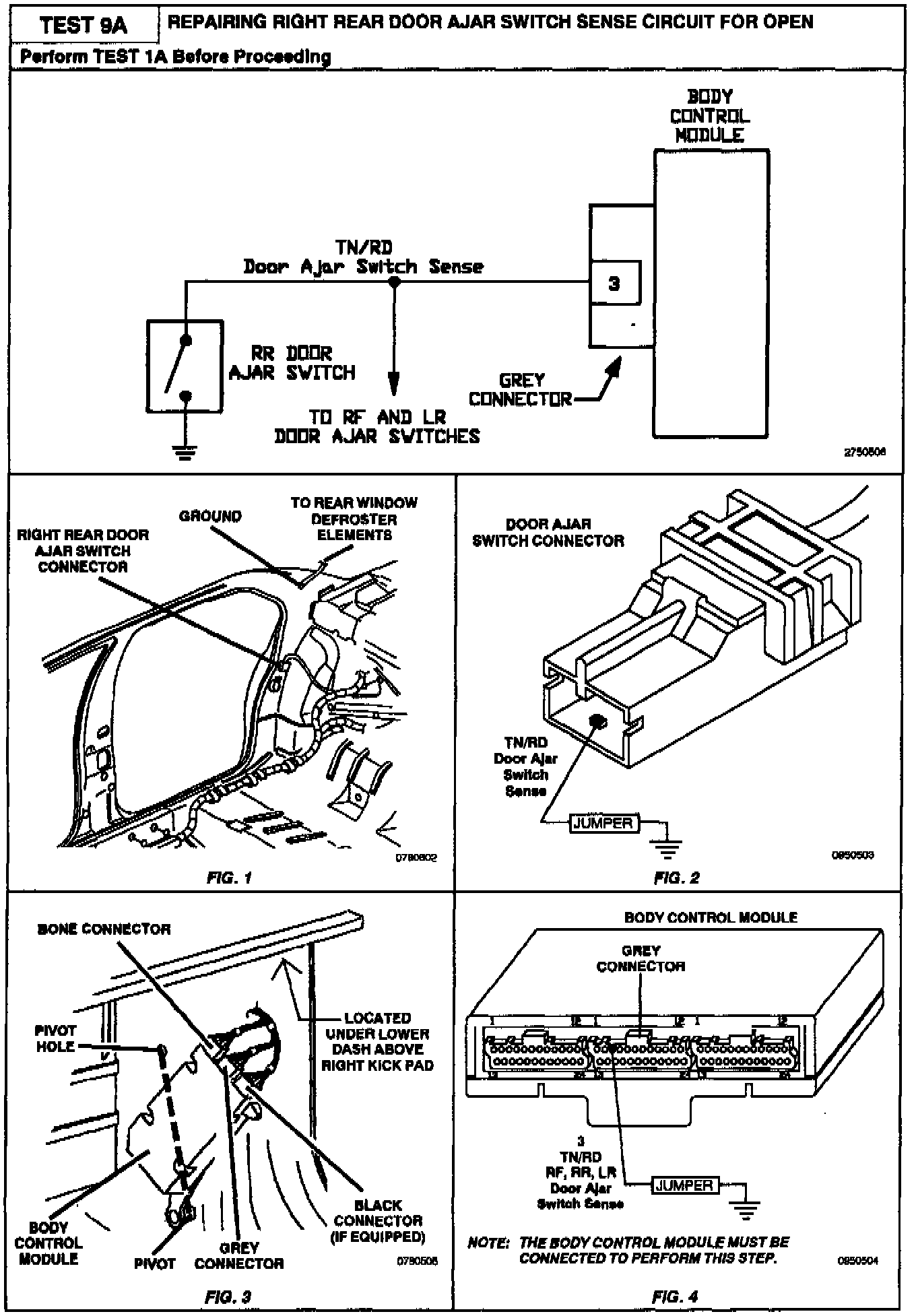

9A Repairing R/R Door Ajar Switch Sense Circuit For Open
9A Repairing R/R Door Ajar Switch Sense Circuit For Open

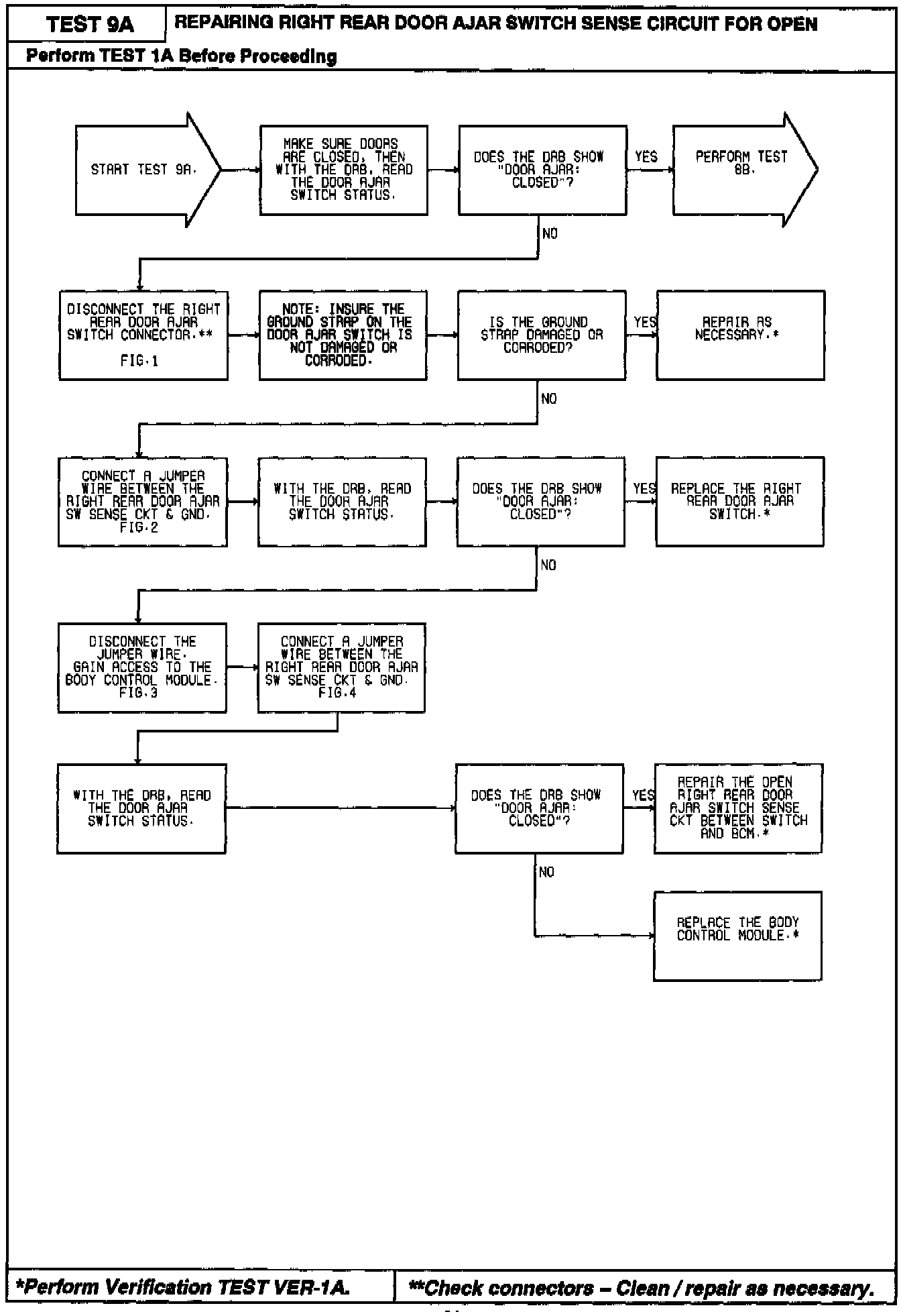

Diagnostic Chart:
Related Images:
