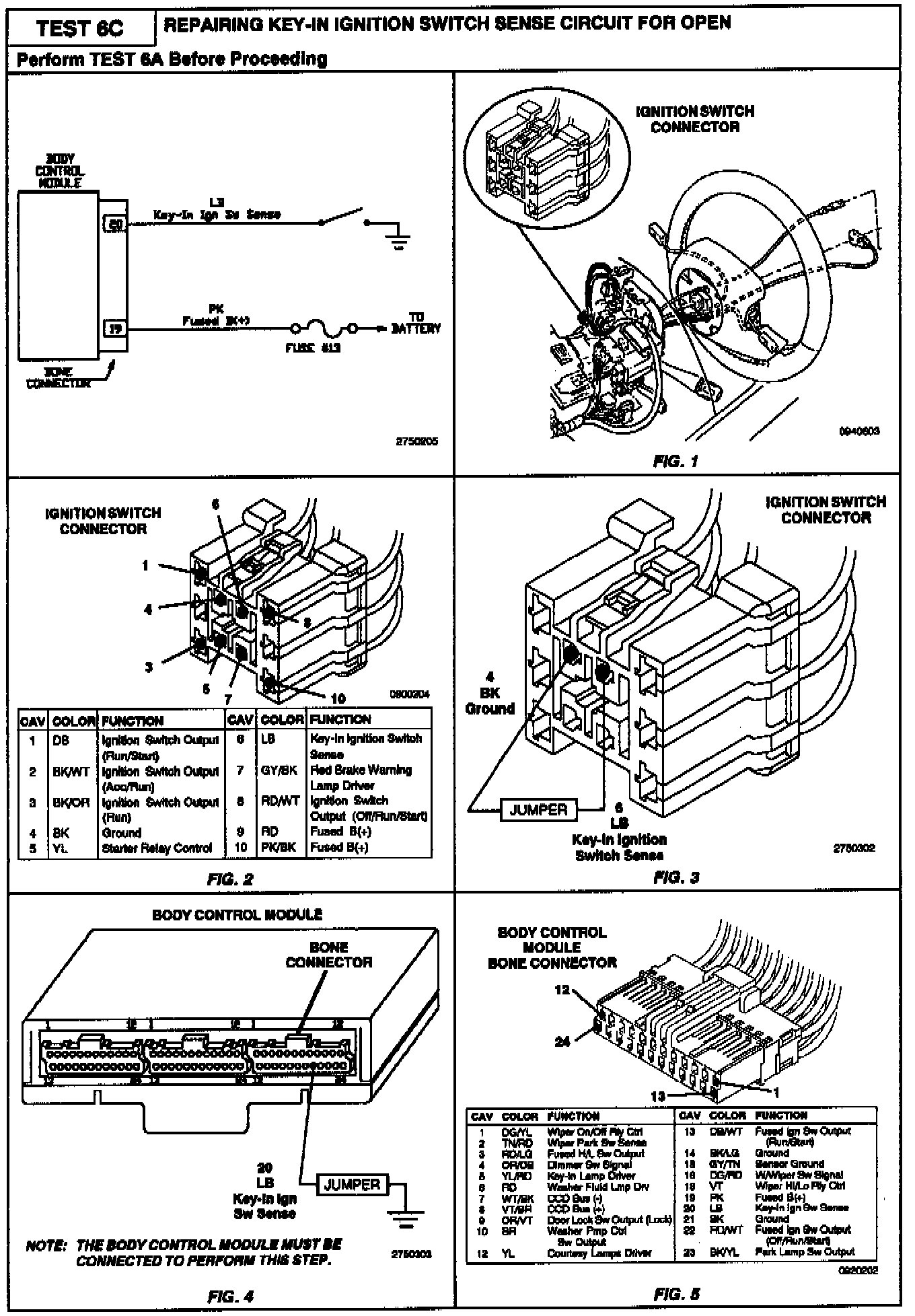

6C Repairing Key-In Ignition Sw. Sense Circuit For Open
6C Repairing Key-In Ignition Sw. Sense Circuit For Open

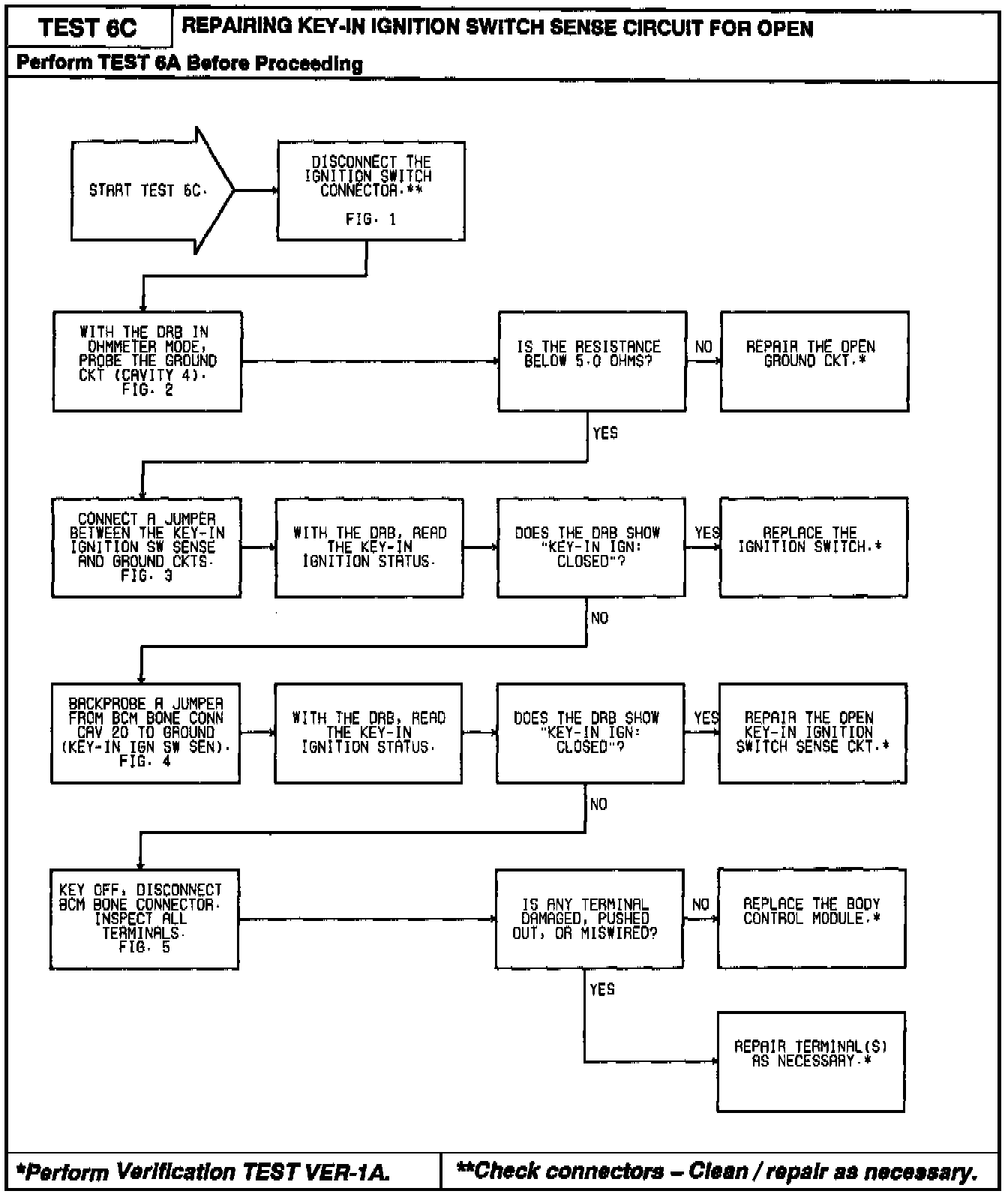

Diagnostic Chart:
Related Images:
