Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antitheft and Alarm Systems
>>

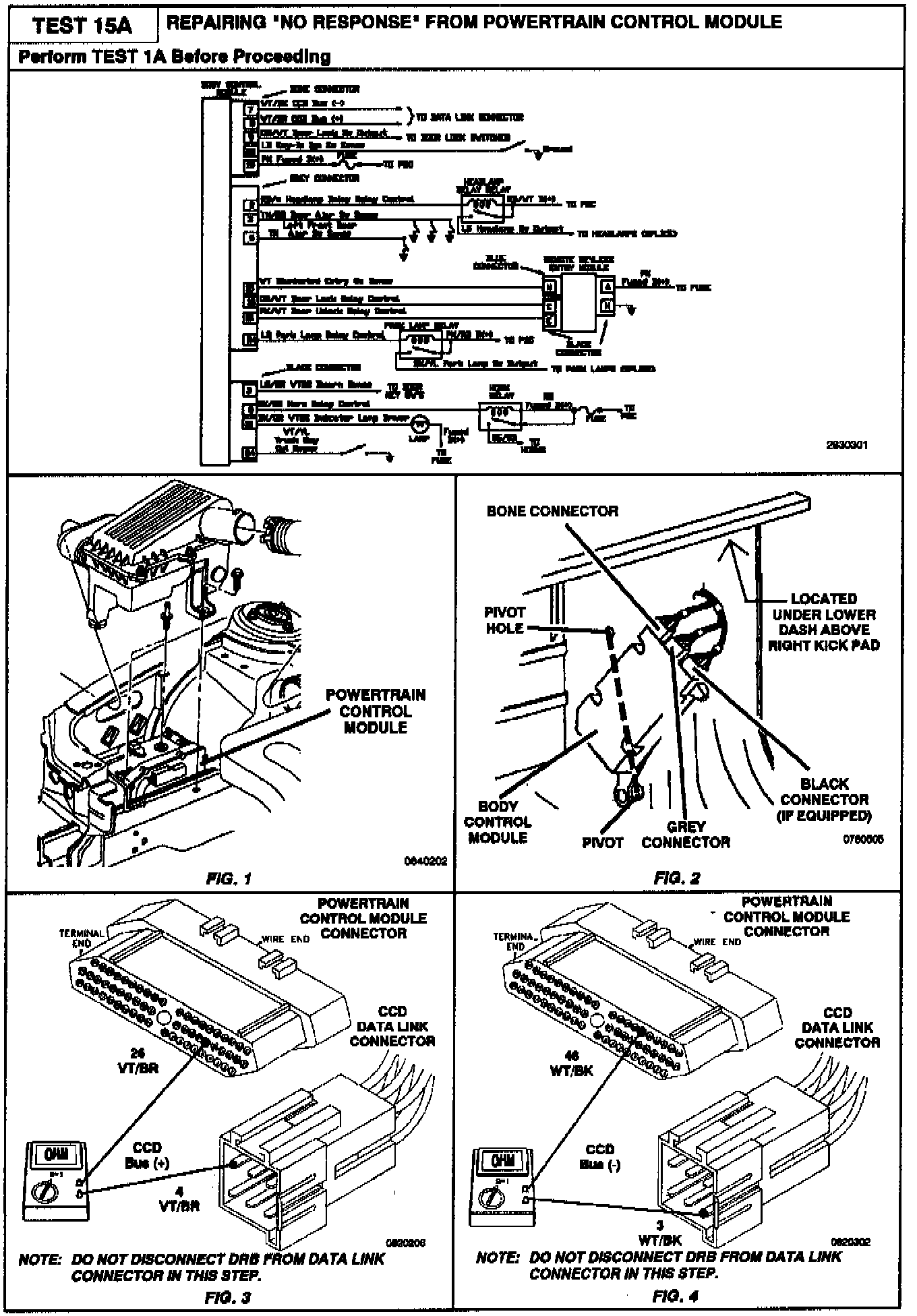

15A Repairing "No Response" From PCM
15A Repairing "No Response" From PCM

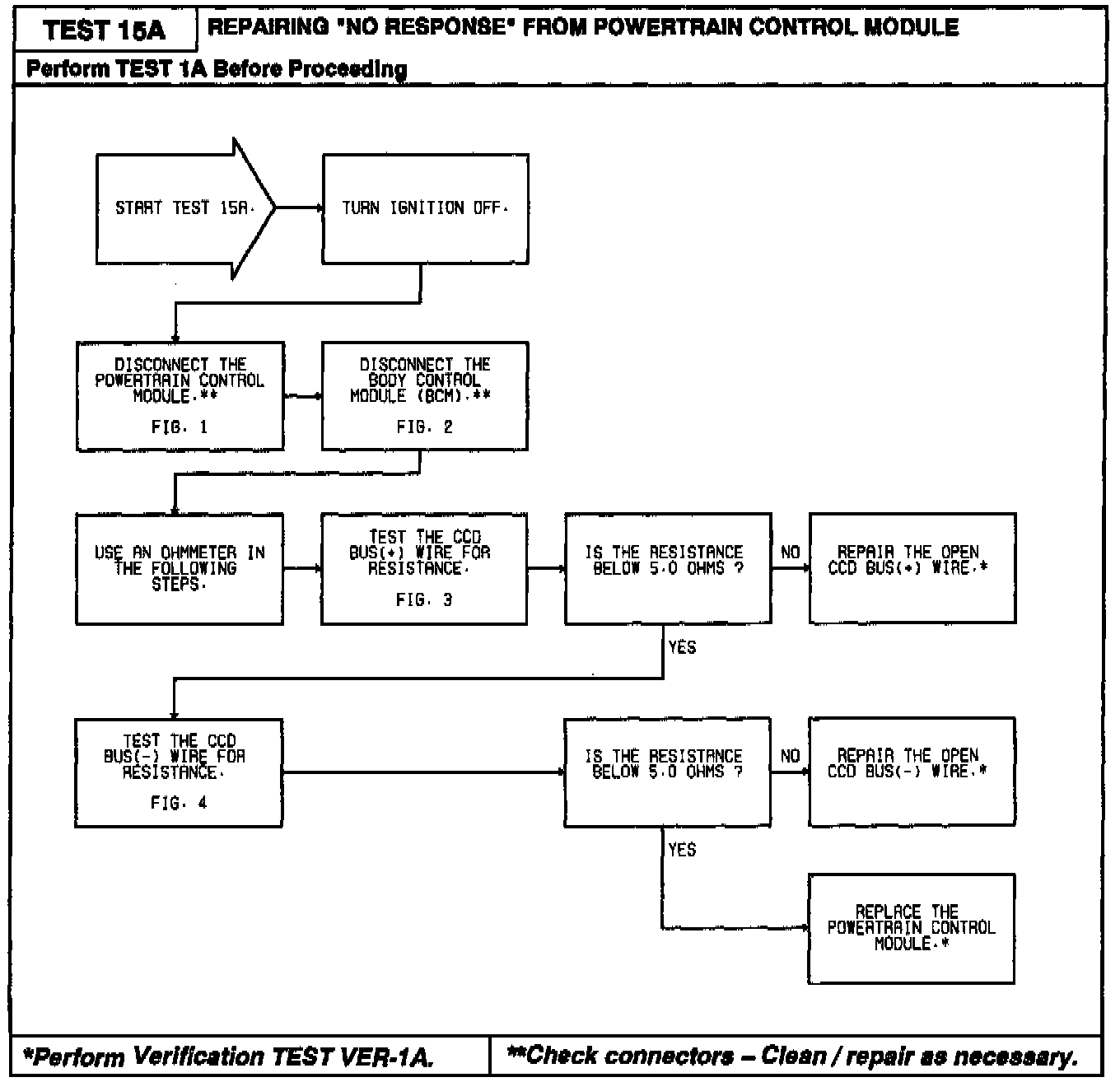

Diagnostic Chart:
Related Images:
