14A Repairing VTSS Disarm Circuit (Right Door)
14A Repairing VTSS Disarm Circuit (Right Door)

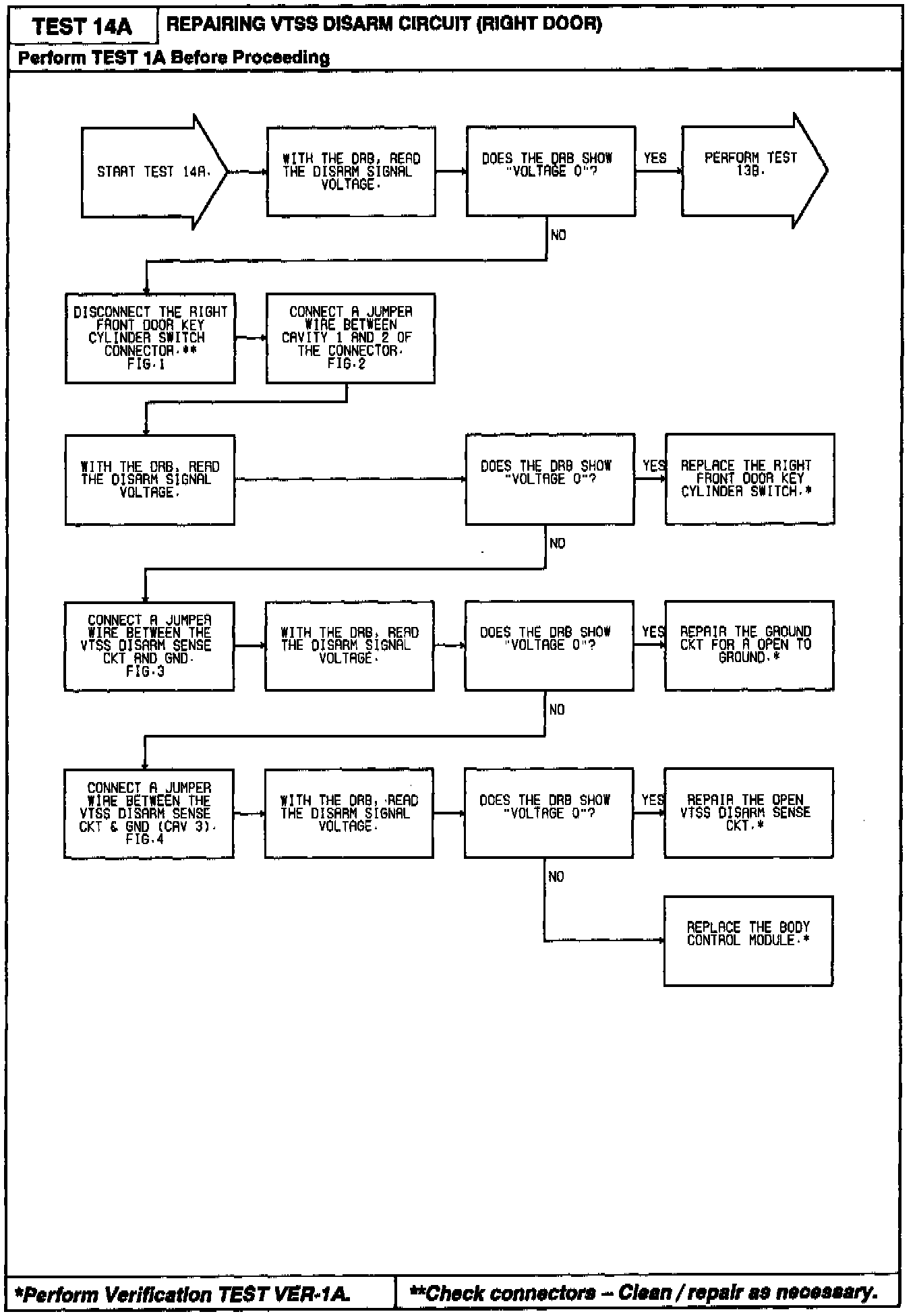

Diagnostic Chart:

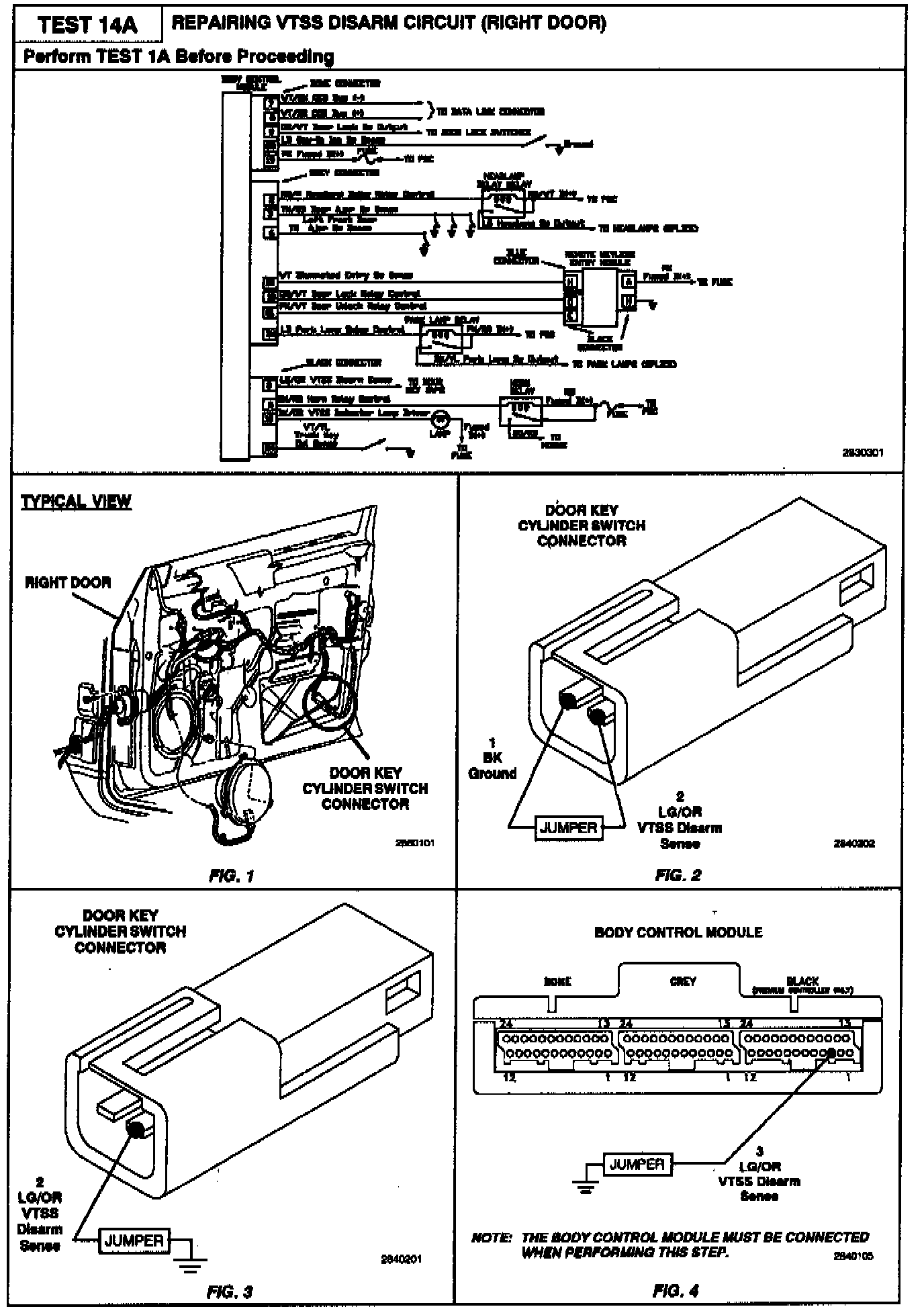

Related Images:
