Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 16 - Pressure Switch/Brake Switch Circuit

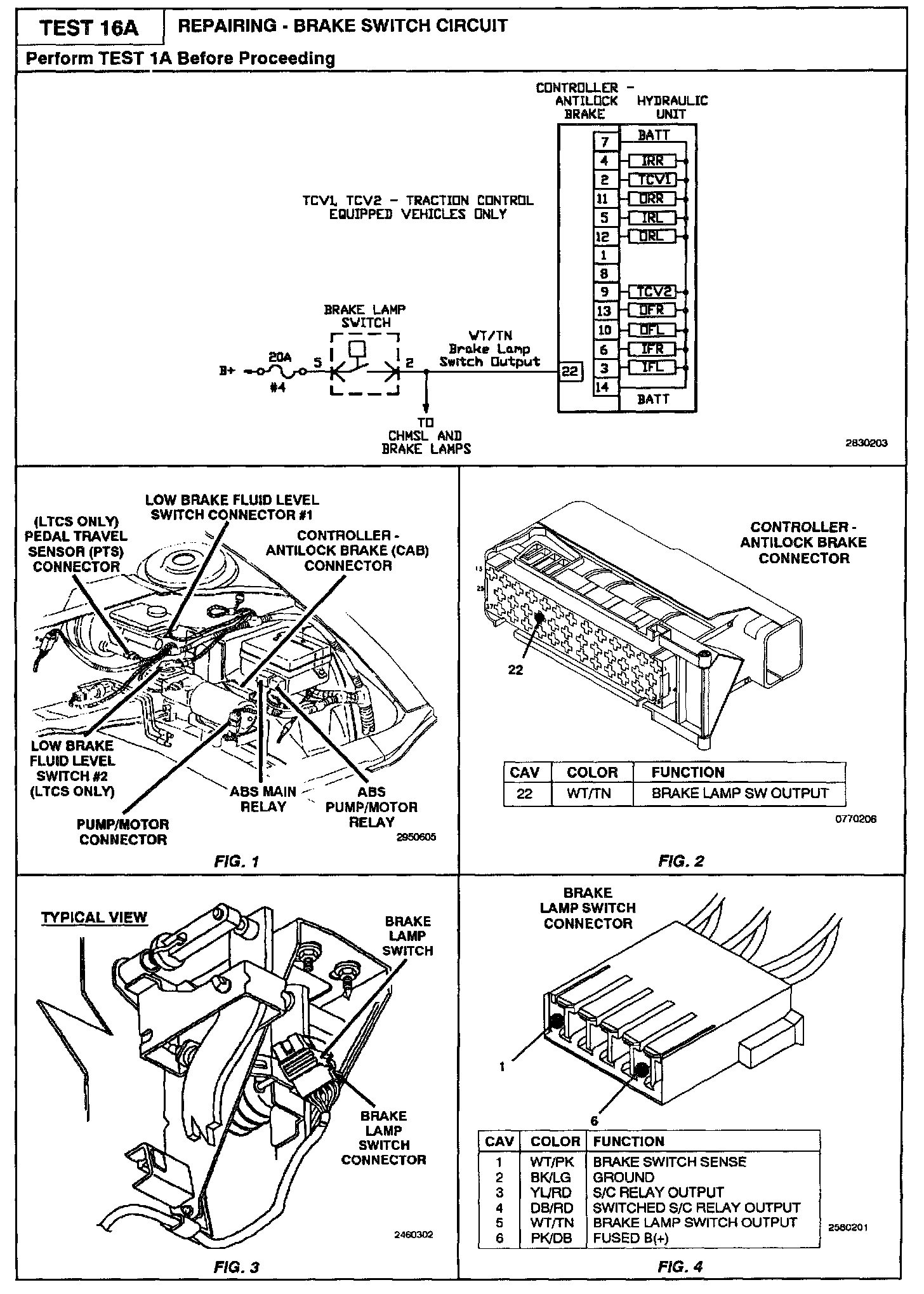

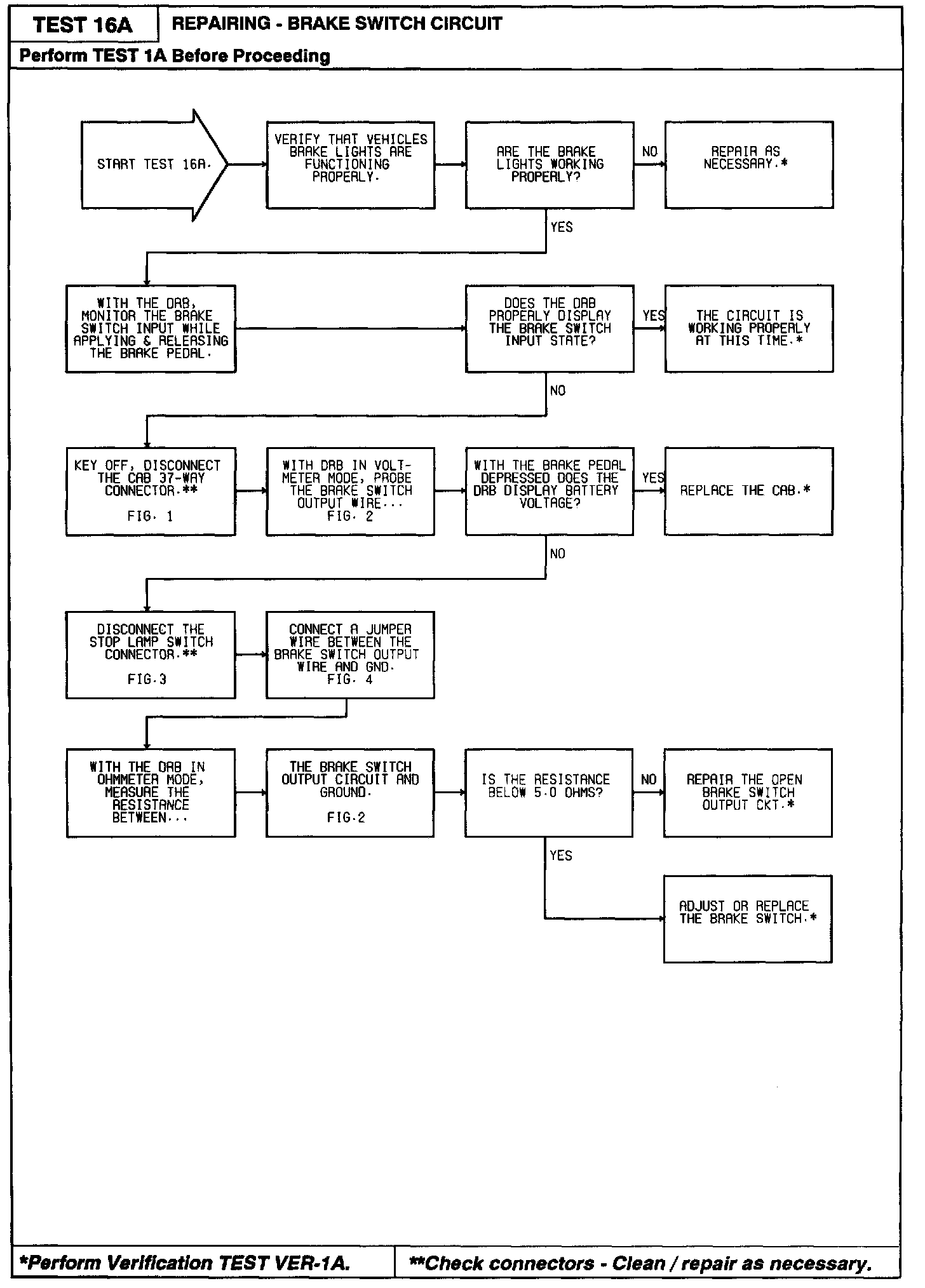

Test 16 - Pressure Switch/Brake Switch Circuit
