Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 4A Two Front Sensors Circuit Open >> Part 1 of 2

Part 1 of 2

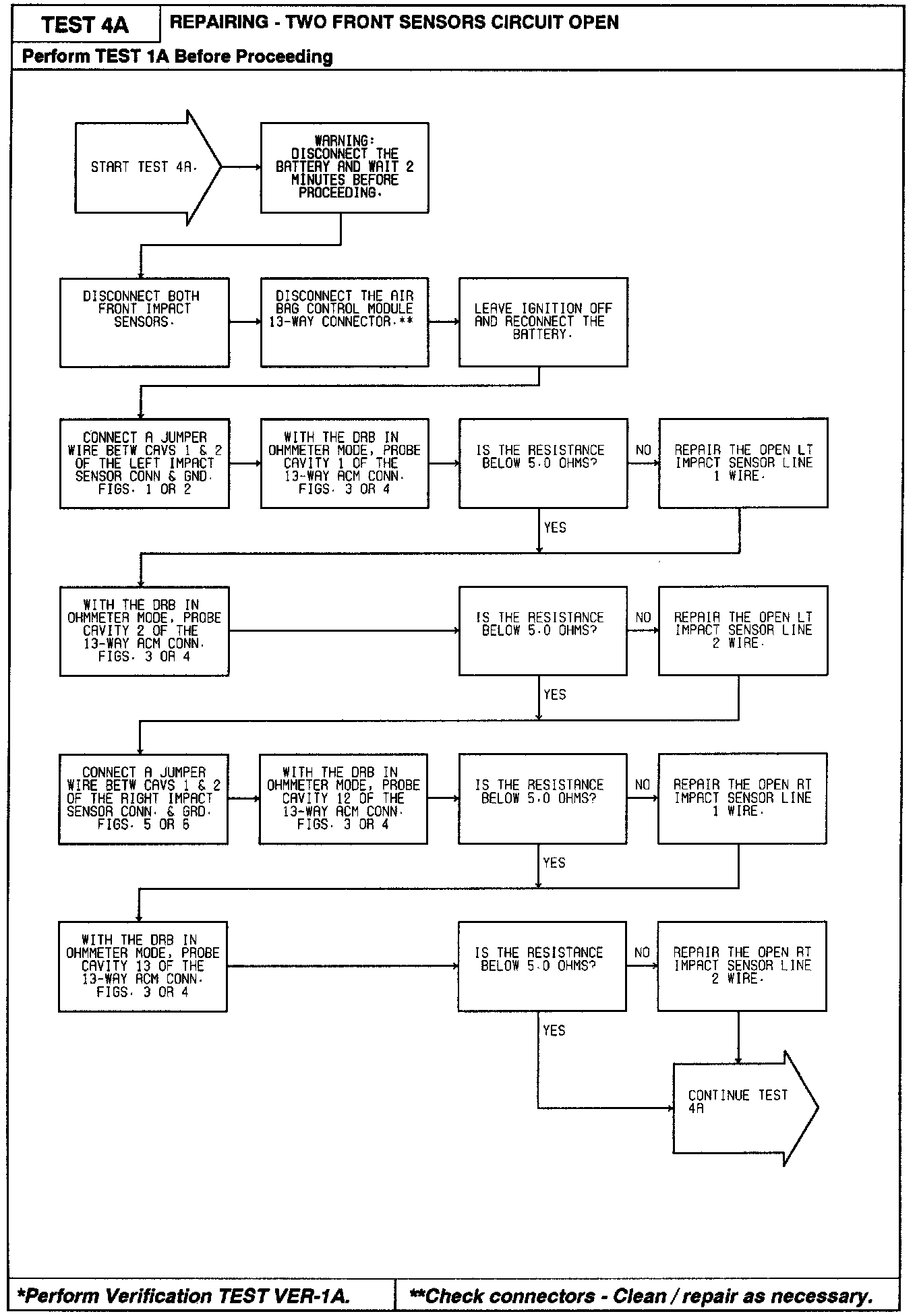

Diagnostic Chart:

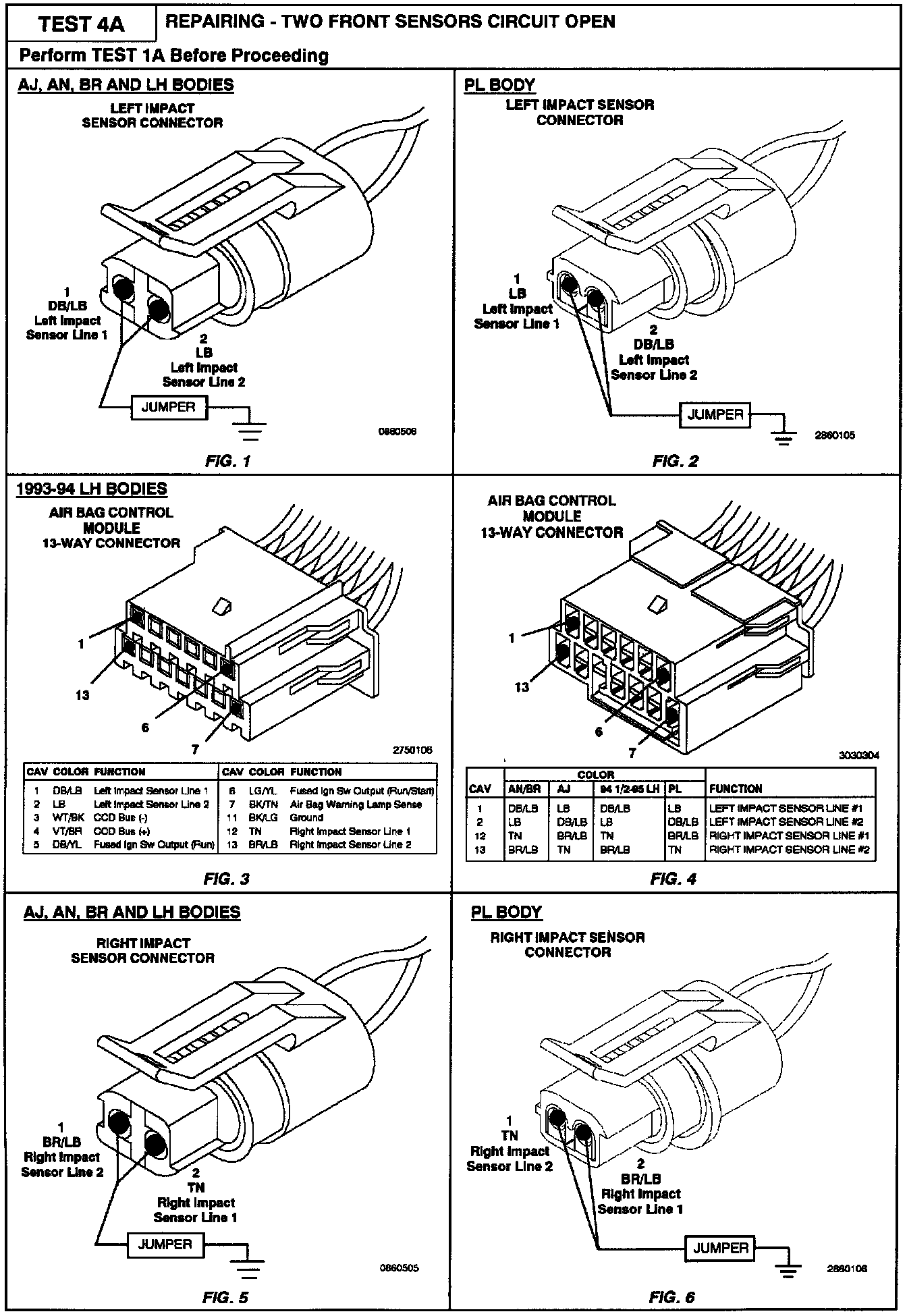

Related Images:
