Airbag System
>>
124A Front Sensor Circuit Shorted

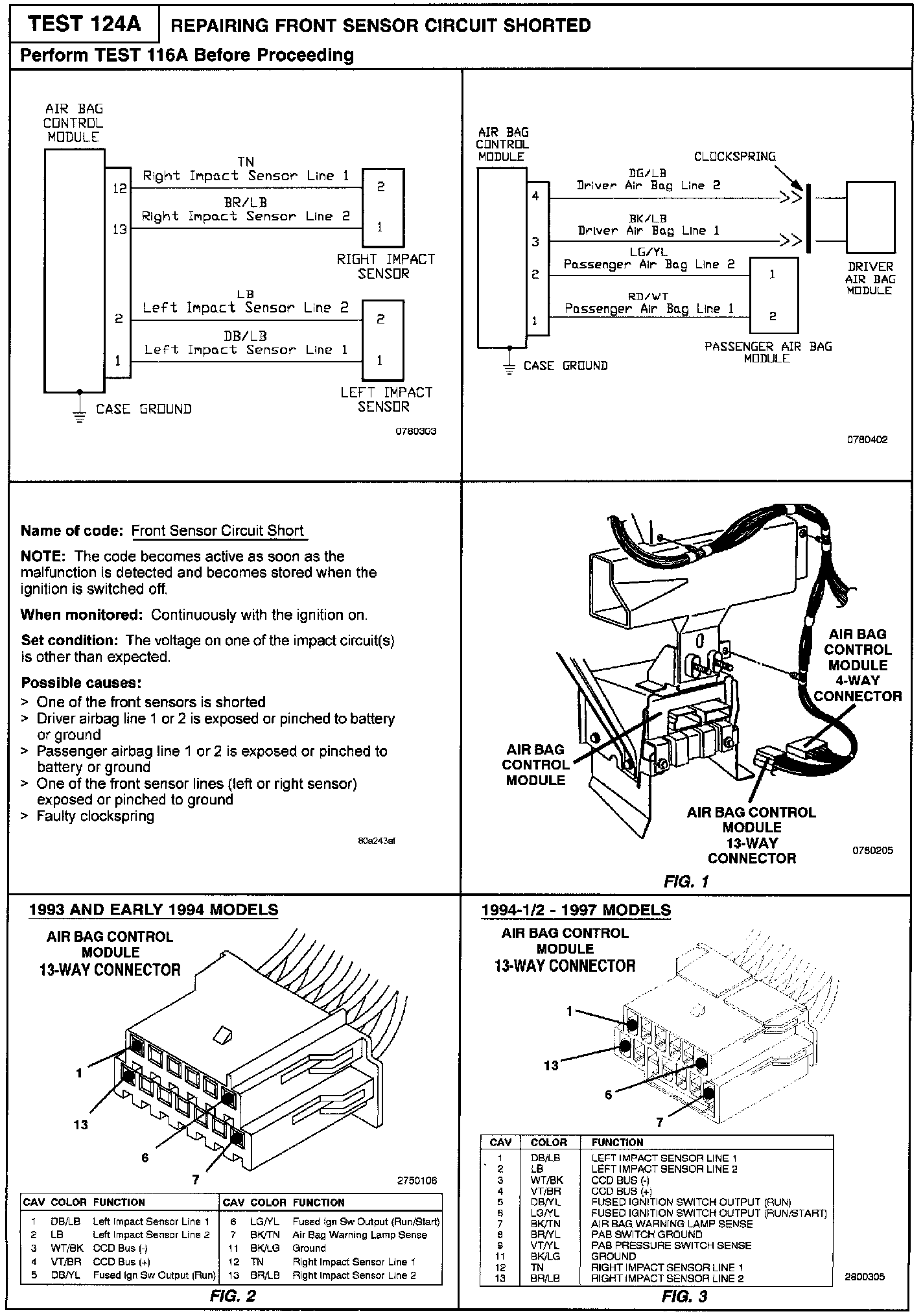

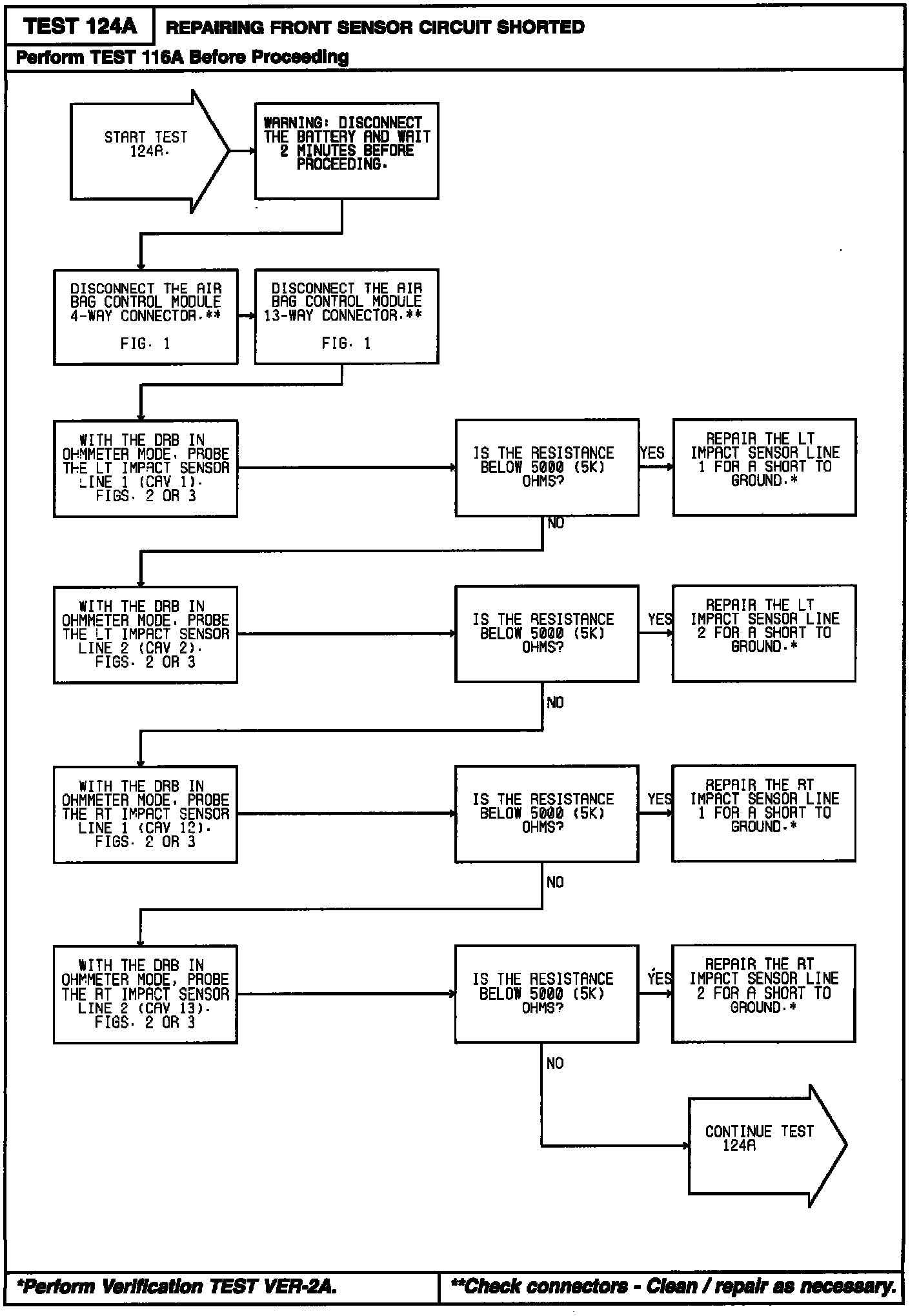

124A Front Sensor Circuit Shorted
Related Images:

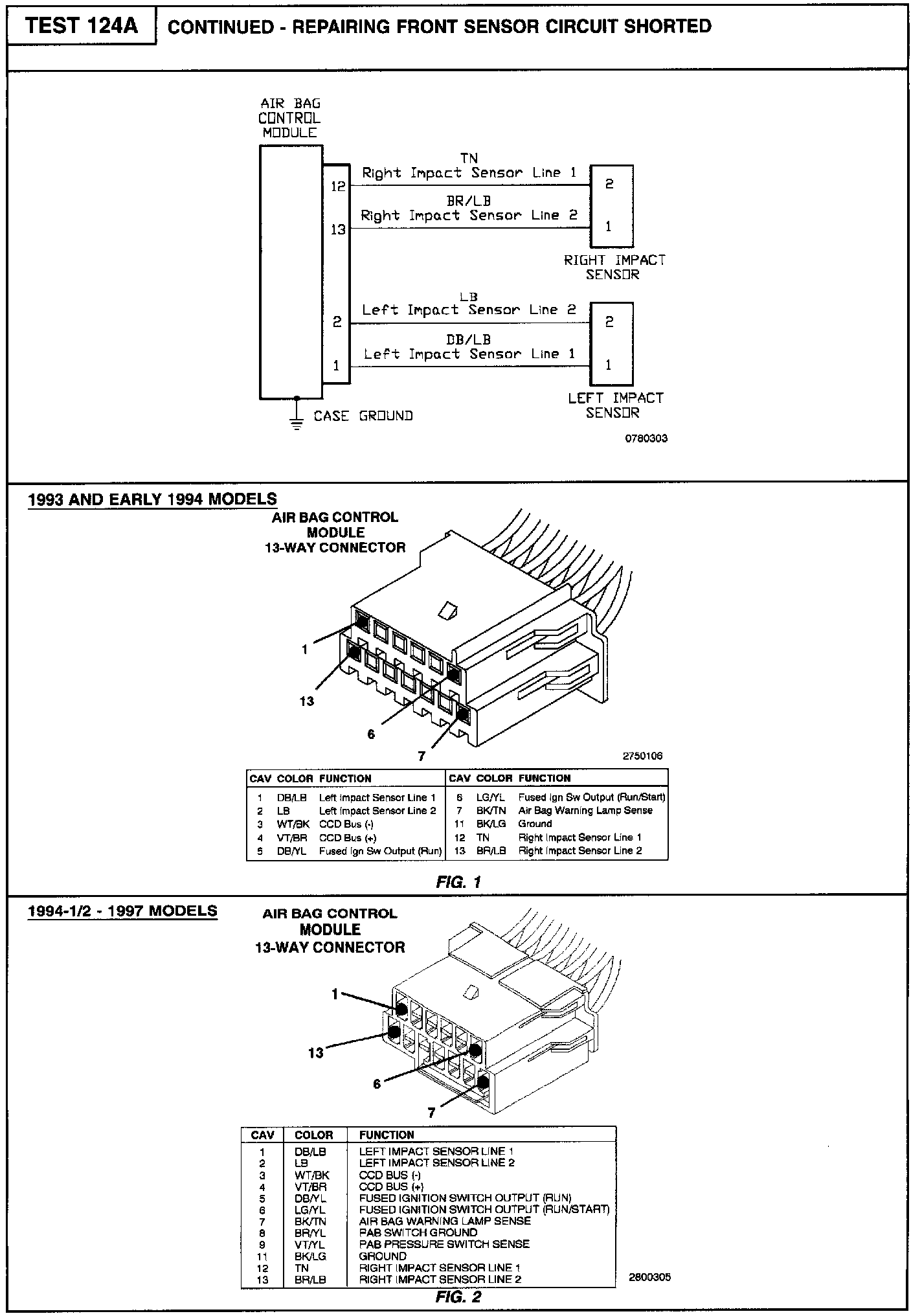

124A Part 1 Of 5:
Related Images:

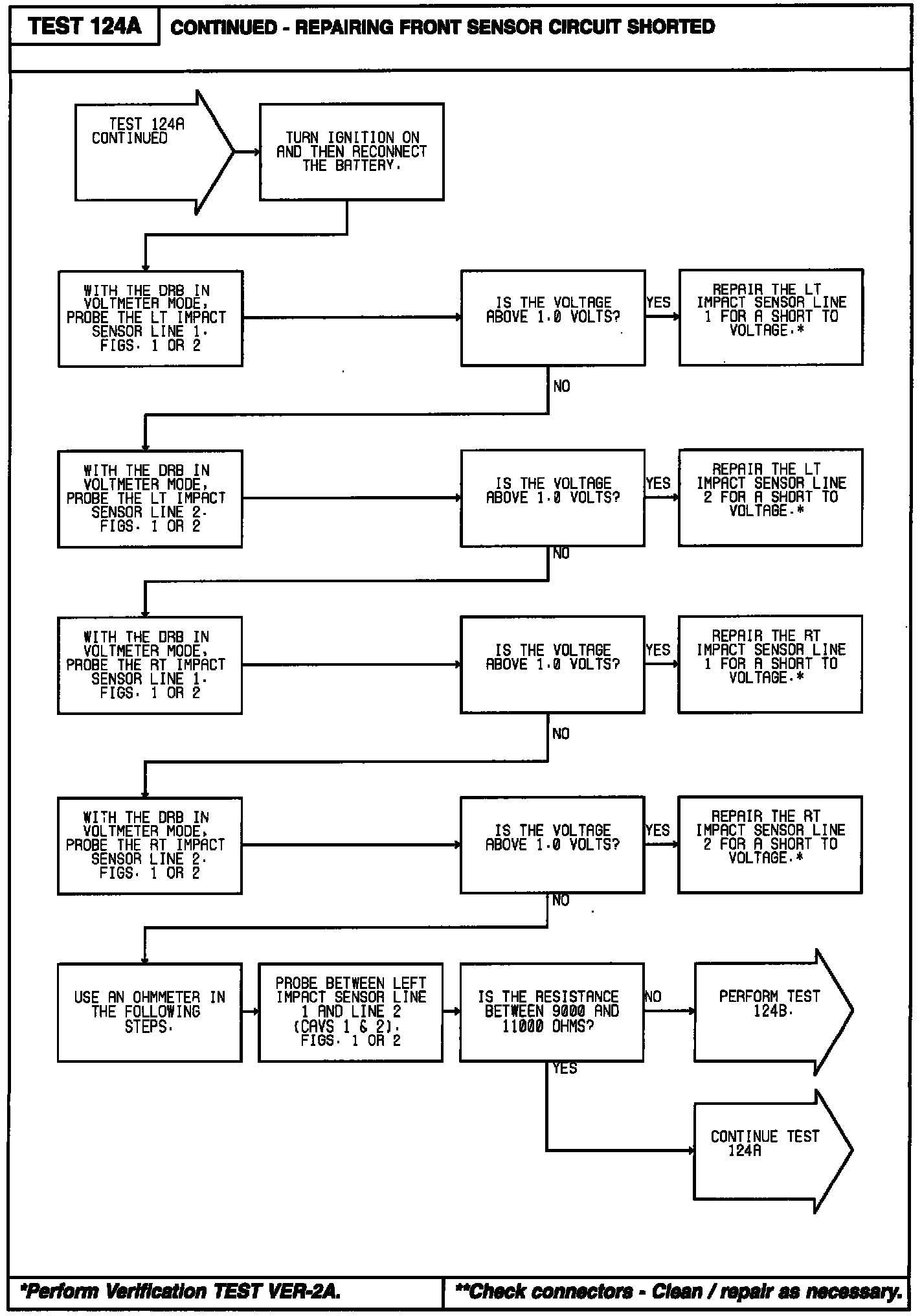

124A Part 2 Of 5:
Related Images:

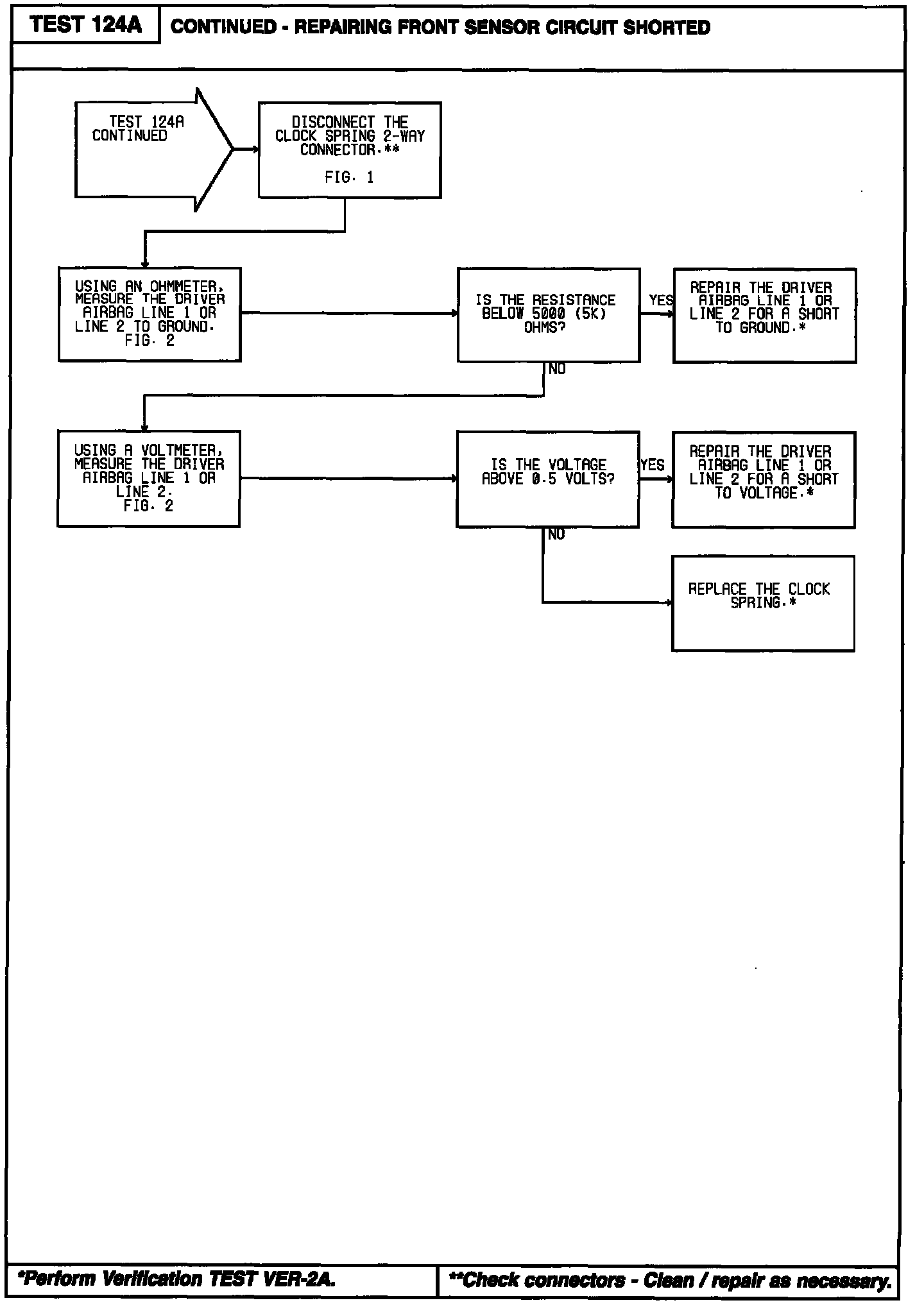

124A Part 3 Of 5:
Related Images:

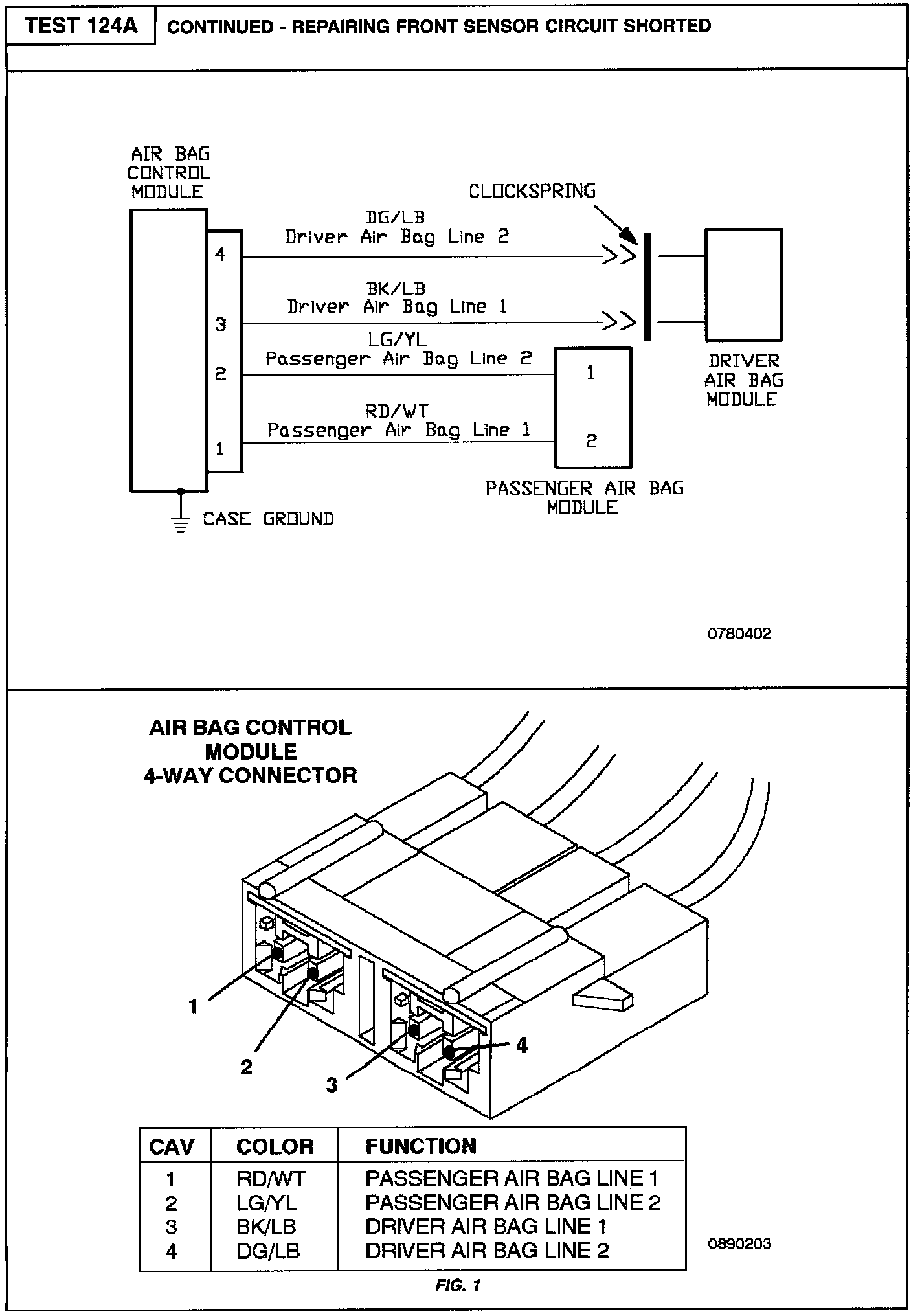

124A Part 4 Of 5:
Related Images:

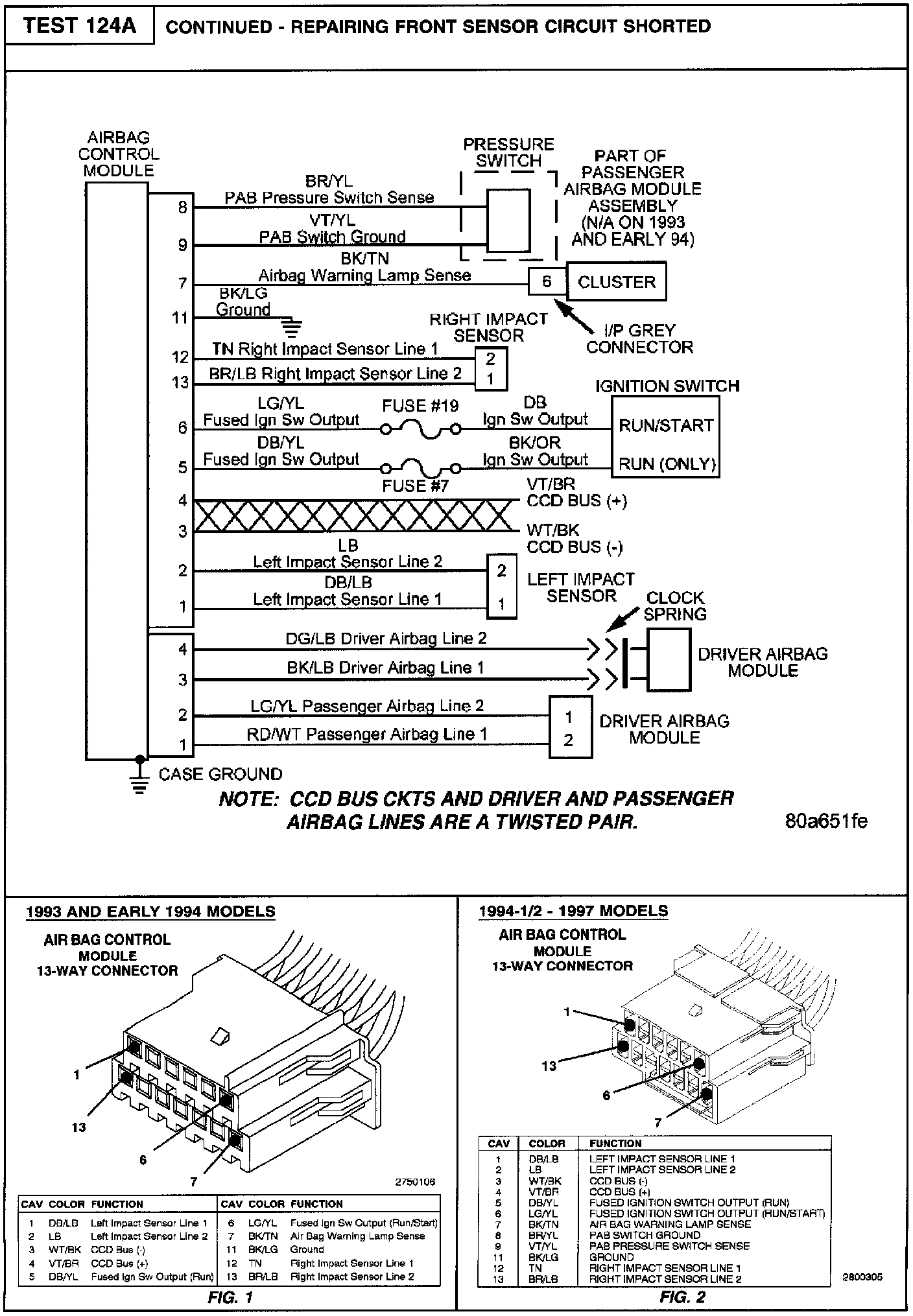

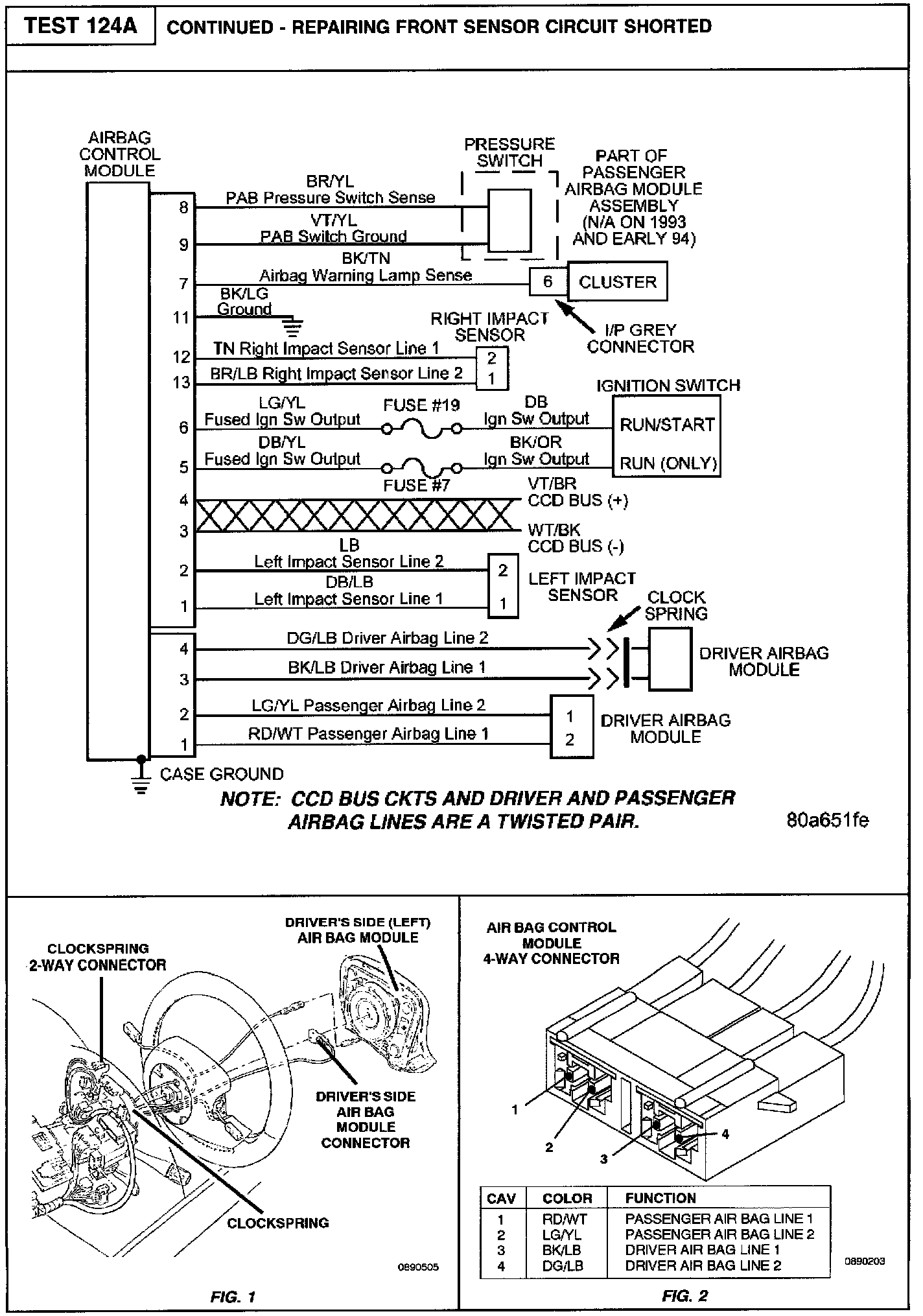

124A Part 5 Of 5:
