Rear Wiper and Washer

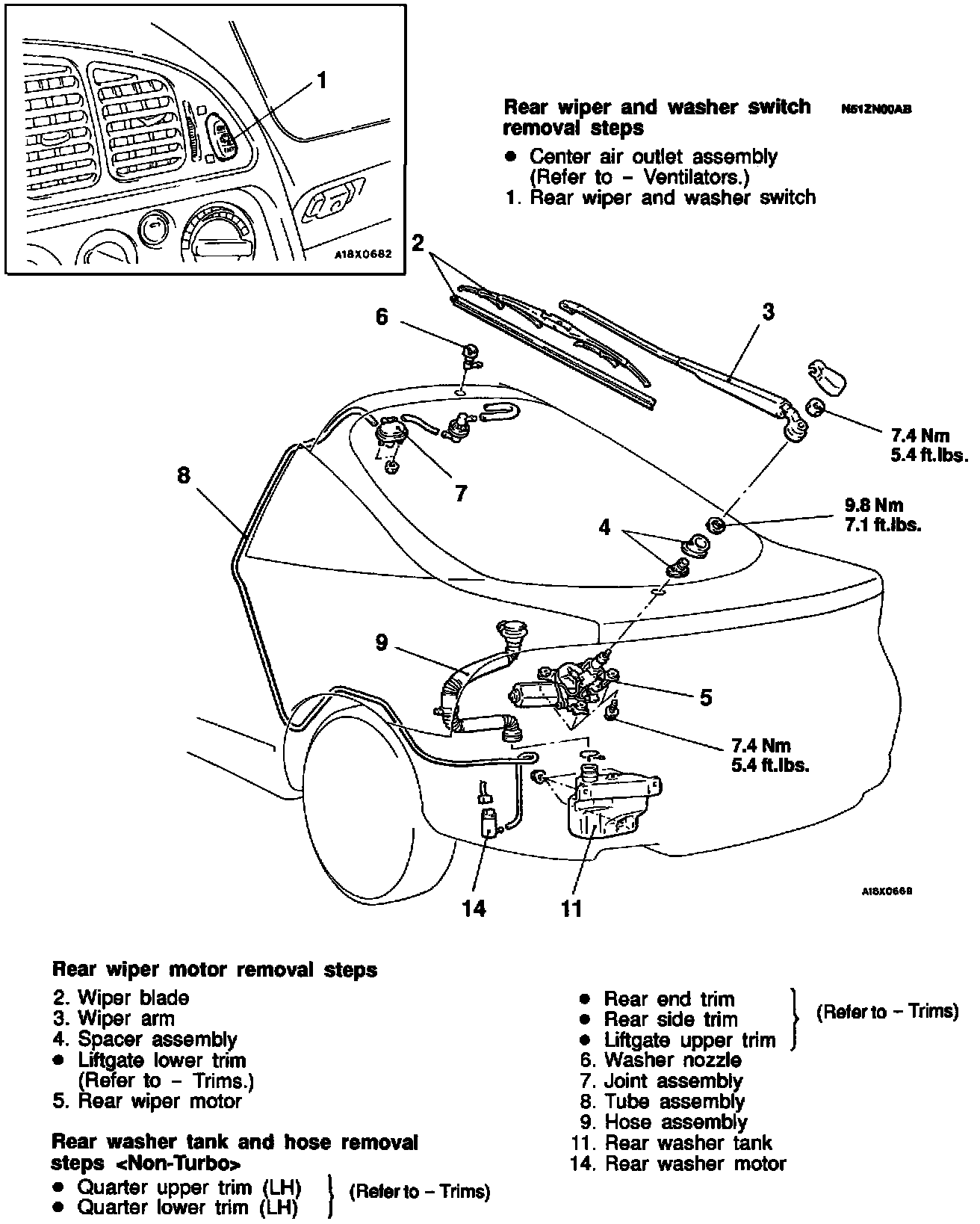

Rear Wiper And Washer - Removal And Installation:

REMOVE
Rear Wiper And Washer Switch
- Center air outlet assembly
1. Rear wiper and washer switch

Rear Wiper Motor
2. Wiper blade
3. Wiper arm
4. Spacer assembly
- Liftage lower trim
5. Rear wiper motor

Rear Washer Tank And Hose
- Quarter upper trim (LH)
- Quarter lower trim (LH)
- Rear end trim
- Rear side trim
- Liftage upper trim
6. Washer nozzle
7. Joint assembly
8. Tube assembly
9. Hose assembly
11. Rear washer tank
14. Rear washer motor

INSTALL
Rear Wiper And Washer Switch
1. Rear wiper and washer switch
- Center air outlet assembly

Rear Wiper Motor
2. Rear wiper motor
- Liftage lower trim
3. Spacer assembly
4. Wiper arm
5. Wiper blade

Rear Washer Tank And Hose
6. Rear washer motor
7. Rear washer tank
8. Hose assembly
9. Tube assembly
11. Joint assembly
14. Washer nozzle
- Liftage upper trim
- Rear side trim
- Rear end trim
- Quarter lower trim (LH)
- Quarter upper trim (LH)
