Interior - Power Seat Wiring Diagram Revisions

NUMBER: 26-08-96D

GROUP: Miscellaneous

DATE: August, 1996

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1995 Talon - Publication Number 81-270-5501

DESCRIPTION OF CHANGES

Revisions to the power seat wiring diagram.

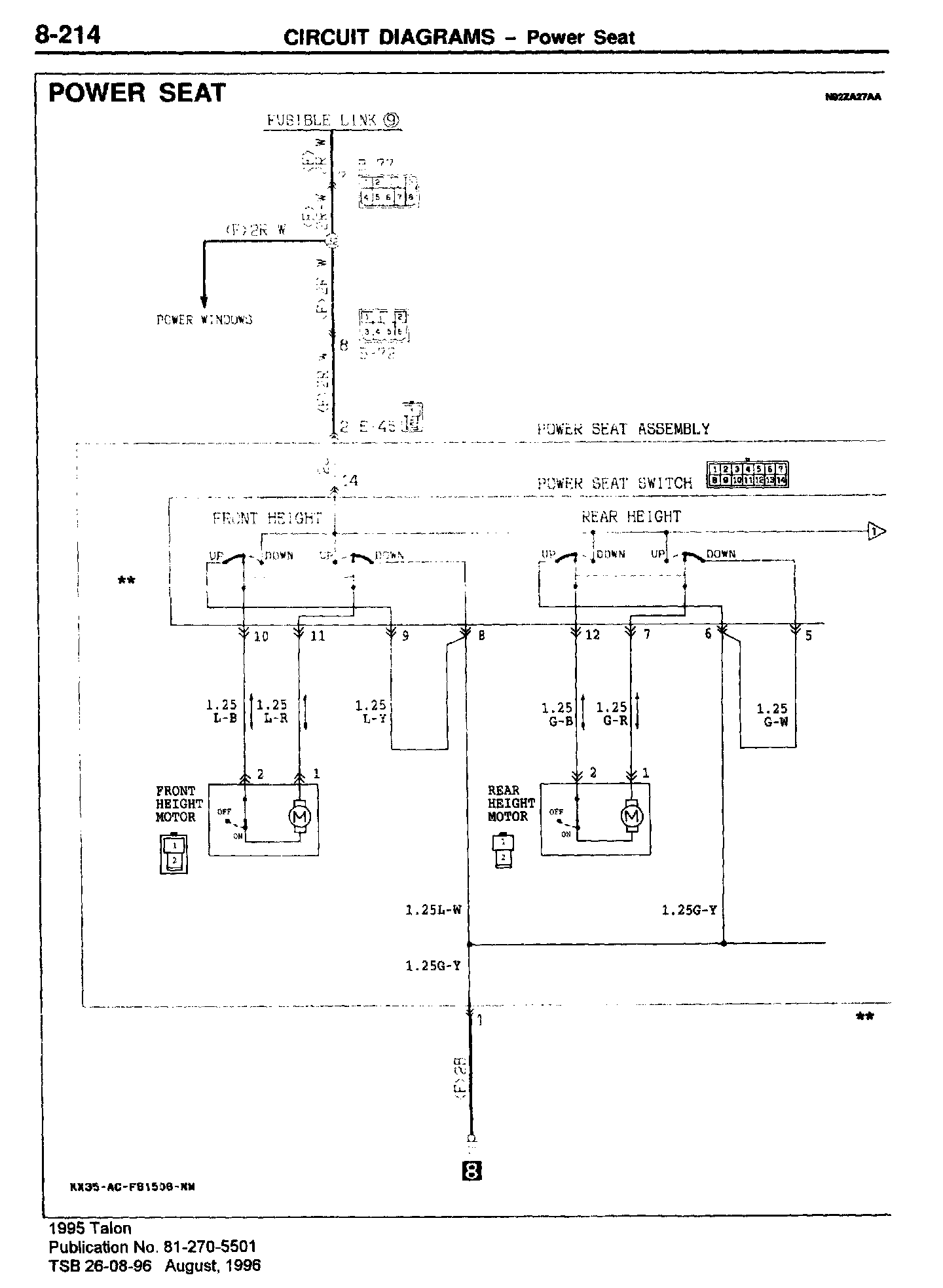

8-214

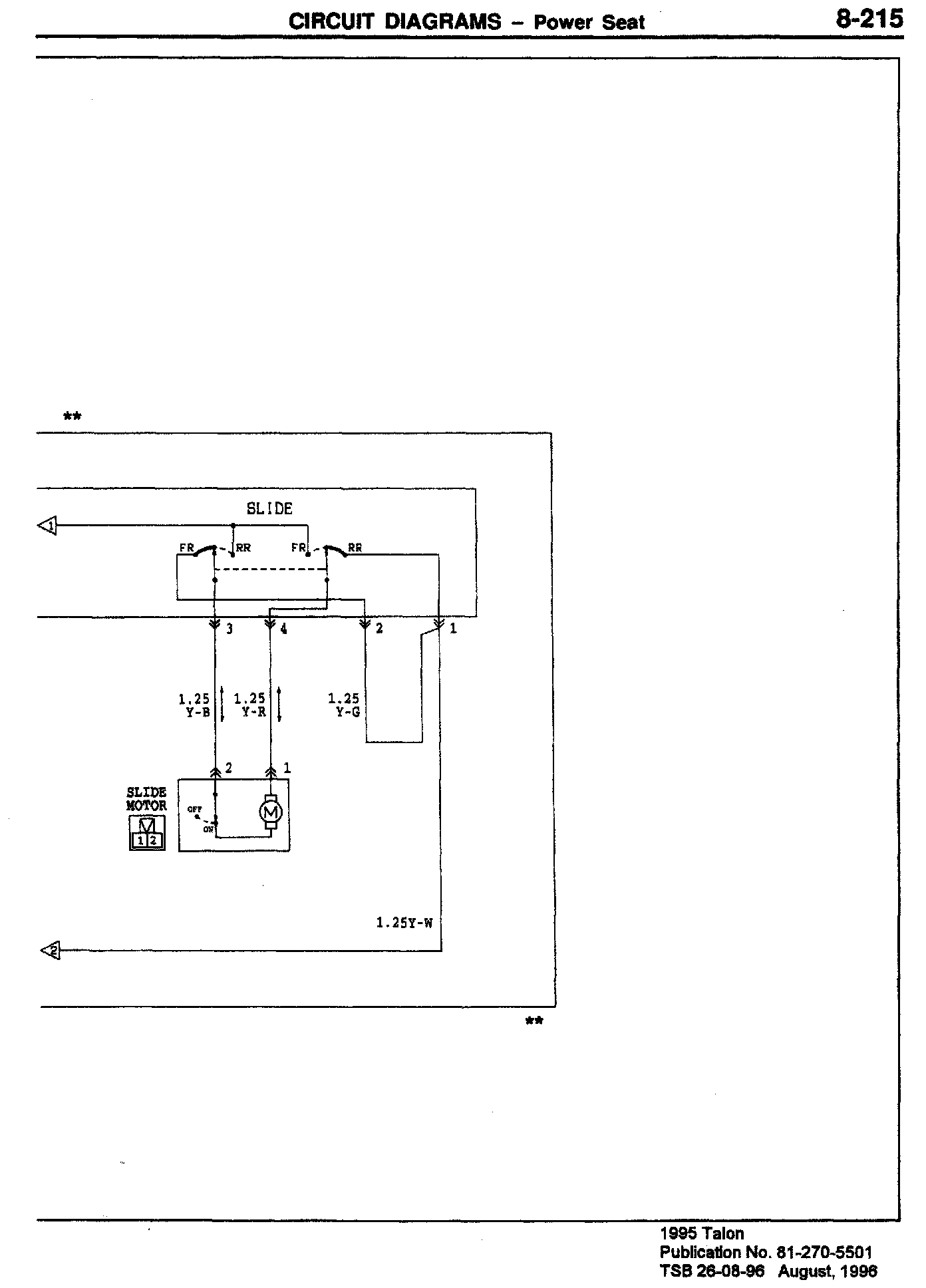

8-215
