Alternator: Service and Repair

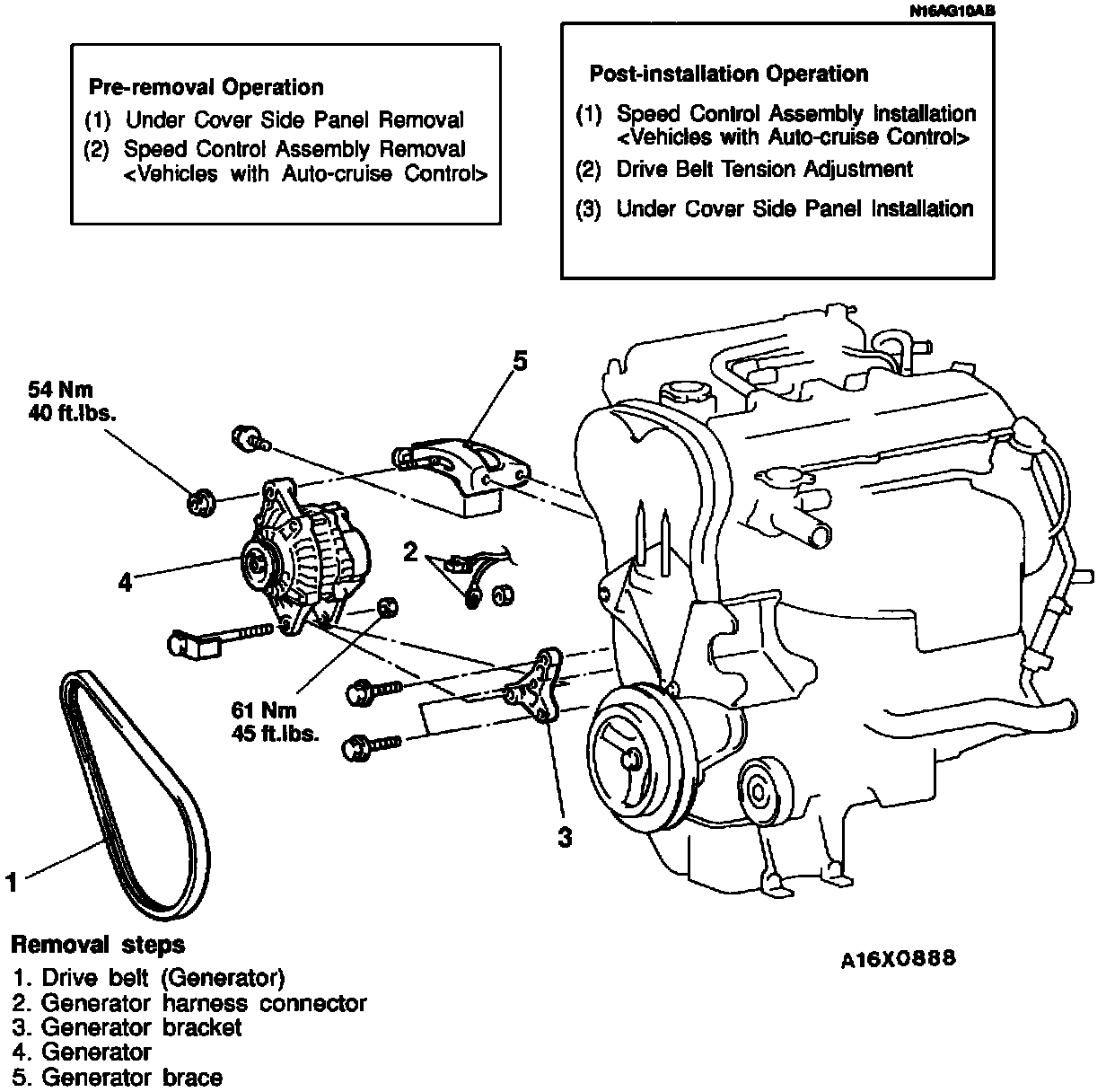

Generator - Removal And Installation:

Pre-Removal
1. Under cover side panel
2. Speed Control Assembly (Vehicles with Auto-cruise control)

REMOVE
1. Drive belt (Generator)
2. Generator harness connector
3. Generator bracket
4. Generator
5. Generator brace.

INSTALL
1. Generator brace.
2. Generator.
3. Generator bracket
4. Generator harness connector.
5. Drive belt (Generator)

Post-Installation
1. Speed Control Assembly (Vehicles with Auto-cruise control)
2. Drive Belt Tension Adjustment
3. Under cover side panel
