Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

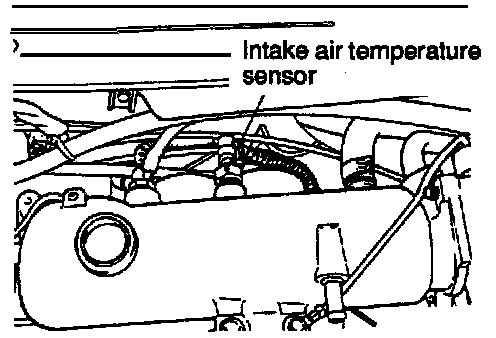

1. Disconnect the intake air temperature sensor connector.
2. Measure the resistance between the sensor terminals.

Temperature (°C (°F)] Resistance (K ohms)

25 (77) 9-11
100 (212) 0.6-0.8
