Ignition Coil Pack

Ignition Coil:

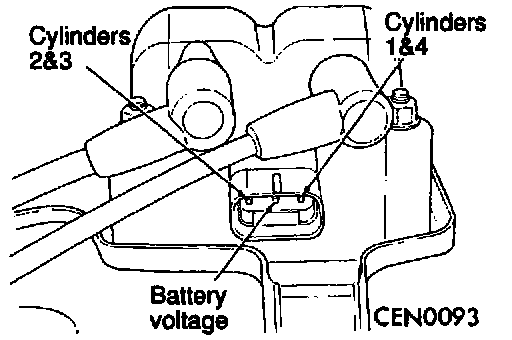

Coil one fires cylinders 1 and 4. Coil two fires cylinders 2 and 3. Each coil tower is labeled with the number of the corresponding cylinder.
