Throttle Cable/Linkage: Service and Repair

ACCELERATOR CABLE REMOVAL STEPS
1. Clip
2. Adjusting bolts
3. Accelerator cable

ACCELERATOR PEDAL REMOVAL STEPS
4. Accelerator cable connection
5. Cotter pin
6. Washer
7. Accelerator pedal pin
8. Bushing
9. Spring
10. Accelerator pedal arm
11. Accelerator pedal bracket
12. Accelerator pedal stopper

GREASE POINTS
Use Mopar Multi-Mileage Lubricant Part Number 2525035 or equivalent on the following points:

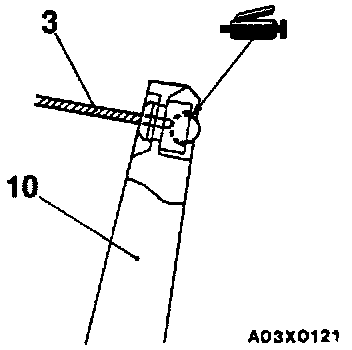

^ Accelerator Cable

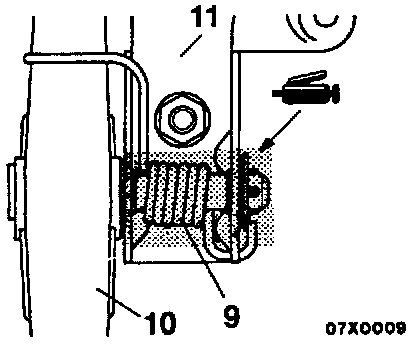

^ Accelerator pedal pivot pin and spring

POST INSTALLATION OPERATION
Accelerator Cable Adjustment. Refer to Adjustments. Adjustments
