Positive Crankcase Ventilation: Testing and Inspection

Testing PCV Operation:

1. Remove the rocker cover side ventilation hose from the positive crankcase ventilation valve.
2. Start the engine and run at idle.

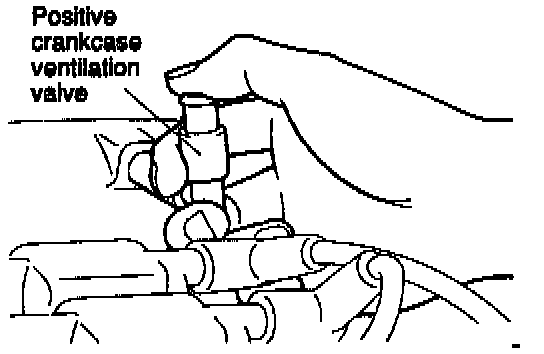

3. Place a finger at the opening of the positive crankcase ventilation valve and confirm that vacuum of the intake manifold is felt.

NOTE: At this moment, the plunger in the positive crankcase ventilation valve moves forward and backward.

4. If vacuum is not felt, replace it.
