Idle Speed/Throttle Actuator - Electronic: Diagrams

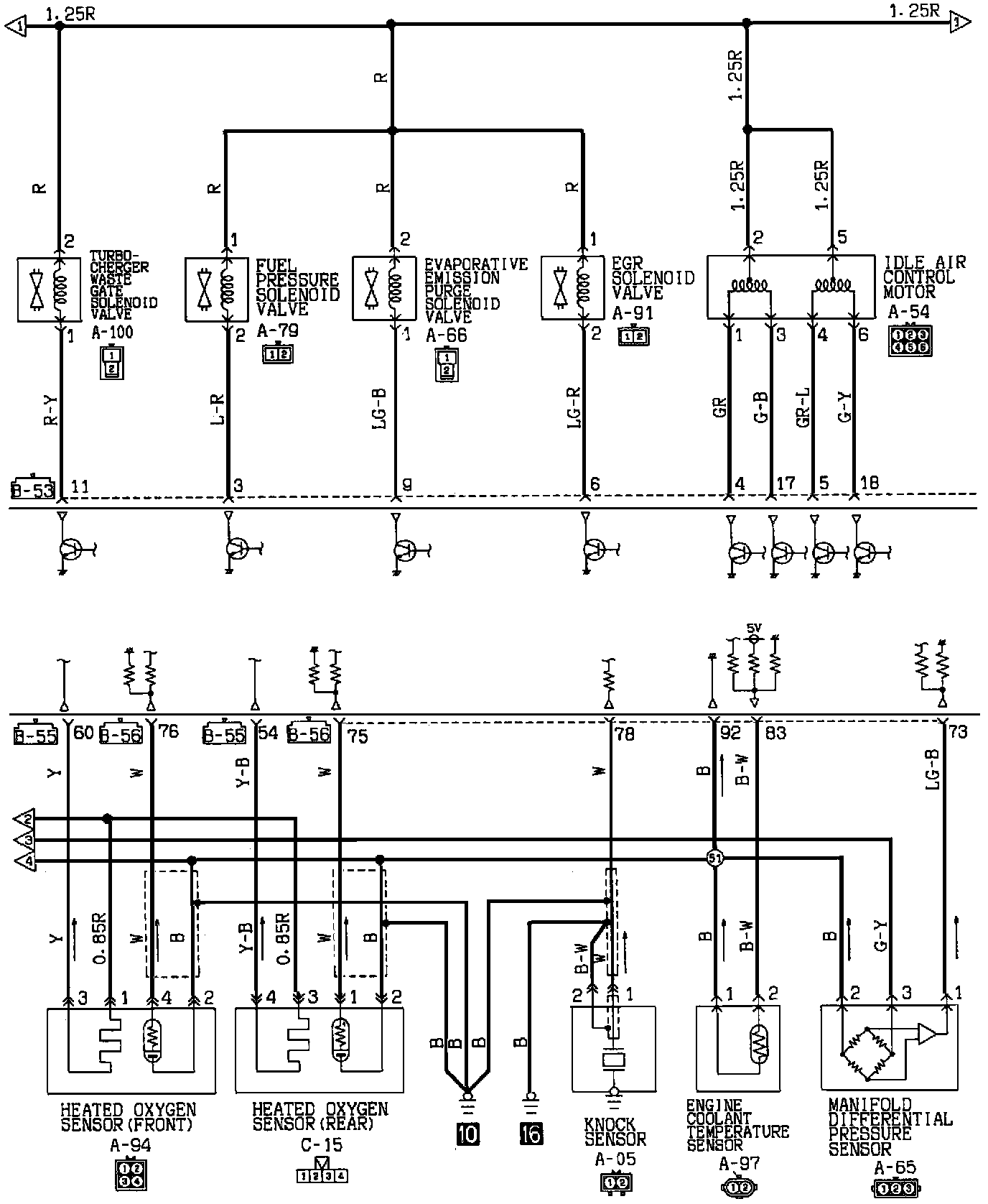

MFI System (Part 6 Of 8):
Idle Air connector view and pin out, is located on electrical diagram.
