Interior/SRS/Steering - Service Manual Revisions

NUMBER: 26-08-96E

GROUP: Miscellaneous

DATE: August, 1996

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1995 Talon - Publication Number 81-270-5500

DESCRIPTION OF CHANGES

Revisions to the power steering system graphics.

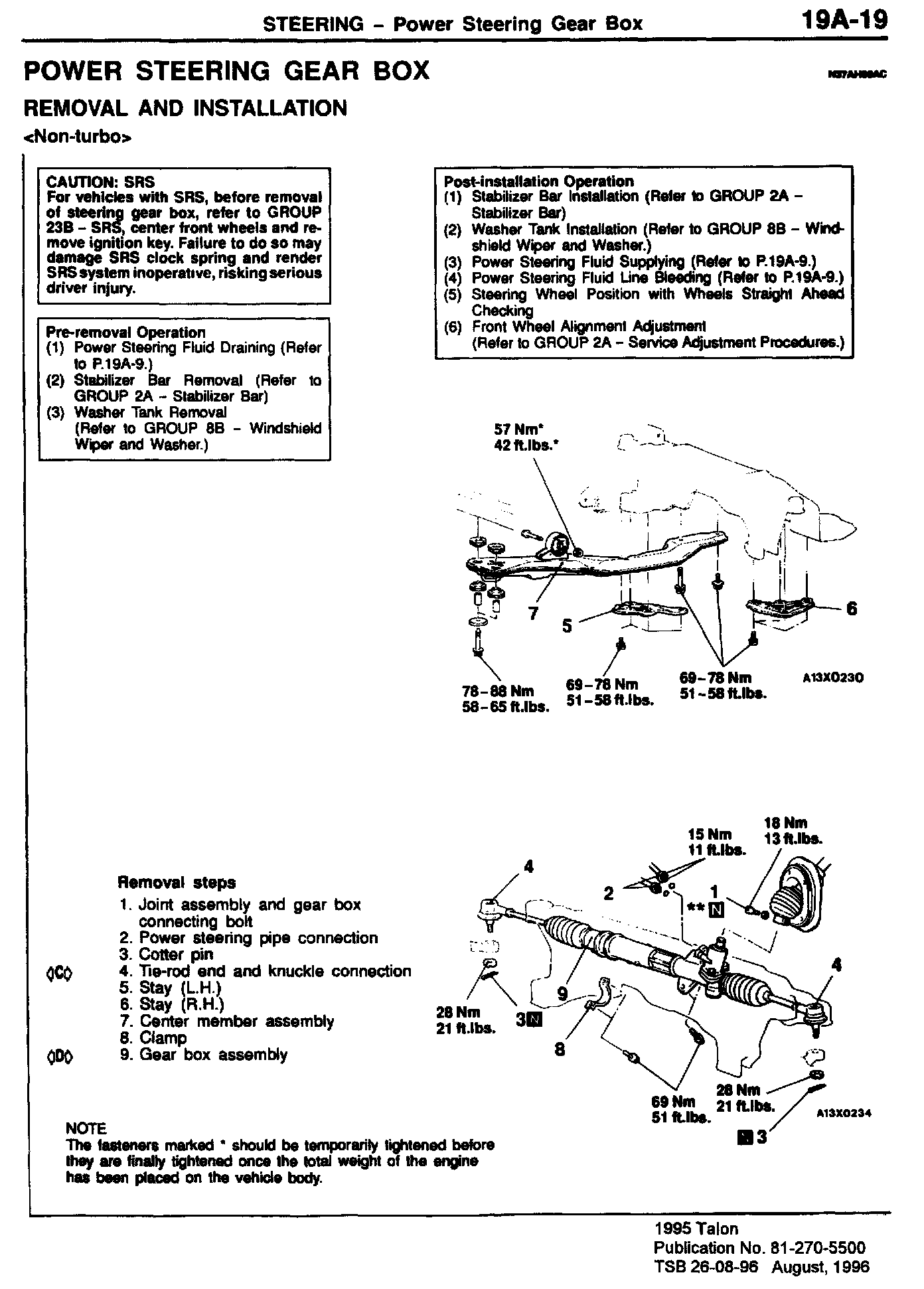

19A-19

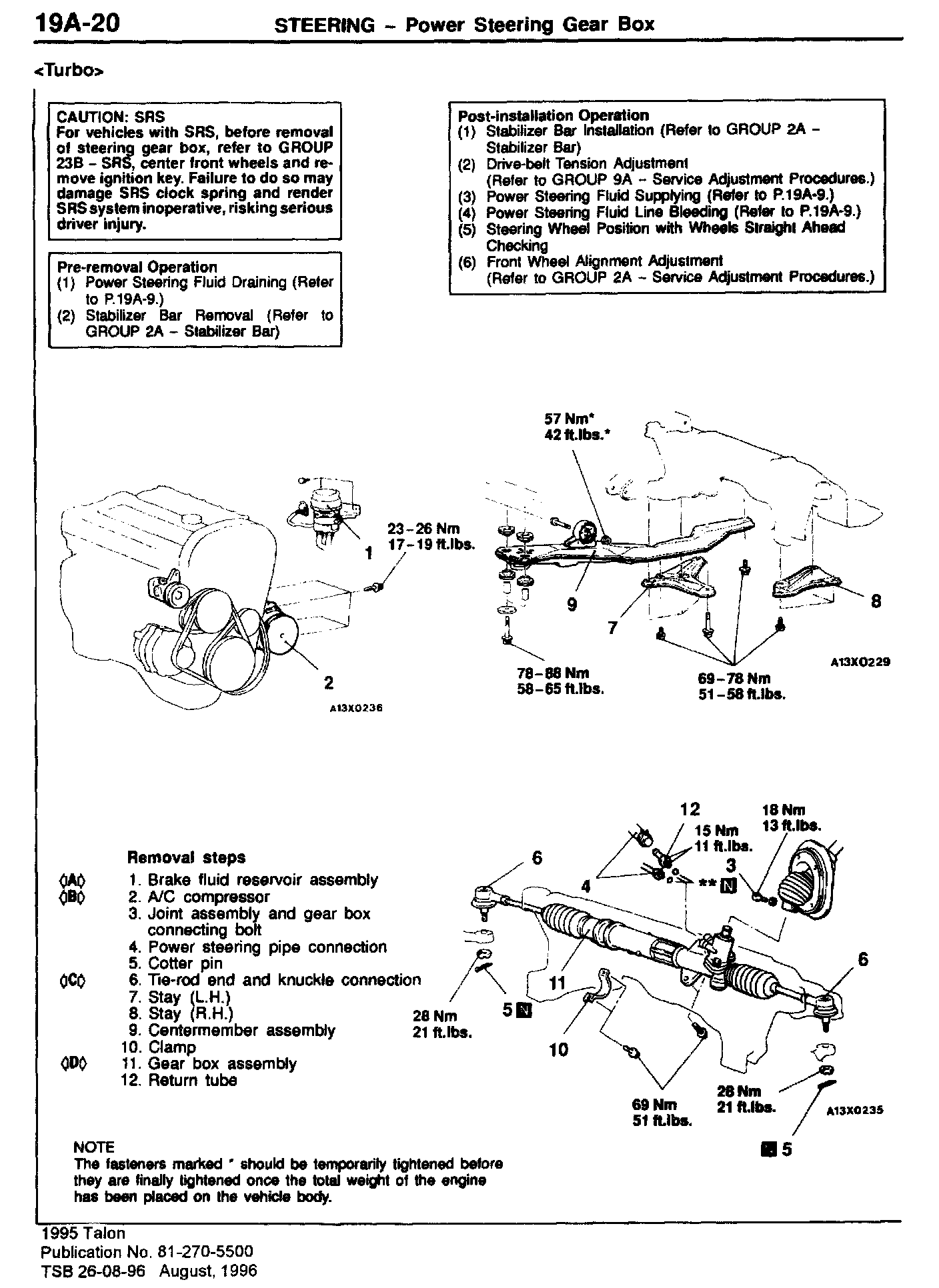

19A-20





19A-33

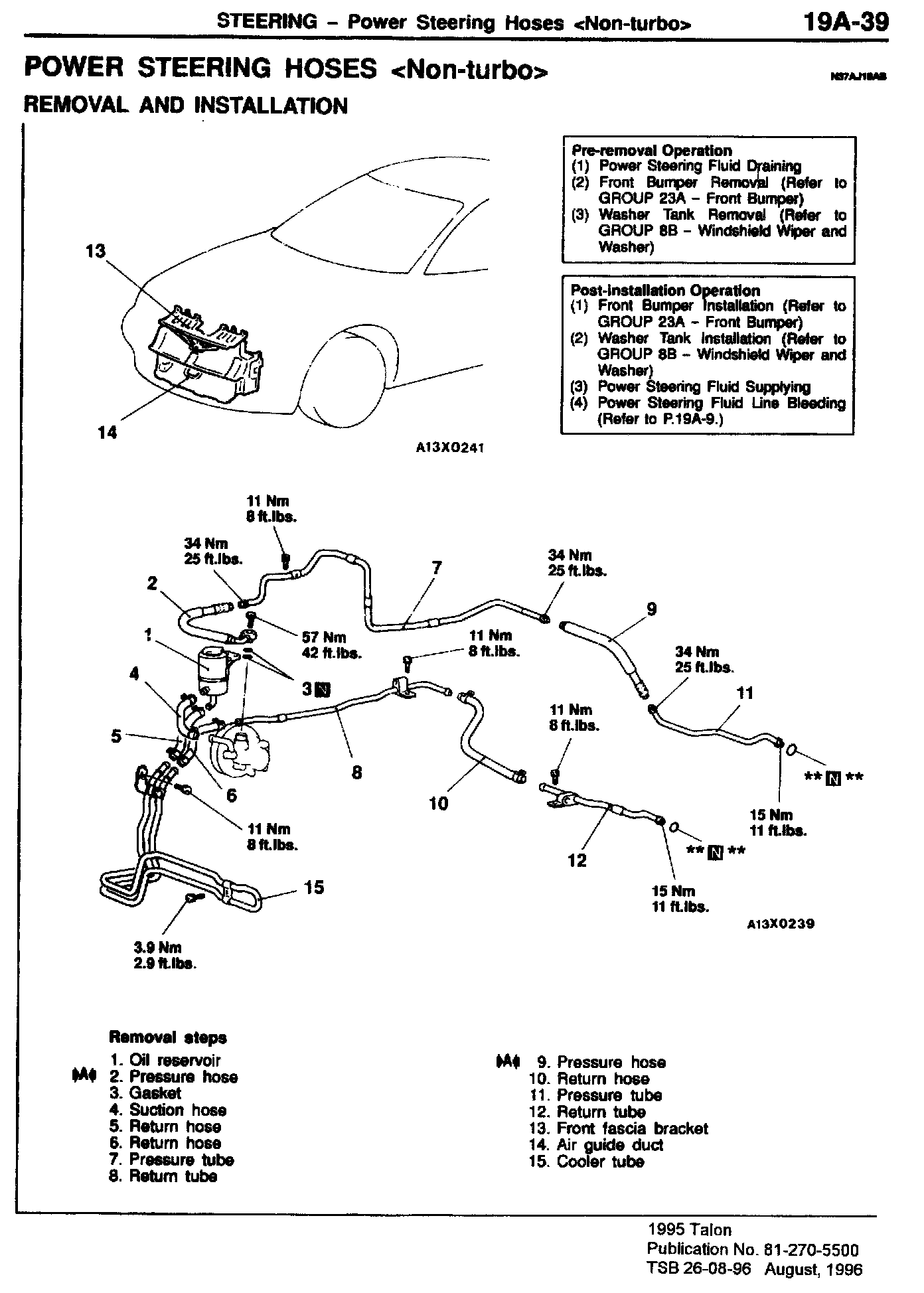

19A-39

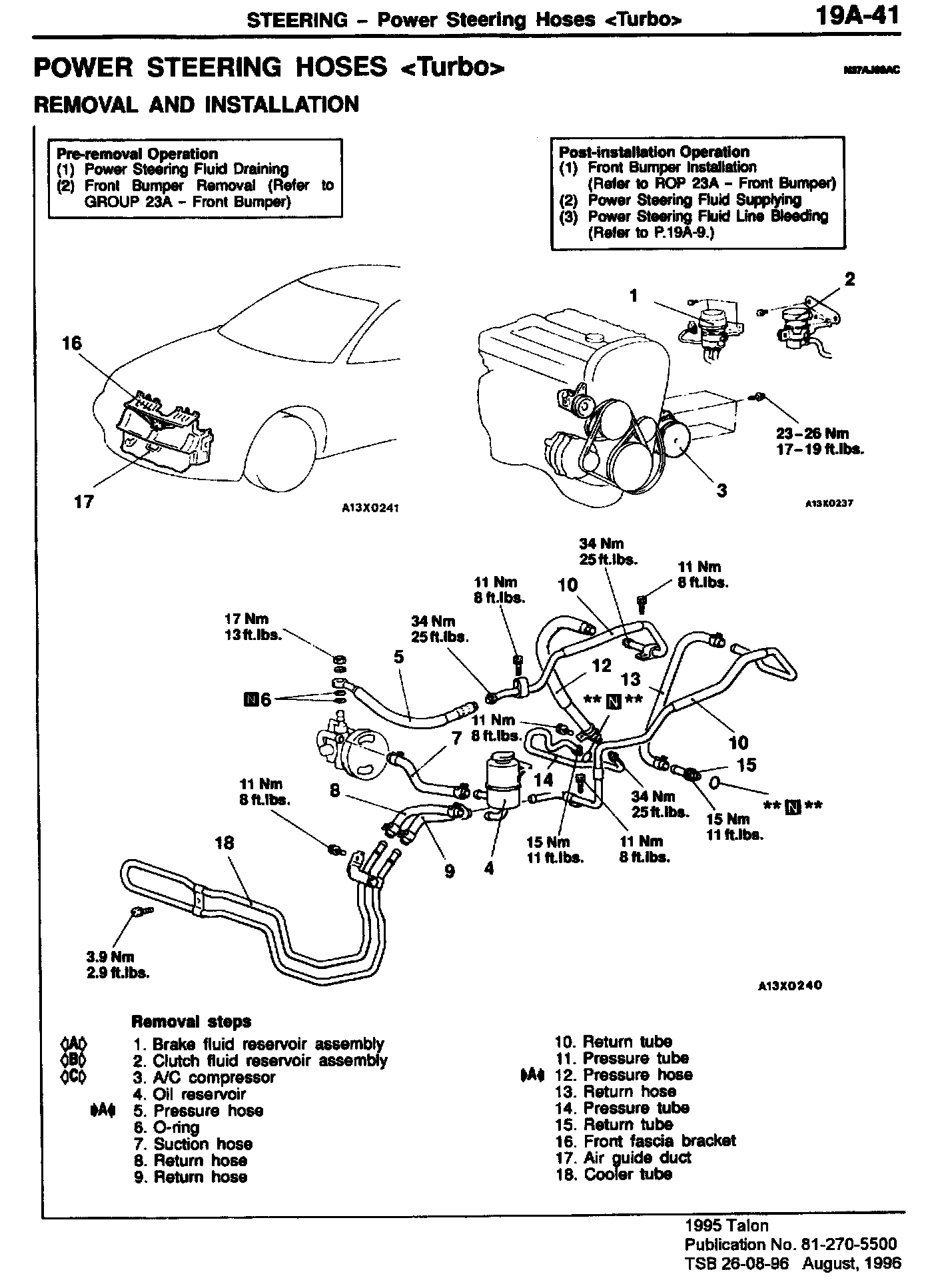

19A-41

Revisions the power seat diagnostic procedures.

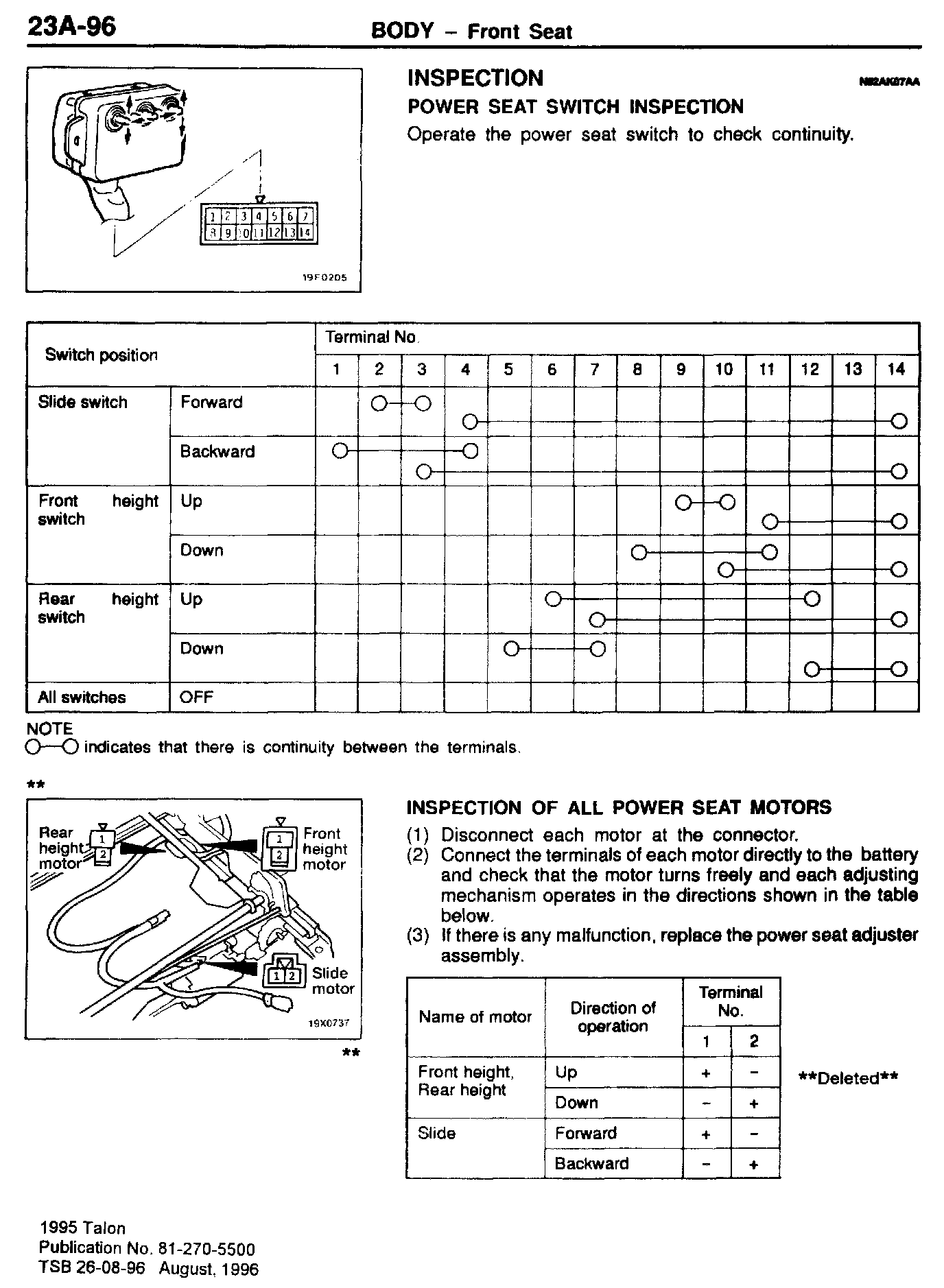

23A-96

Revisions to the SRS system wiring pin locations.

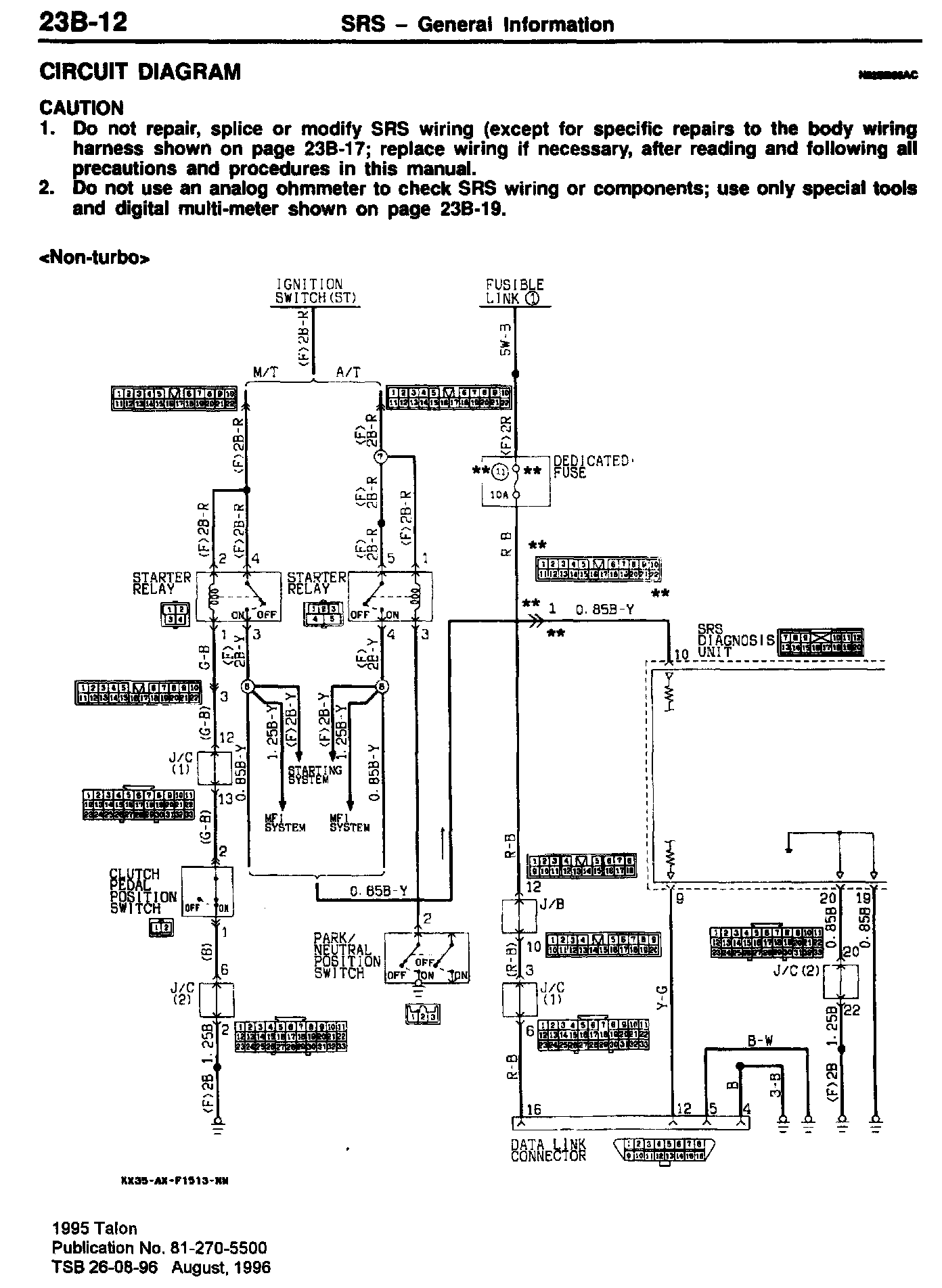

23B-12

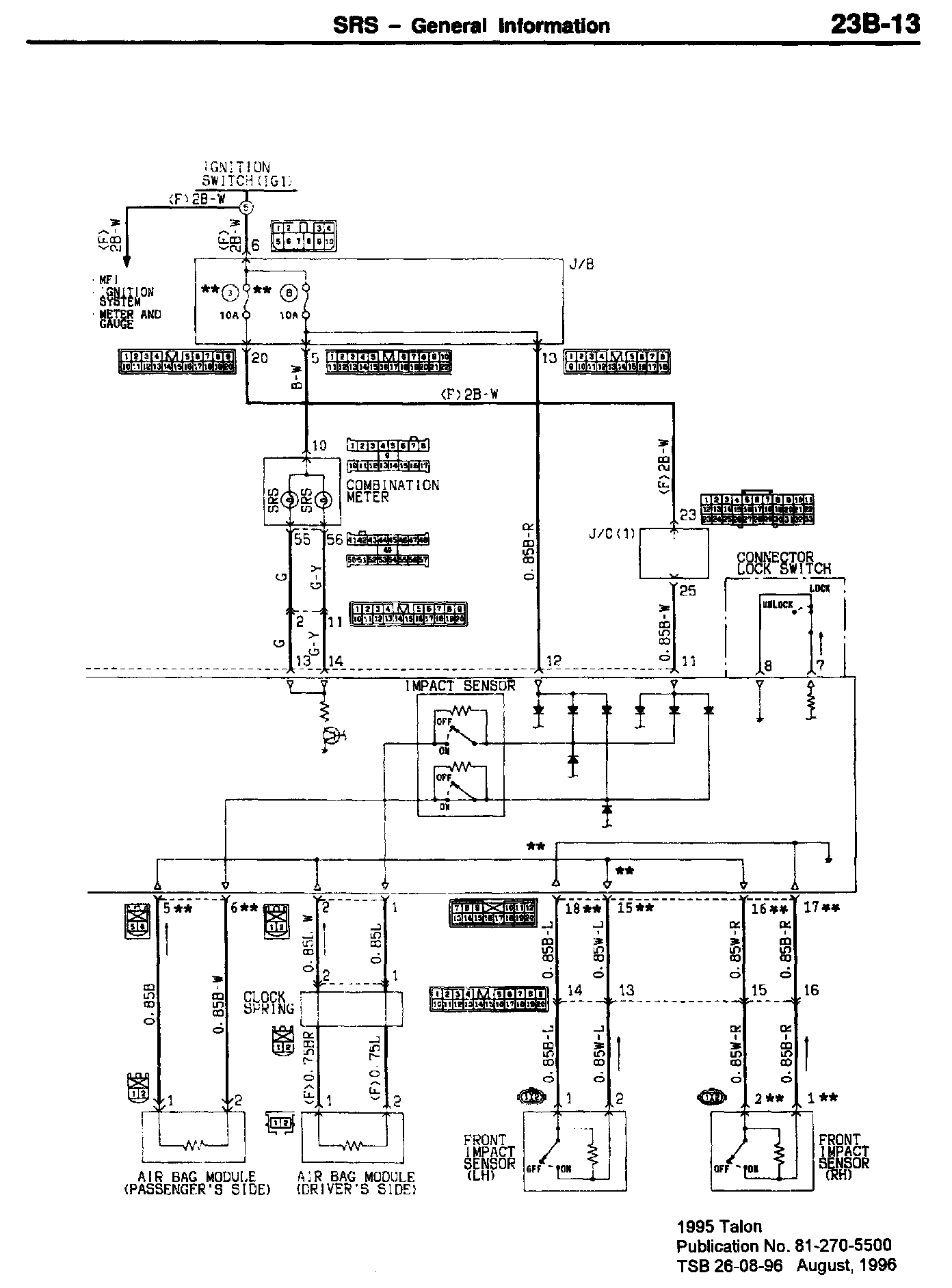

23B-13





23B-14

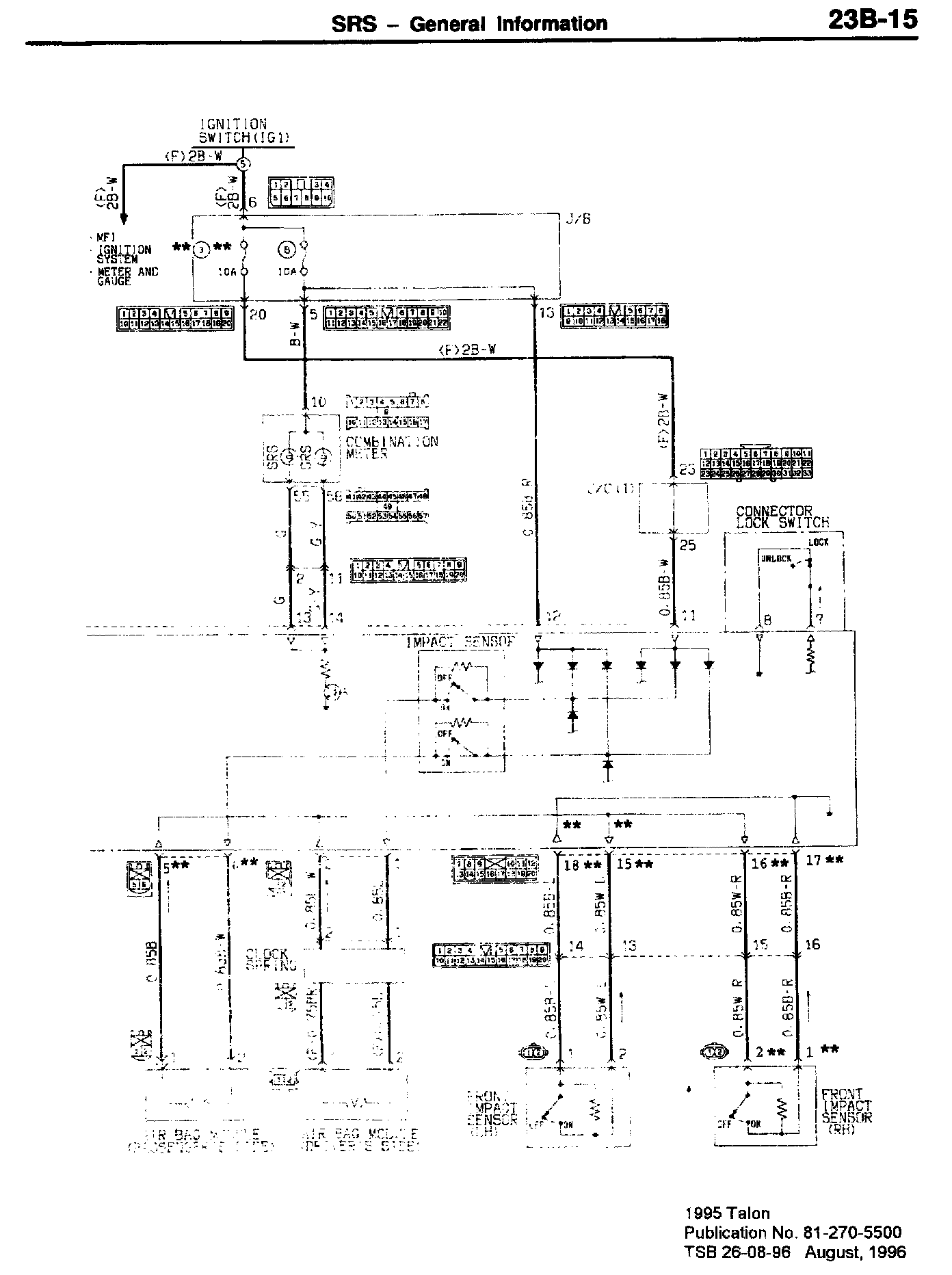

23B-15

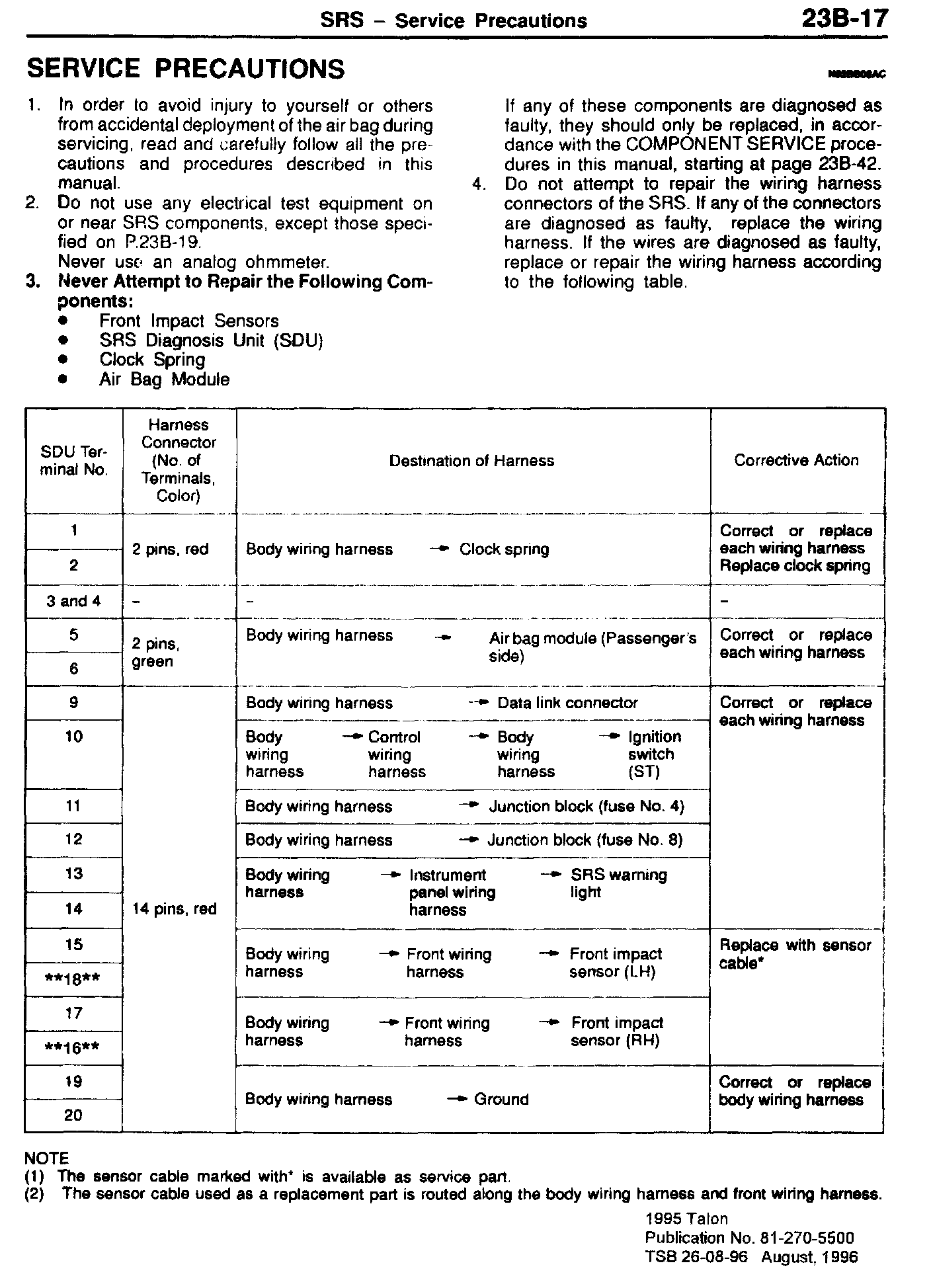

23B-17
