NTC-12A Checking the EGR System
NTC-12A Checking the EGR System

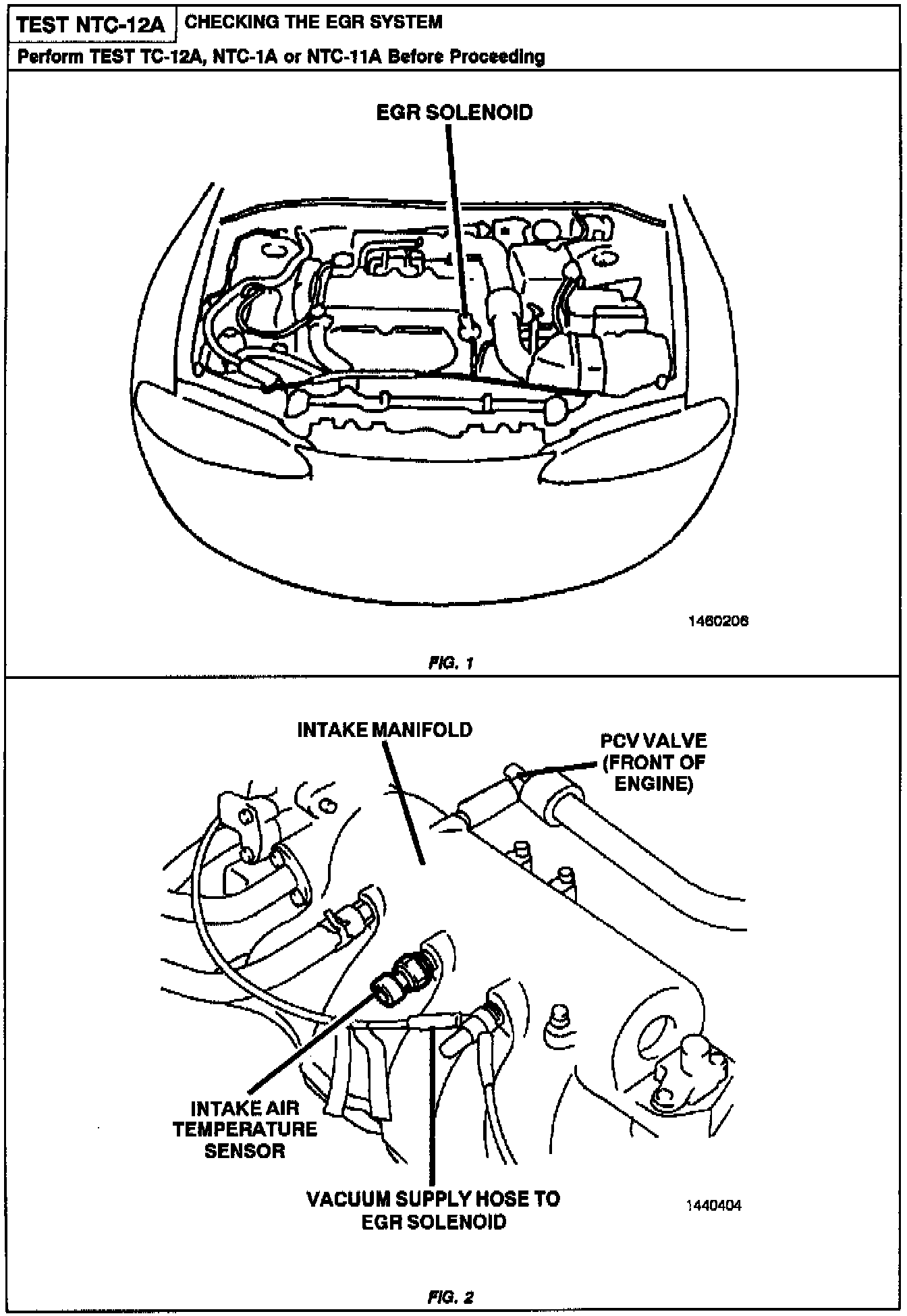

Related Images:

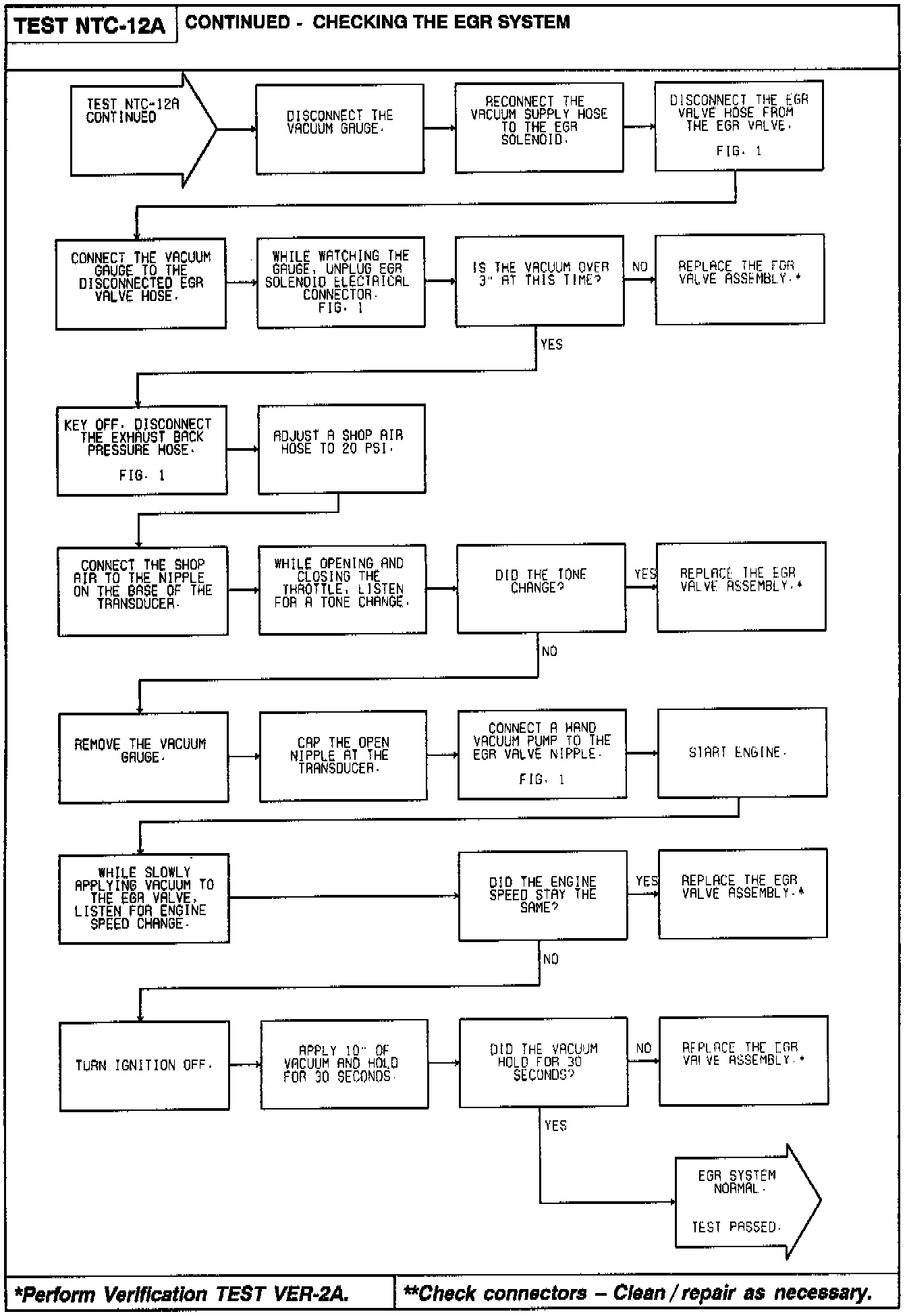

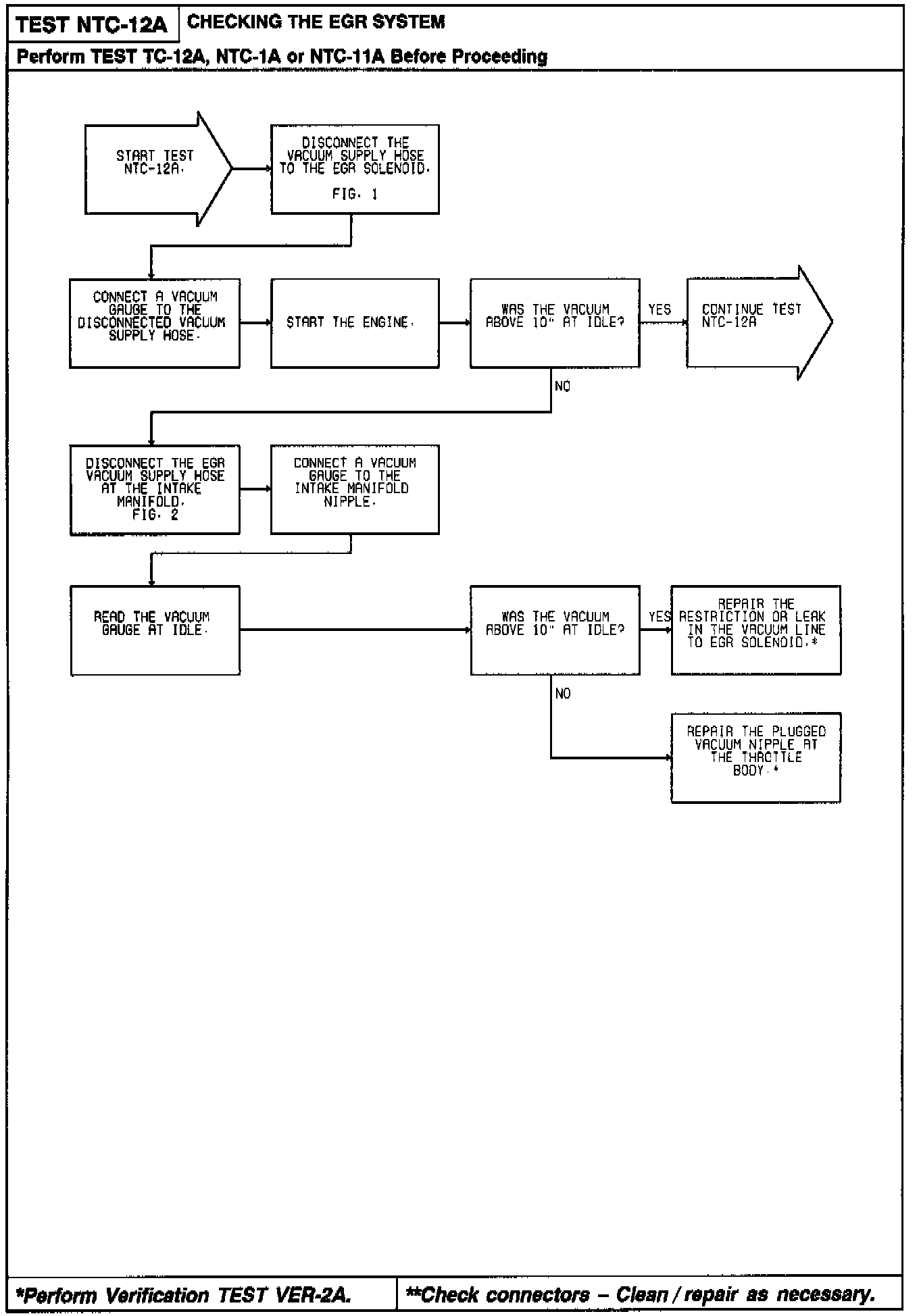

Diagnostic Chart:
Related Images:
Diagnostic Chart:
