Home >> Eagle >> 1995 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> System Components

System Components





Index





Close-up views (A - J)





Close-up views (K - T)

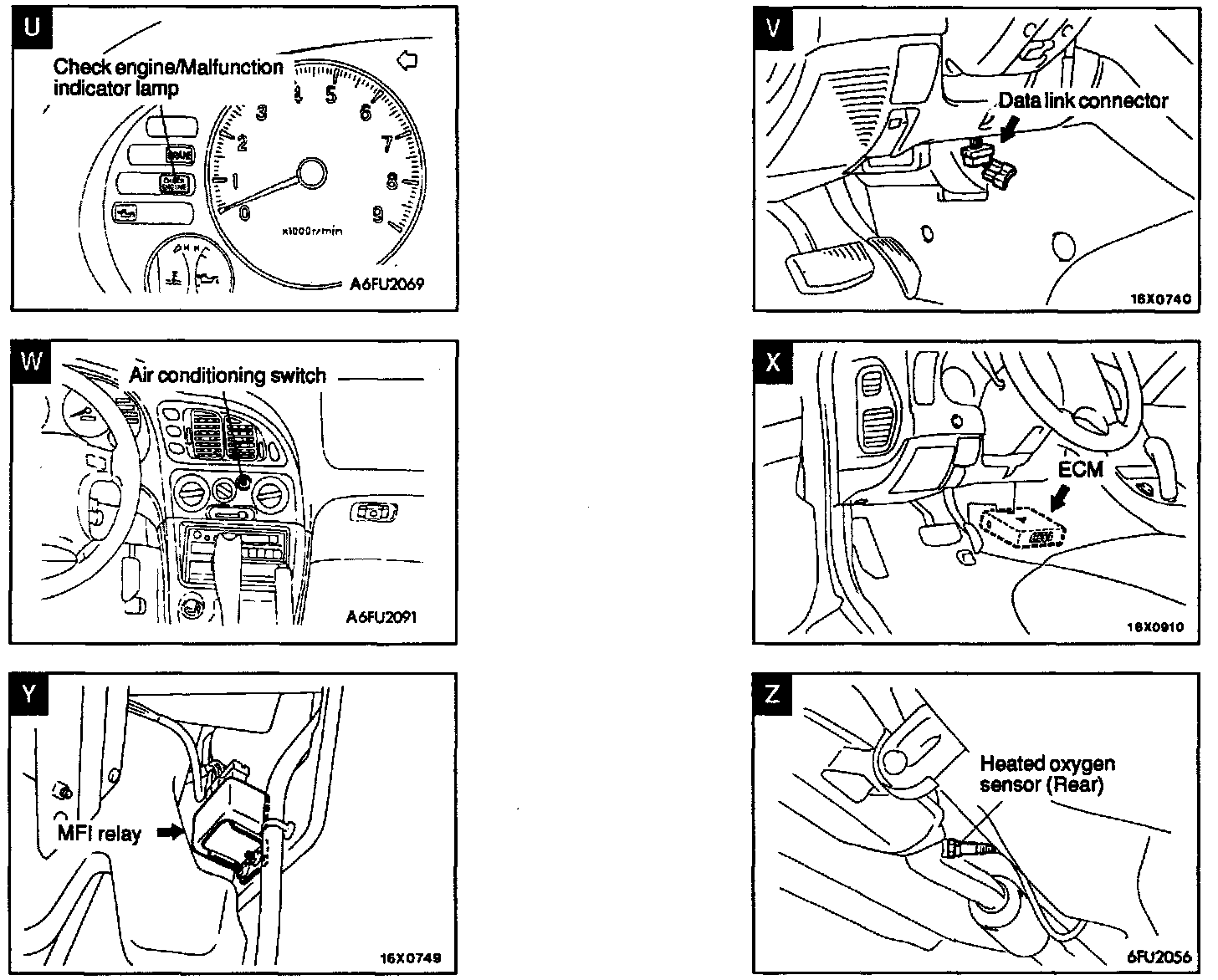

Close-up views (U - Z)
