Idle Up Circuit Diode

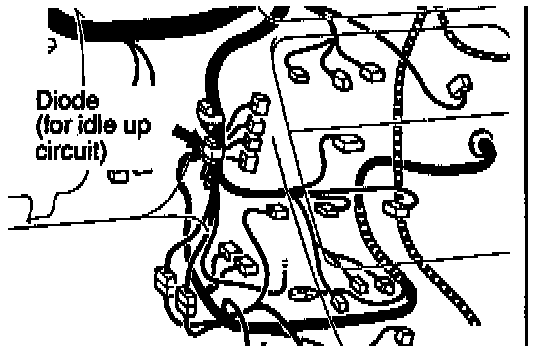

Diode Location:





The Idle Up Circuit Diode is located behind the center console, on the left side. It is taped to the wiring harness.
