Brakes/Body/Engine - Service Manual Revisions

NUMBER: 26-07-96F

GROUP: Miscellaneous

DATE: July, 1996

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1995 Talon - Publication Number 81-270-5500

DESCRIPTION OF CHANGES

Revision to the curb idle speed specification.

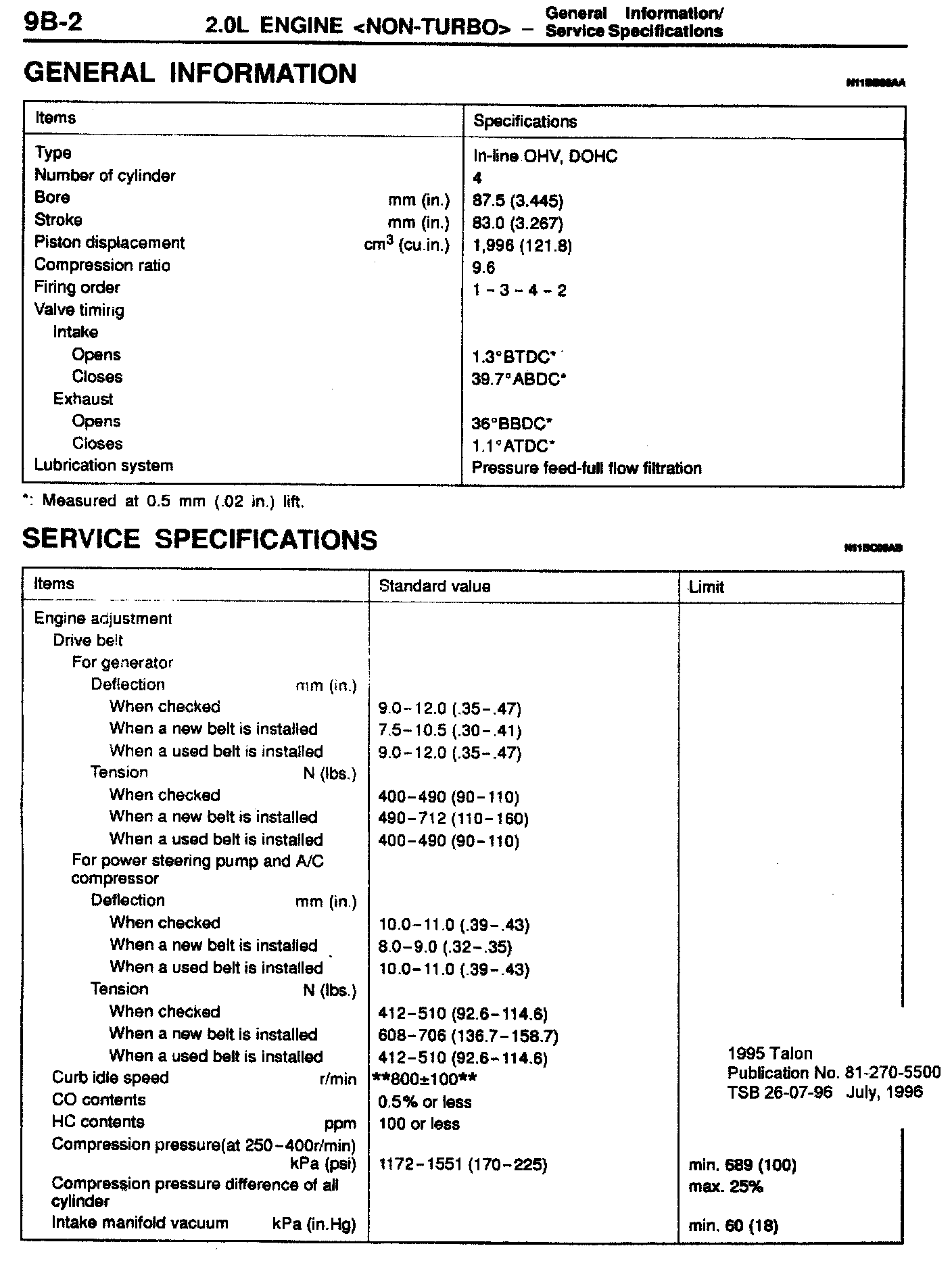

9B-2

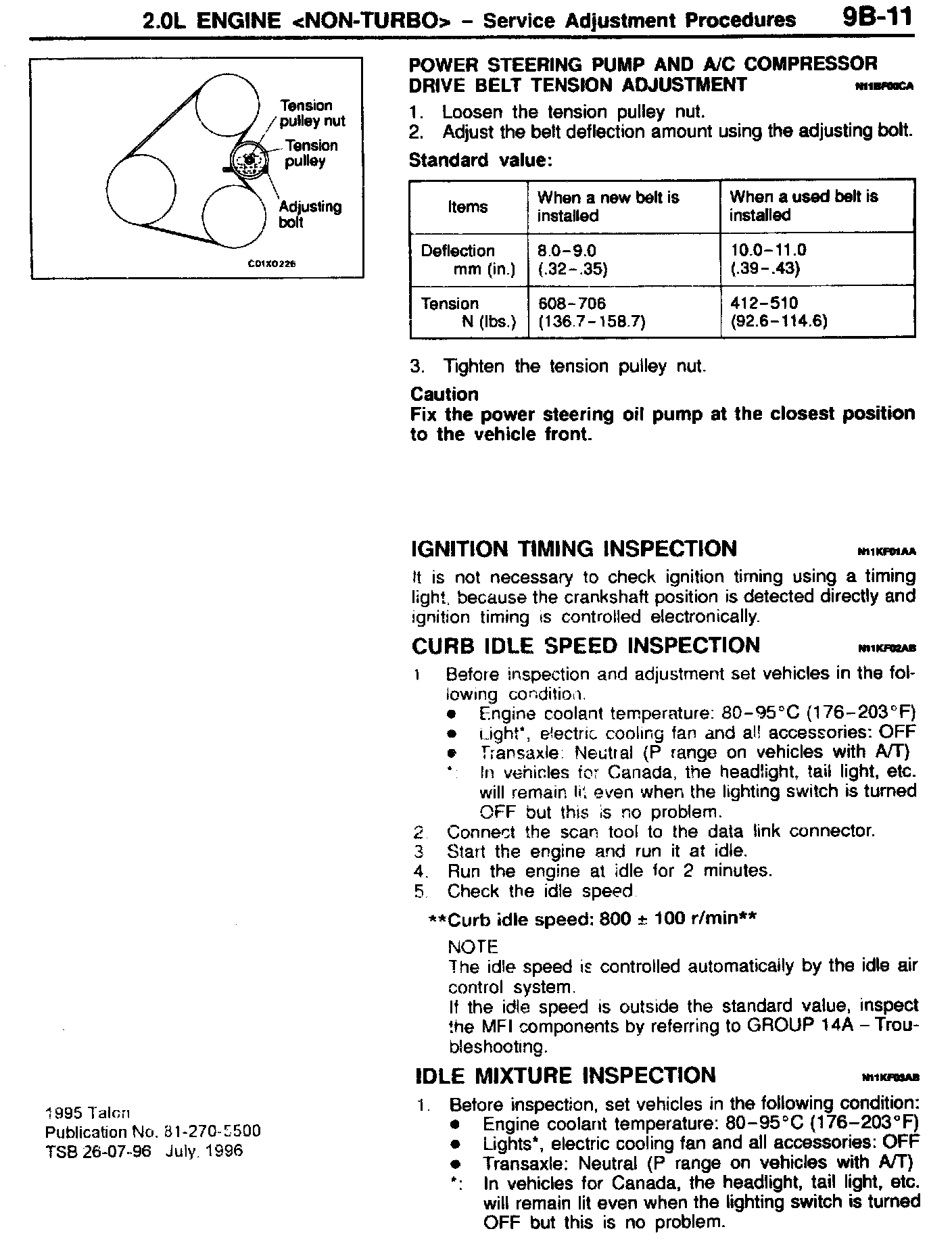

9B-11

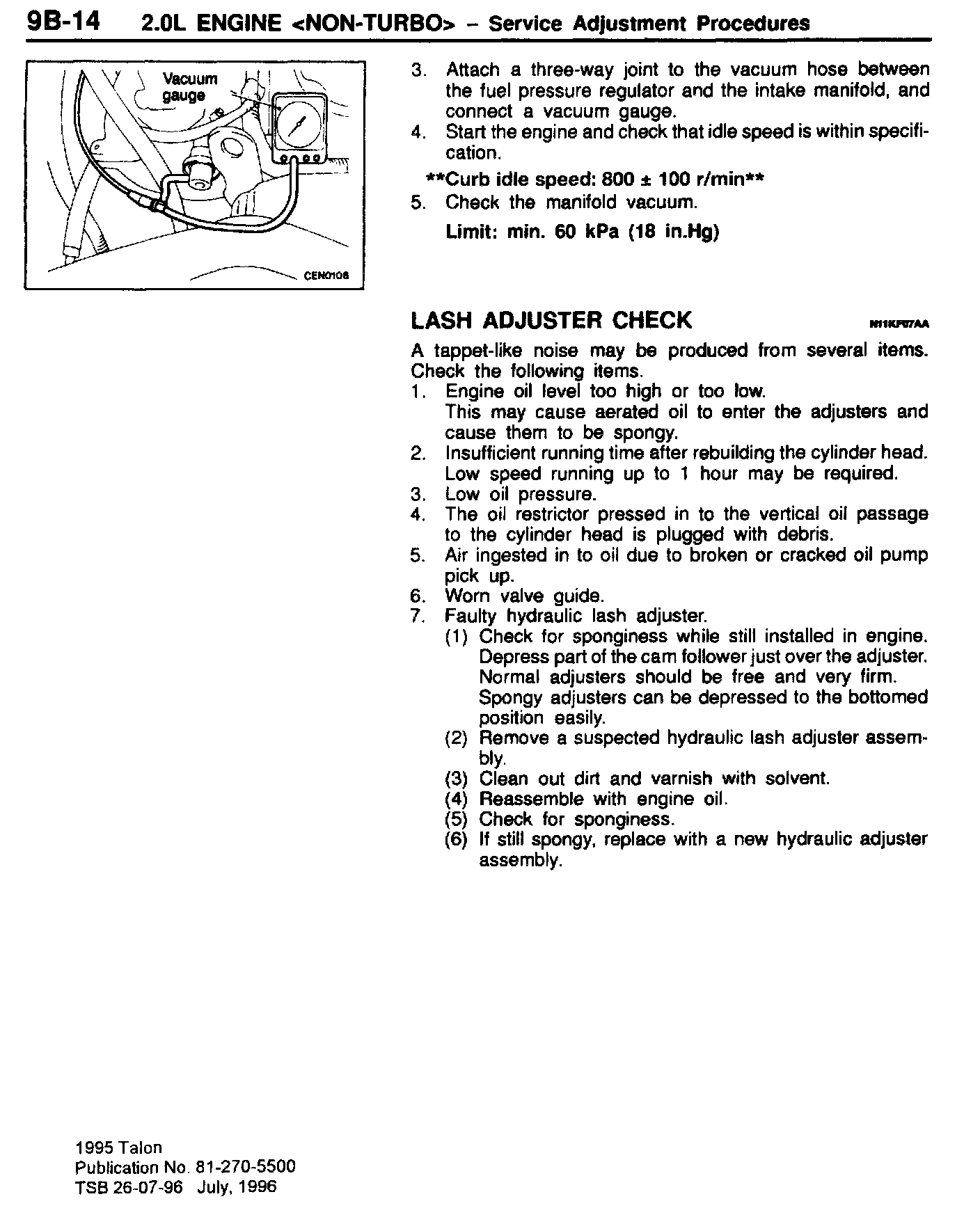

9B-14





14A-7





14A-102

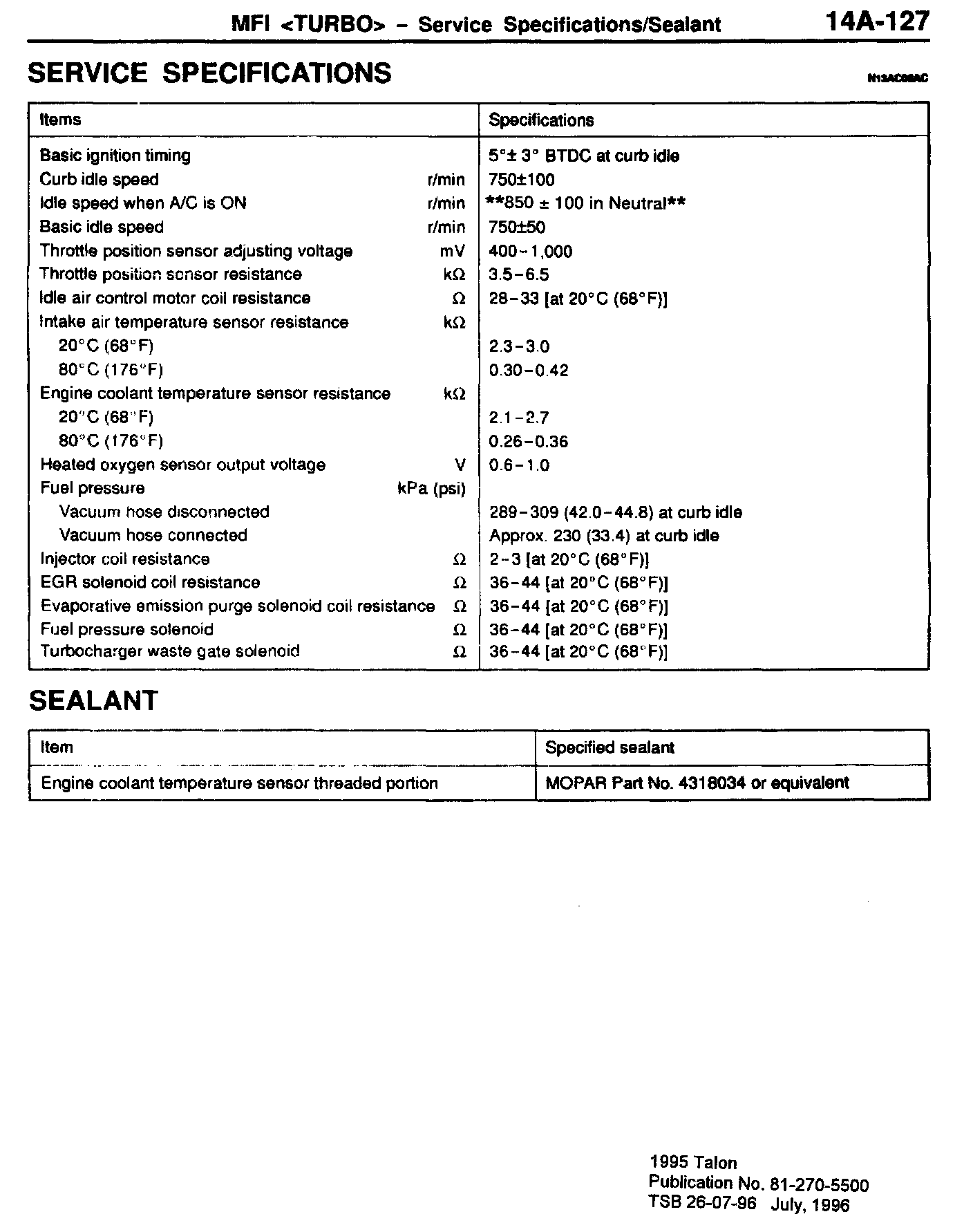

14A-127

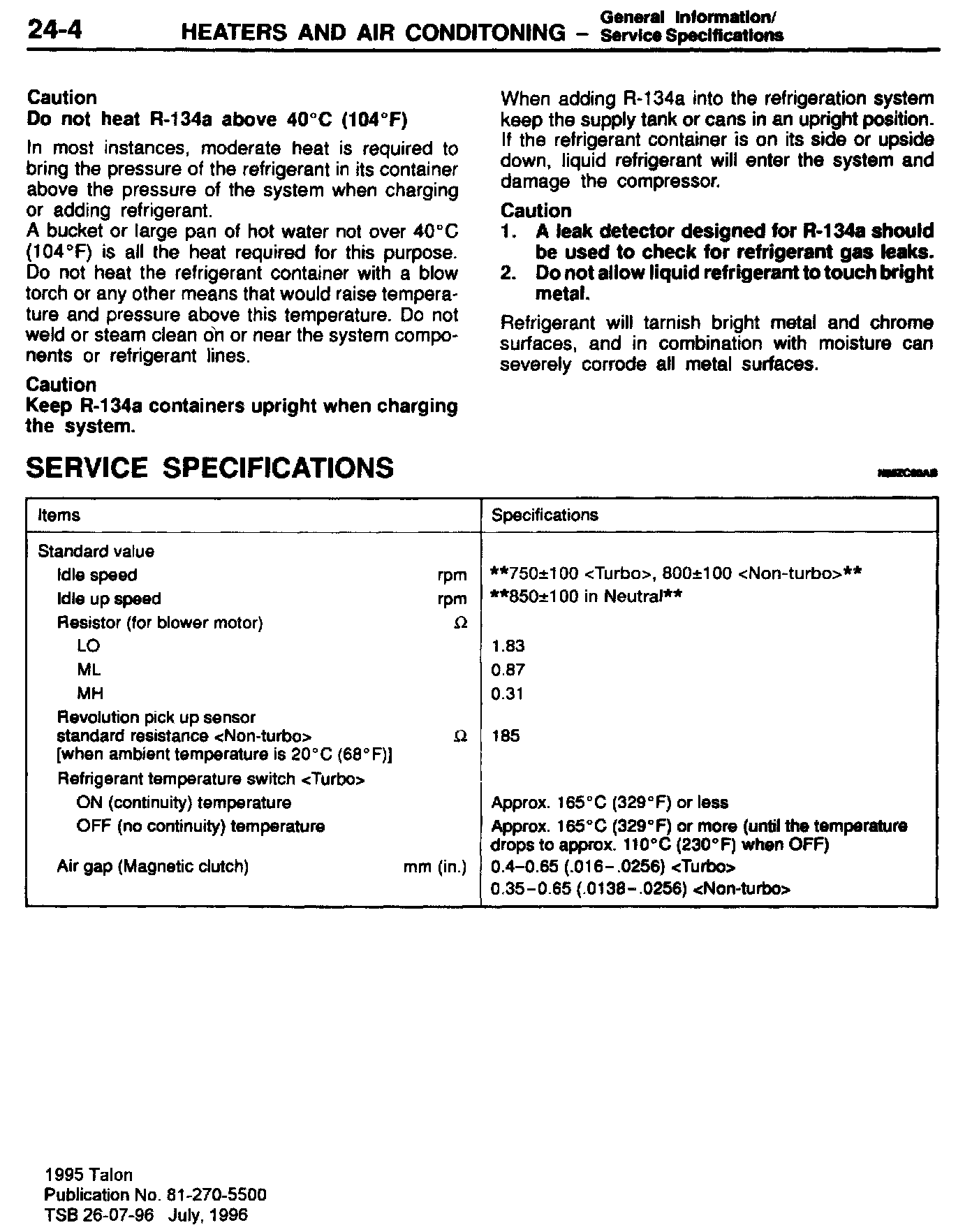

24-4

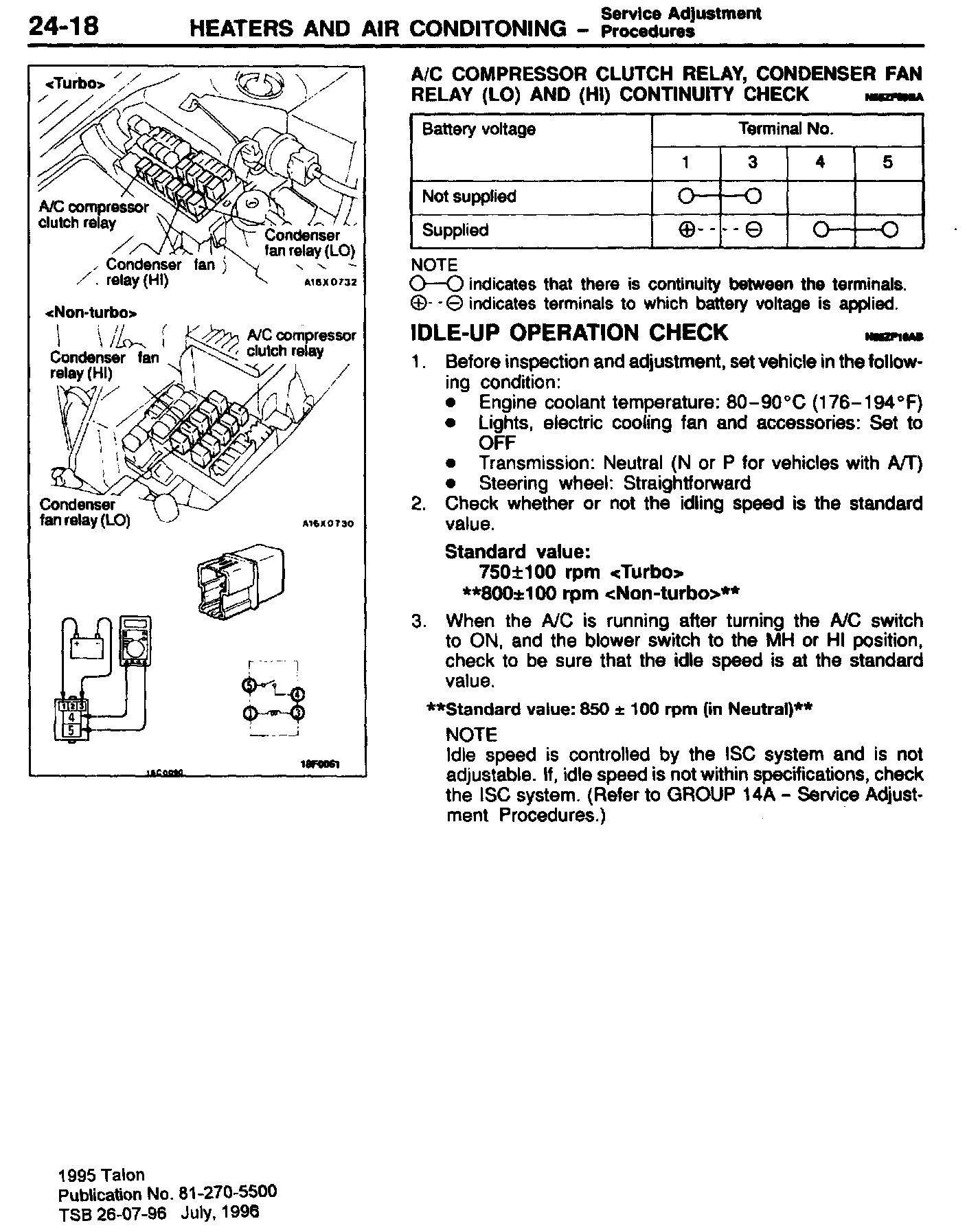

24-18

Revisions to the brake system specifications

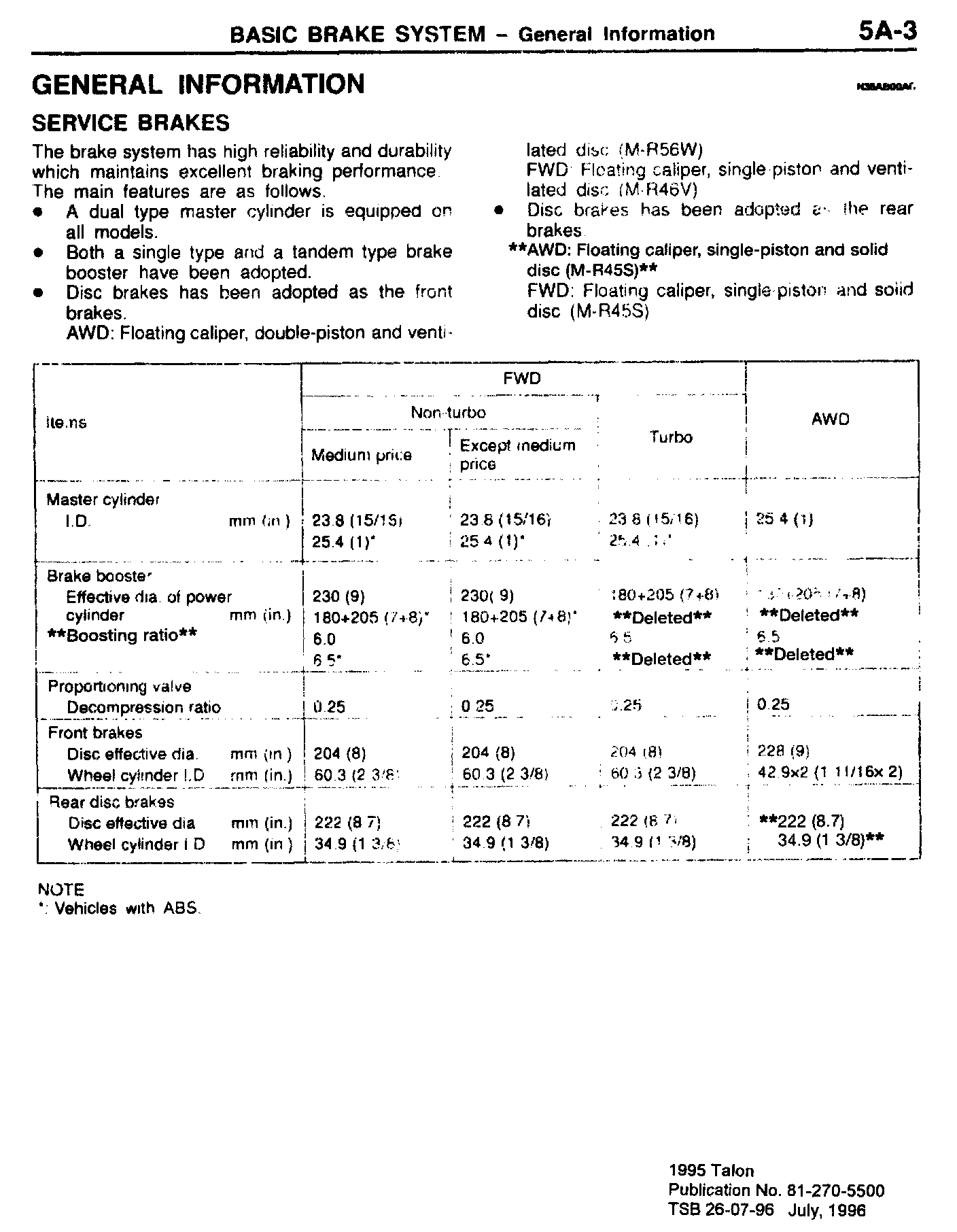

5A-3





5A-5

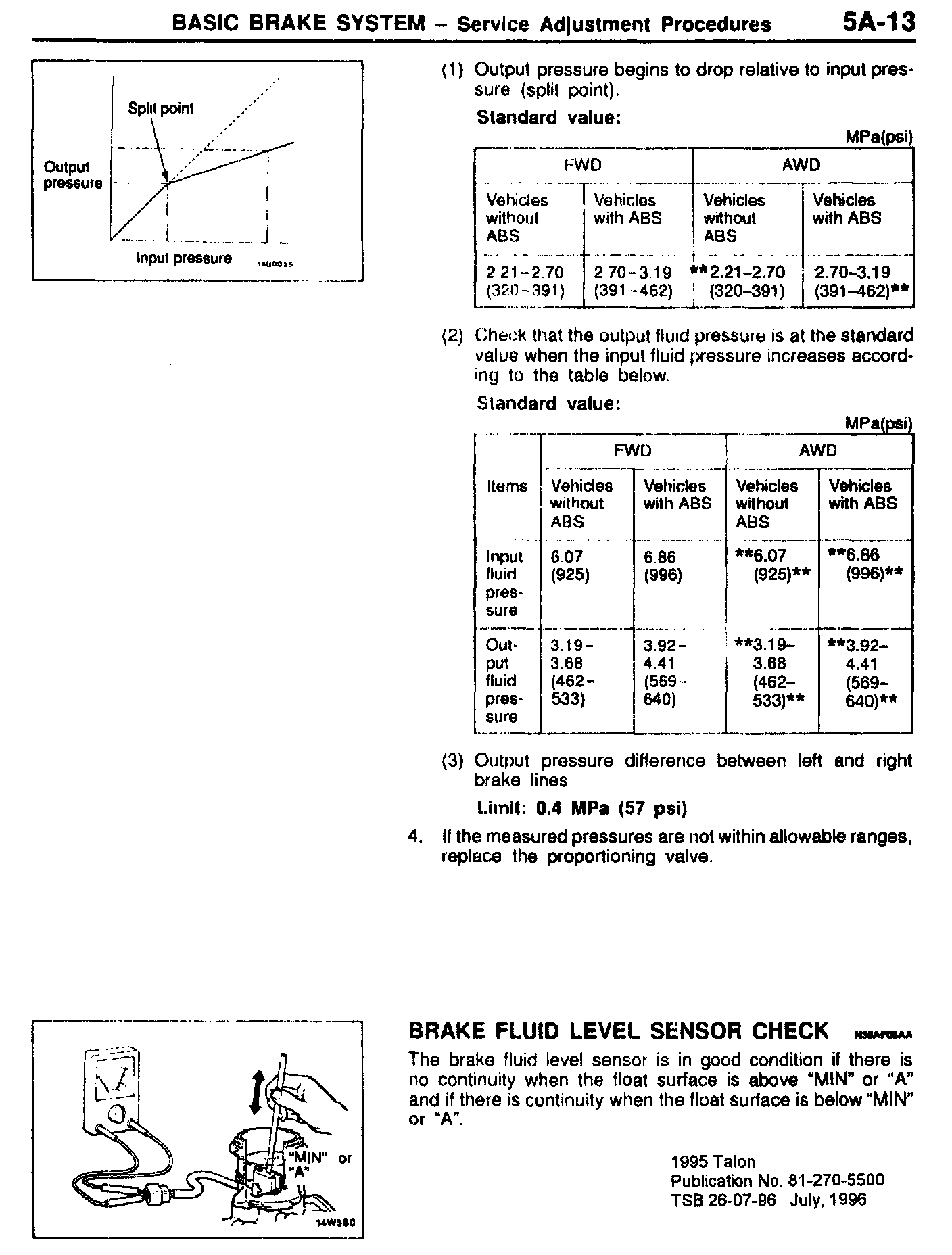

5A-13

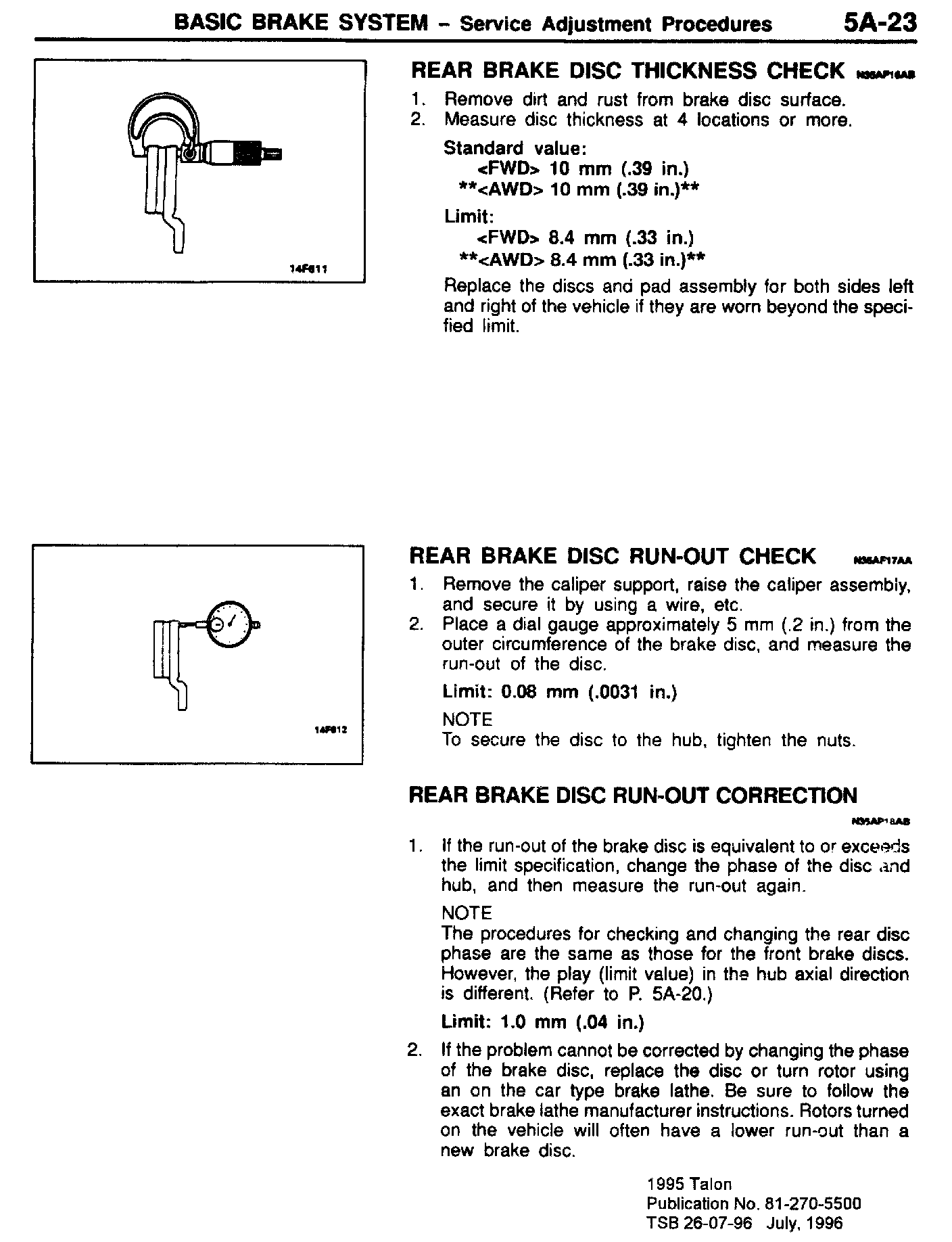

5A-23

Revision to the power window switch test chart.

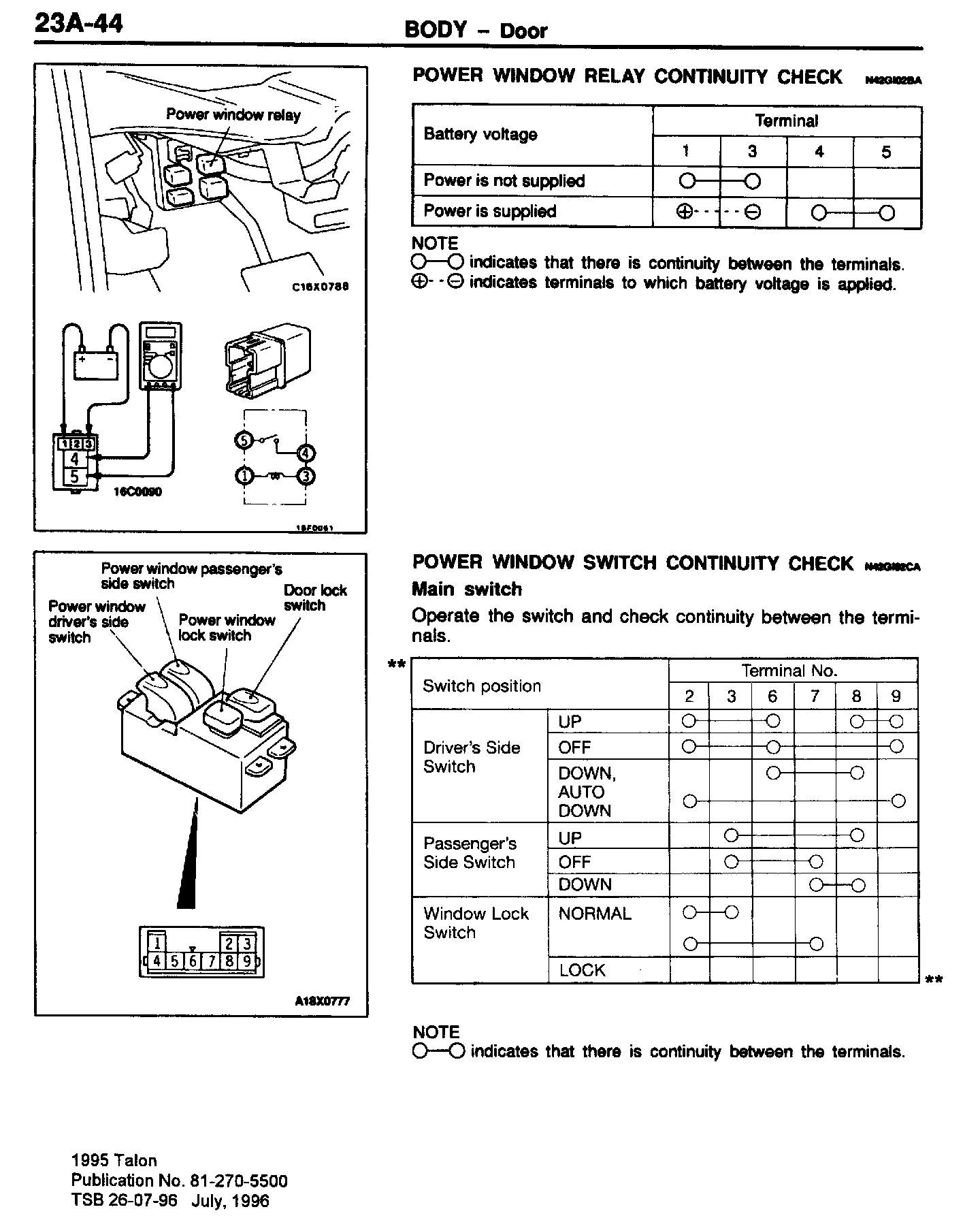

23A-44
