Compact Disc Player (CD): Service and Repair

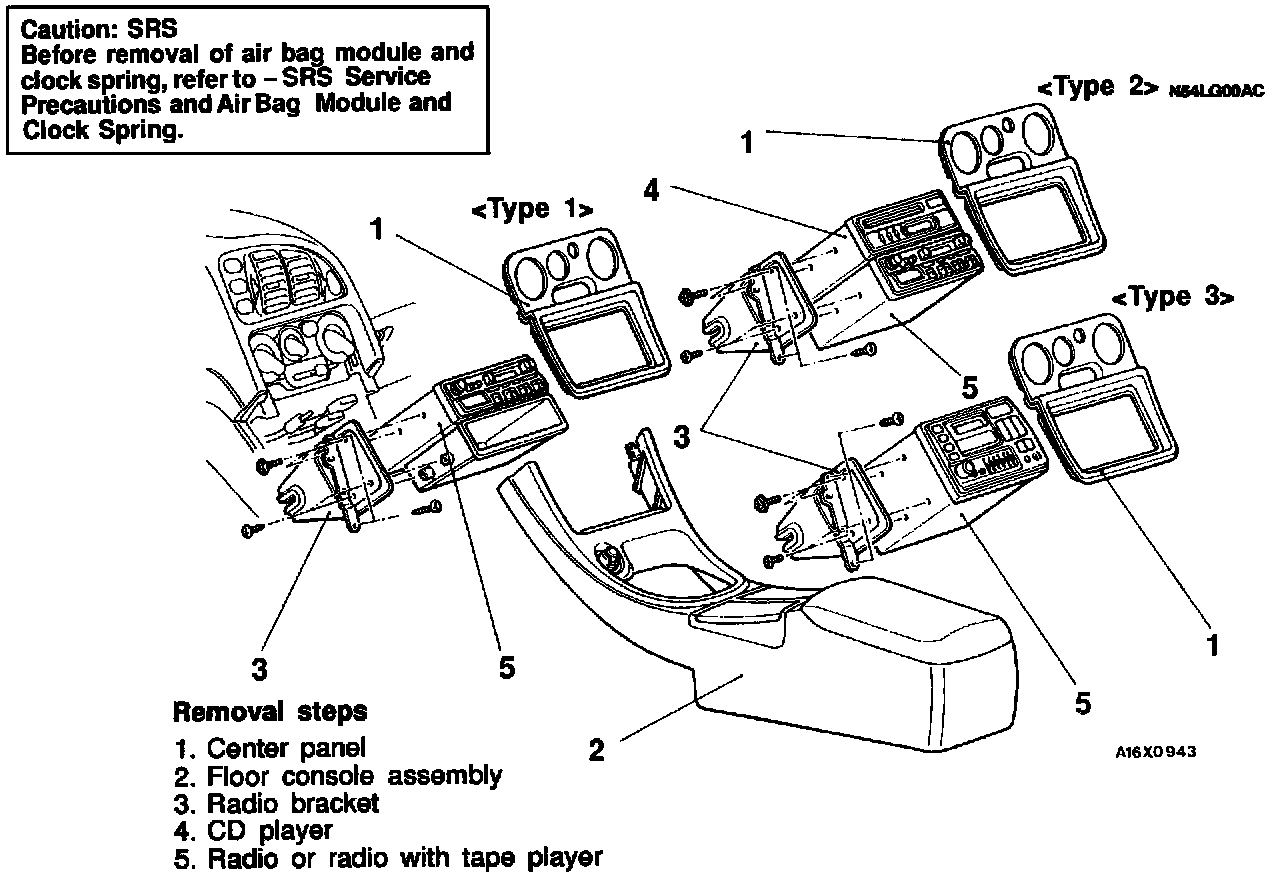

Radio With Tape Player And CD Player - Removal And Installation:

CAUTION: Before removal of air bag module and clock spring, refer to SRS Service Precautions and Air Bag Module and Clock Spring.

REMOVE
1. Center panel
2. Floor console assembly
3. Radio bracket
4. CD player
5. Radio or radio with tape player

INSTALL
1. Radio or radio with tape player
2. CD player
3. Radio bracket
4. Floor console assembly
5. Center panel
