Airbag System

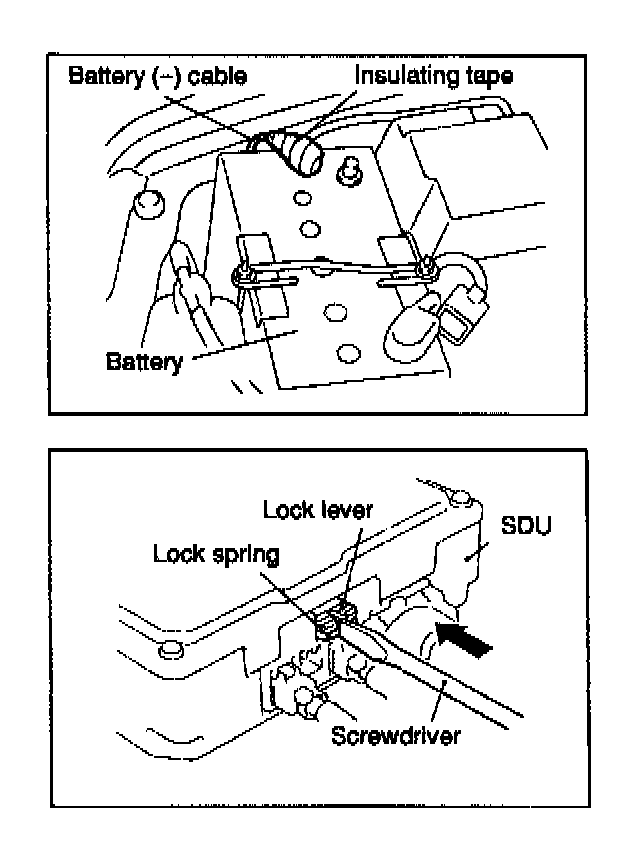

1. Turn the ignition key to the "LOCK" position, disconnect the negative battery cable and tape the terminal.

Caution: Wait at least 60 seconds after disconnecting the battery cable before doing any further work. Air Bags Precautions

2. Remove the floor console assembly.

3. Place a flat-tipped screwdriver against the lock spring at the lock lever notch and push the spring toward the unit.

Caution: Do not use excessive force to raise the lock lever (green).

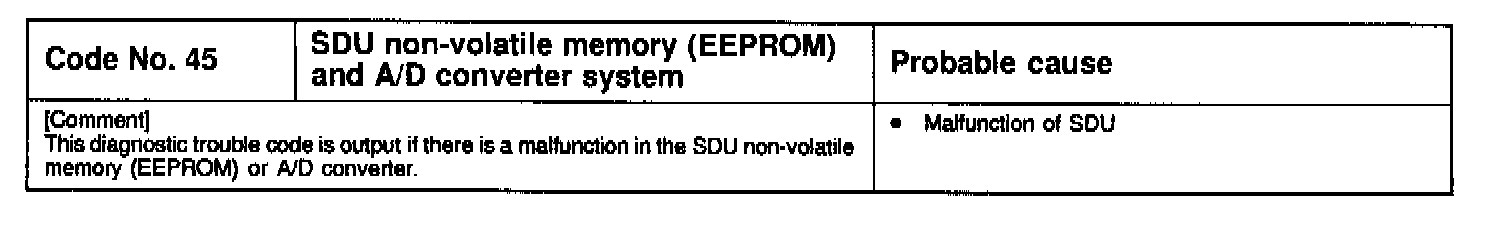

The SDU non-volatile memory (EEPROM) or AID converter is probably defective, so replace the SDU.
