Rear Wiper Motor Test

Check the wiper motor after first disconnecting the wiring harness connector, and with the wiper motor remaining installed to the body.

Operation Of Wiper Motor At LOW Speed:

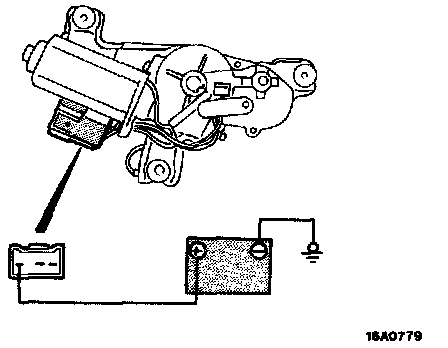

Operation of Wiper Motor at LOW speed
Connect a battery to the wiper motor as shown in the illustration and inspect motor operation.

Operation of Wiper Motor at STOP Position
1. Run the wiper motor, disconnect the battery, and stop the motor.

Operation Of Wiper Motor At STOP Position:

2. Reconnect the battery as shown in the illustration, and confirm that after the motor starts turning, it stops at the automatic stop position.
