Rear Wiper Blade

Installation Of Wiper Blades:

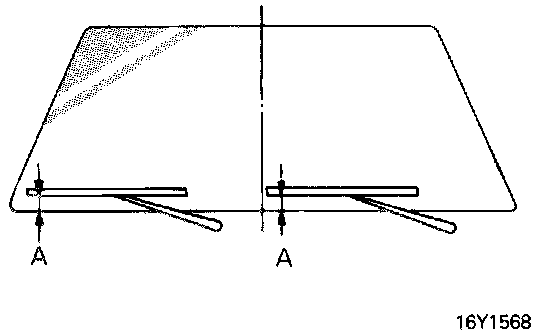

Install the wiper arm to the pivot shaft of the wiper linkage so that the stop position of the wiper blades is such that the dimension at the ends of the wiper blades and at the end of the front deck garnish is the dimension A indicated in the figure.

Standard value (dimension A): 25 mm (1.0 in.)
