Rear Wiper Arm

Installation Of Wiper Arm And Wiper Blade:

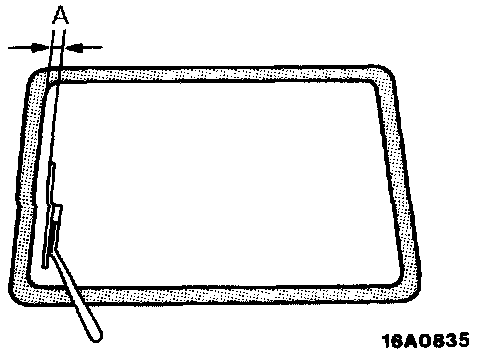

Set up the wiper arm so that the wiper blade may stop at the dimension A, away from the end of the colored area of the liftgate glass.

Standard value (dimension A): 30 mm (1.2 in.)
