Rear Wiper & Washer System

1. Wipers do not operate.
a. Washer is not operative, either.
- Check multi-purpose fuse No. 9.
- Check ground.

2. Low-speed wiper operation only is inoperative.
- Check wiper switch.

3. Wipers do not stop.
- Check wiper motor.
- Check rear intermittent wiper relay.
- Check rear wiper switch.

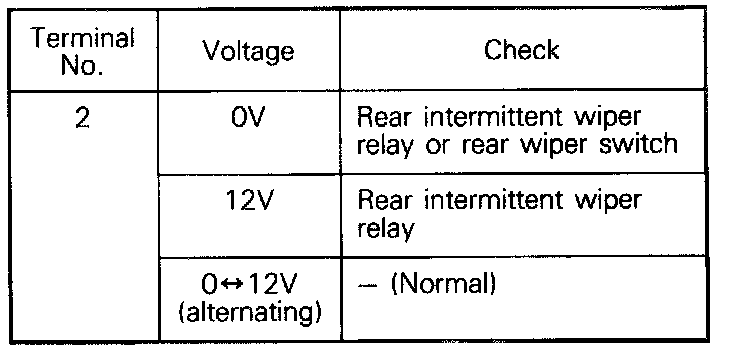

Terminal Check Chart:

4. Intermittent wiper operation is inoperative.
- Check terminal voltage of the rear intermittent wiper relay energized.

5. Washer is inoperative.
- Check washer motor.
- Check washer switch.
