Home >> Eagle >> 1994 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Windows and Glass >> Relays and Modules - Windows and Glass >> Power Window Relay >> Locations

Power Window Relay: Locations

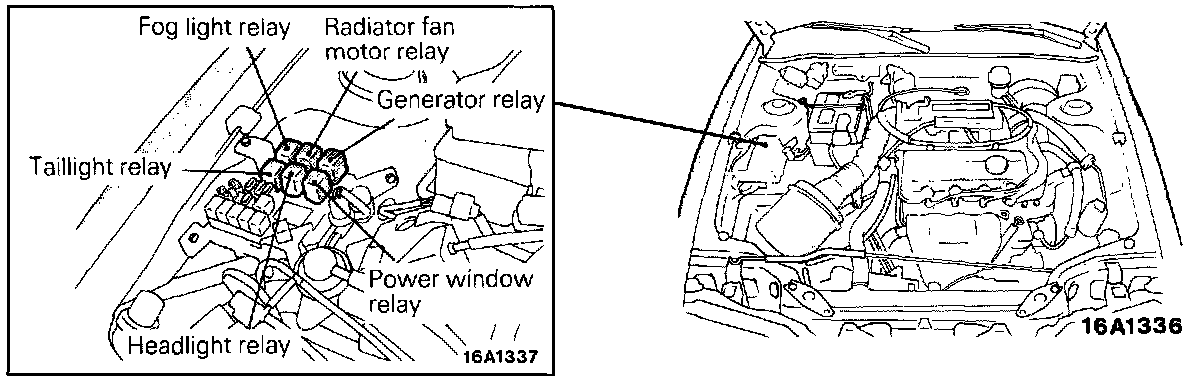

Fog Light Relay, Radiator Fan Motor Relay, Generator Relay, Power Window Relay, Headlight Relay, Tailight Rlay:
