Rear

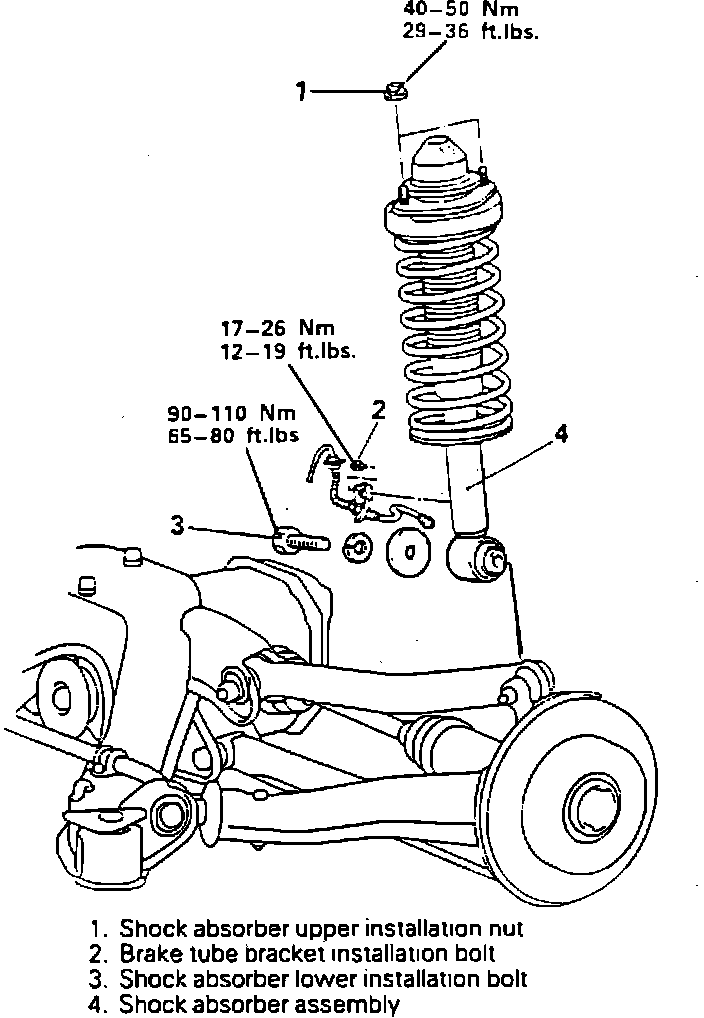

Fig. 6 Removing Shock Absorber Assembly (4WD):

Remove shock absorber assembly in numbered sequence. Reverse procedure to install.

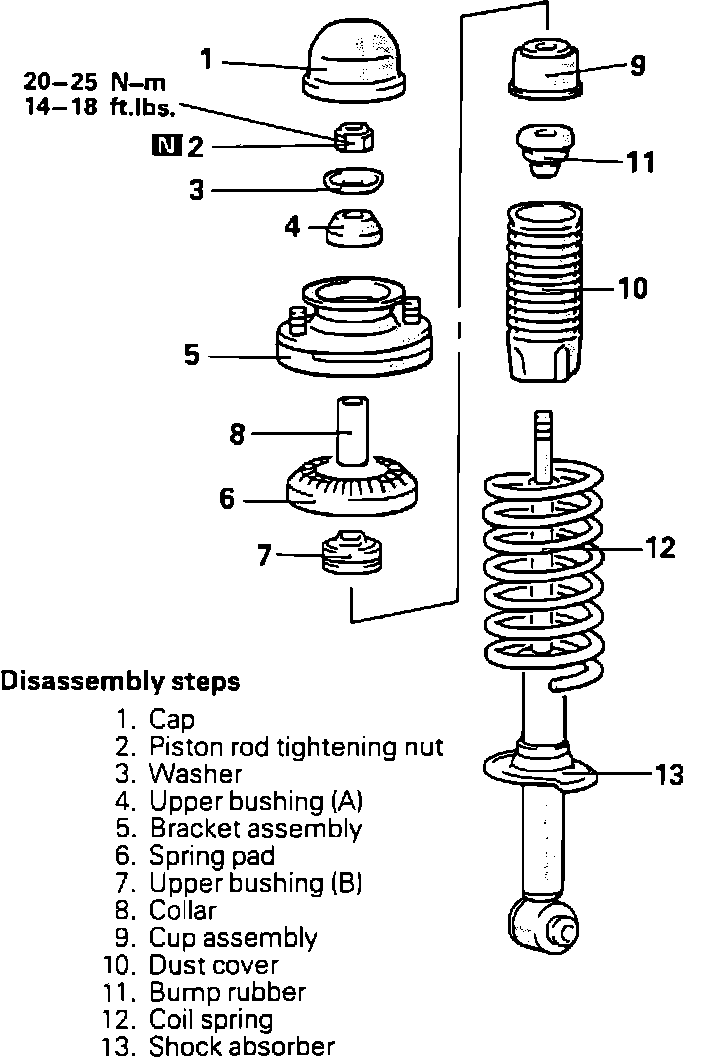

Fig. 7 Exploded View Of Strut Assembly:

Fig. 8 Installing Upper Spring Mount:

ASSEMBLY SERVICE

Disassemble strut assembly in numbered sequence shown, noting the following:
1. Ensure spring is properly seated in upper and lower spring seat when installing.
2. Install strut upper bracket as shown, then tighten strut rod nut to specifications.
