Rear

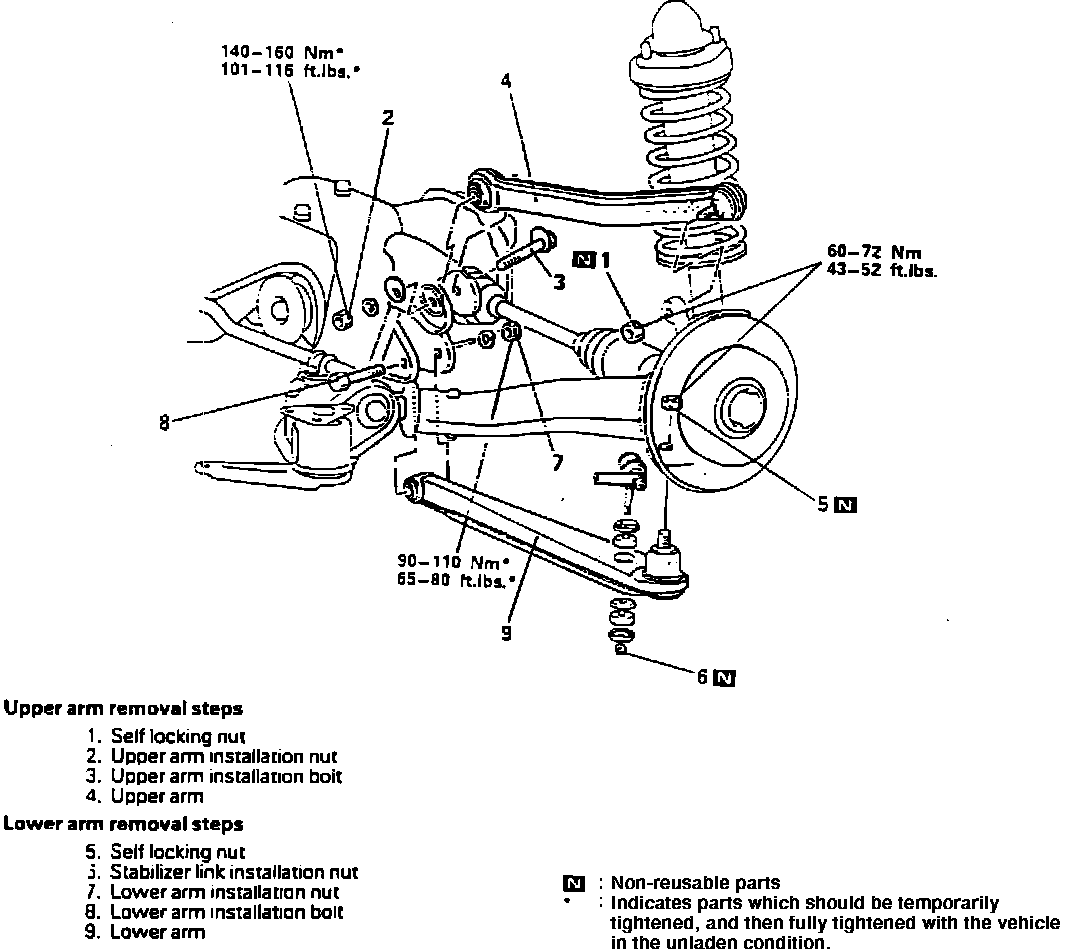

Fig. 9 Replacing Upper And Lower Arm:

NOTE: Remove upper and lower arm in numbered sequence, noting the following:
1. Loosen, but do not remove self-locking nut
2. Press fit lower arm bushing until outer edge is flush with lower arm edge.
3. Reverse procedure to install.
