Removal

Pre-removal Operation
- Draining of the Power Steering Fluid.
- Removal of Transfer (AWD).

Removal Steps

Power Steering Gear Box:

1. Joint assembly and gear box connecting bolt.
2. Connection for return tube.
3. Connection for pressure hose.
4. Cotter pin.
5. Tie-rod end and knuckle connecting nuts.

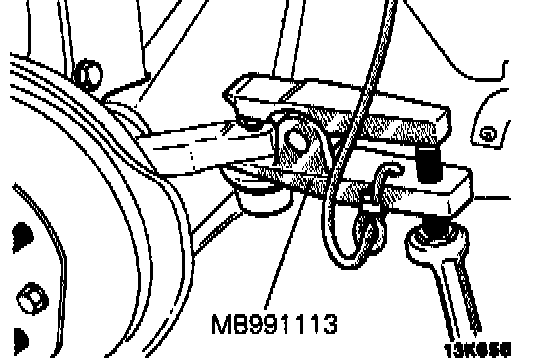

6. Using the special tool, disconnect the tie rod end from the knuckle.

Caution:
a. Be sure to tie the cord of the special tool to the nearby part.
b. Loosen the nut but do not remove it.

7. Stay.
8. Stabilizer bar bracket.
9. Front roll stopper mounting bolt.
10. Center member rear mounting bolt.
11. Front exhaust pipe. (FWD)
12. Gear box assembly.
a. Move the rack completely to the right and then remove the gear box from the crossmember.
b. While tilting the gear box downward, remove it to the left.

Caution: When removing the gear box, pull it out carefully and slowly to avoid damaging the boots.

13. Mounting rubber.
