Removal

Removal Steps

Manual Steering Gear Box:

1. Joint assembly and gear box connecting bolt.
2. Cotter pin.
3. Tie-rod end and knuckle connecting nuts.

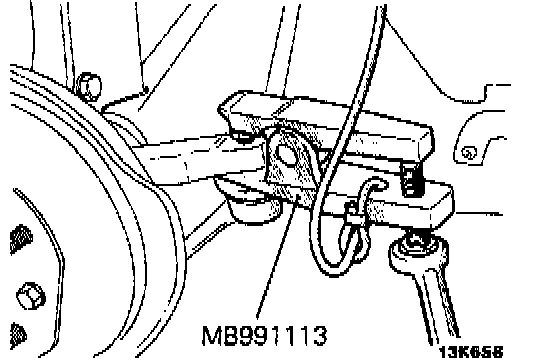

4. Using the special tool, disconnect the tie rod from the knuckle.

Caution:
- Be sure to tie the cord of the special tool to the nearby part.
- Loosen the nut but do not remove it.

5. Stay.
6. Stabilizer bar bracket.
7. Front roll stopper mounting bolt.
8. Center member rear mounting bolts.
9. Front exhaust pipe.
10. Gear box assembly.
a. Move the rack completely to the right and then remove the gear box from the crossmember.
b. While tilting the gear box downward, remove it to the left.

Caution: When removing the gear box, pull it out carefully and slowly to avoid damaging the boots.

11. Mounting rubber.
