Installation

Installation Steps

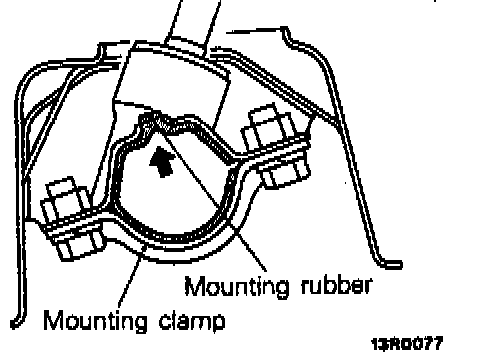

Note: When installing the mounting rubber, align the projection of the mounting rubber with the indentation in the cross member to install the gear box.

1. Mounting rubber.
2. Gear box assembly.
3. Front exhaust pipe.
4. Center member rear mounting bolts.
5. Front roll stopper mounting bolt.
6. Stabilizer bar bracket.
7. Stay.
8. Tie-rod end.
9. Tie-rod end and knuckle connecting nuts.
10. Cotter pin.
11. Joint assembly and gear box connecting bolt.

Post-installation Operation
- Checking of steering wheel position with wheels straight ahead.
- Adjustment of the front wheel alignment.
