Power Steering Pump Removal and Installation

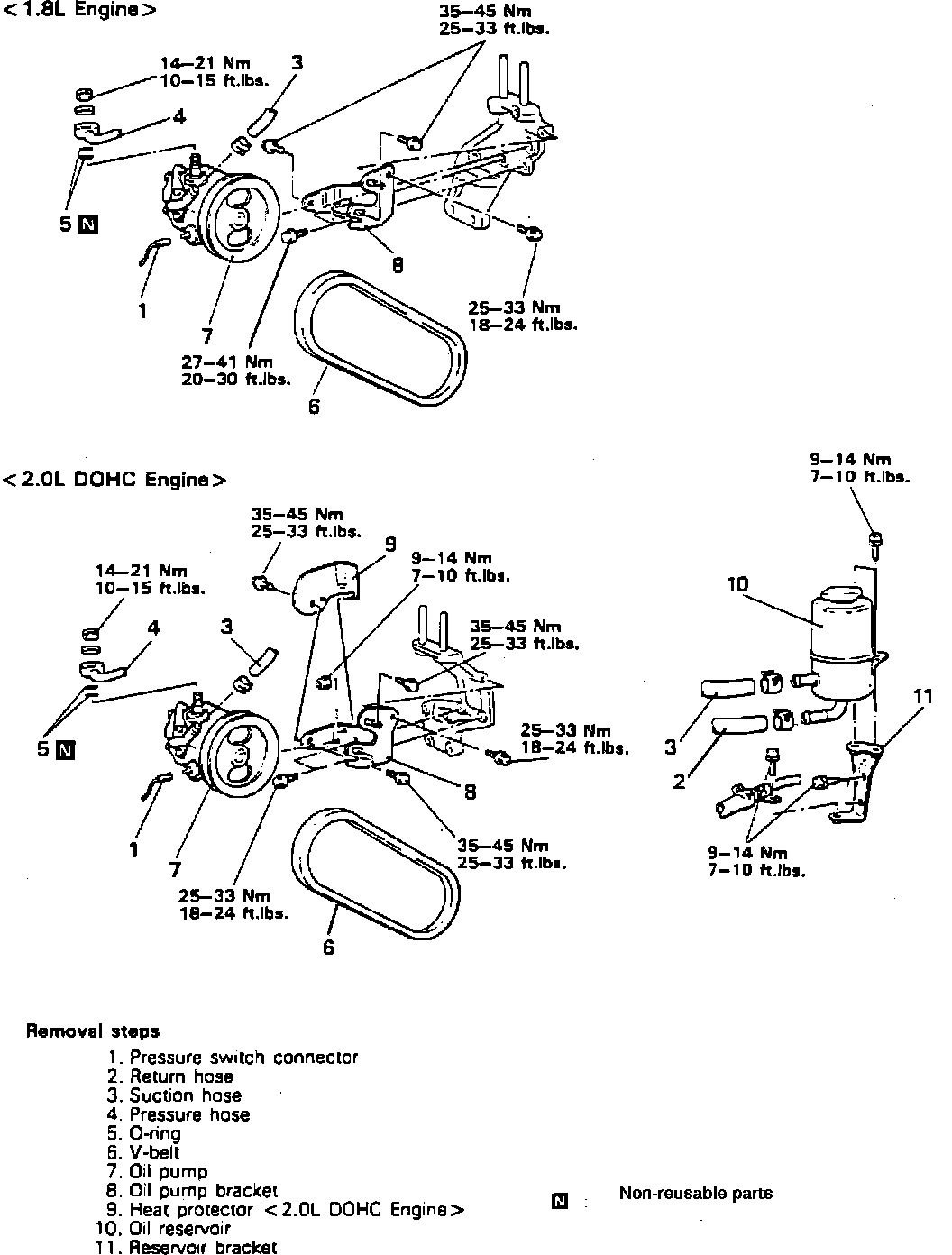

Fig. 17 Removing Power Steering Pump:

Remove steering pump in numbered sequence, noting the following:
1. Remove reservoir cap and disconnect return hose to drain fluid.
2. Raise and support vehicle.
3. Disconnect high tension cable, then turn crank engine to drain fluid from gearbox.
4. Cover alternator (located under oil pump) if any hoses are removed.
5. When connecting pressure hose, ensure slit contacts oil pump guide bracket.
