Stator: Testing and Inspection

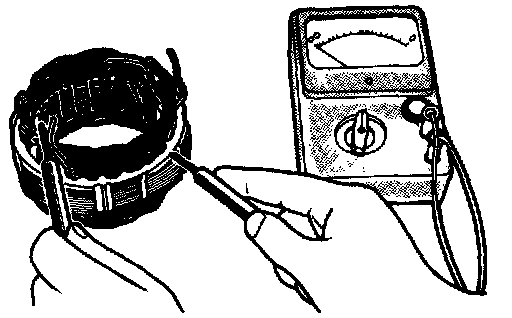

Stator Inspection: Step (1):

1. Make continuity test on stator coil. Check to ensure that there is continuity between coil leads.
If there is no continuity, replace stator assembly.

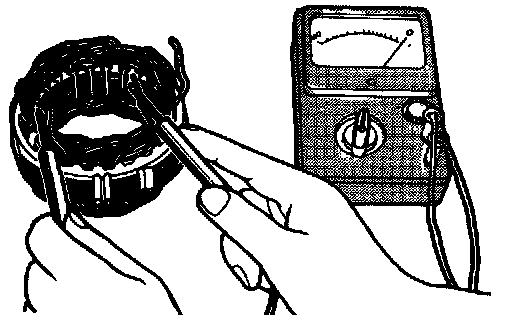

Stator Inspection: Step (2):

2. Check coil for grounding. Check to ensure that there is no continuity between coil and core. If there is continuity, replace stator assembly.
