Rotor: Testing and Inspection

Rotor Inspection: Step (1):

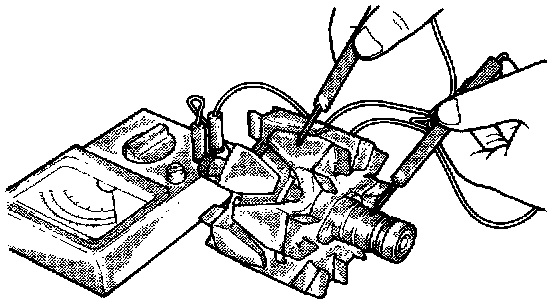

1. Check field coil for continuity. Check to ensure that there is continuity between slip rings.
If resistance is extremely small, it means that there is a short. If there is no continuity or if there is short circuit, replace rotor assembly.
Resistance value: Approx. 3-5 Ohms

Rotor Inspection: Step (2):

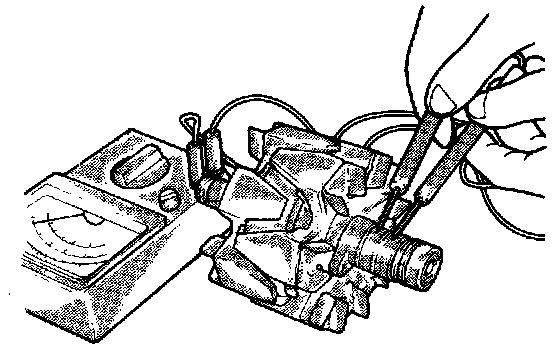

2. Check field coil for grounding. Check to ensure that there is no continuity between slip ring and core. If there is continuity, replace rotor assembly.
