Home >> Eagle >> 1994 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Starting and Charging >> Battery >> Testing and Inspection >> Component Tests and General Diagnostics >> Battery Test

Battery Test

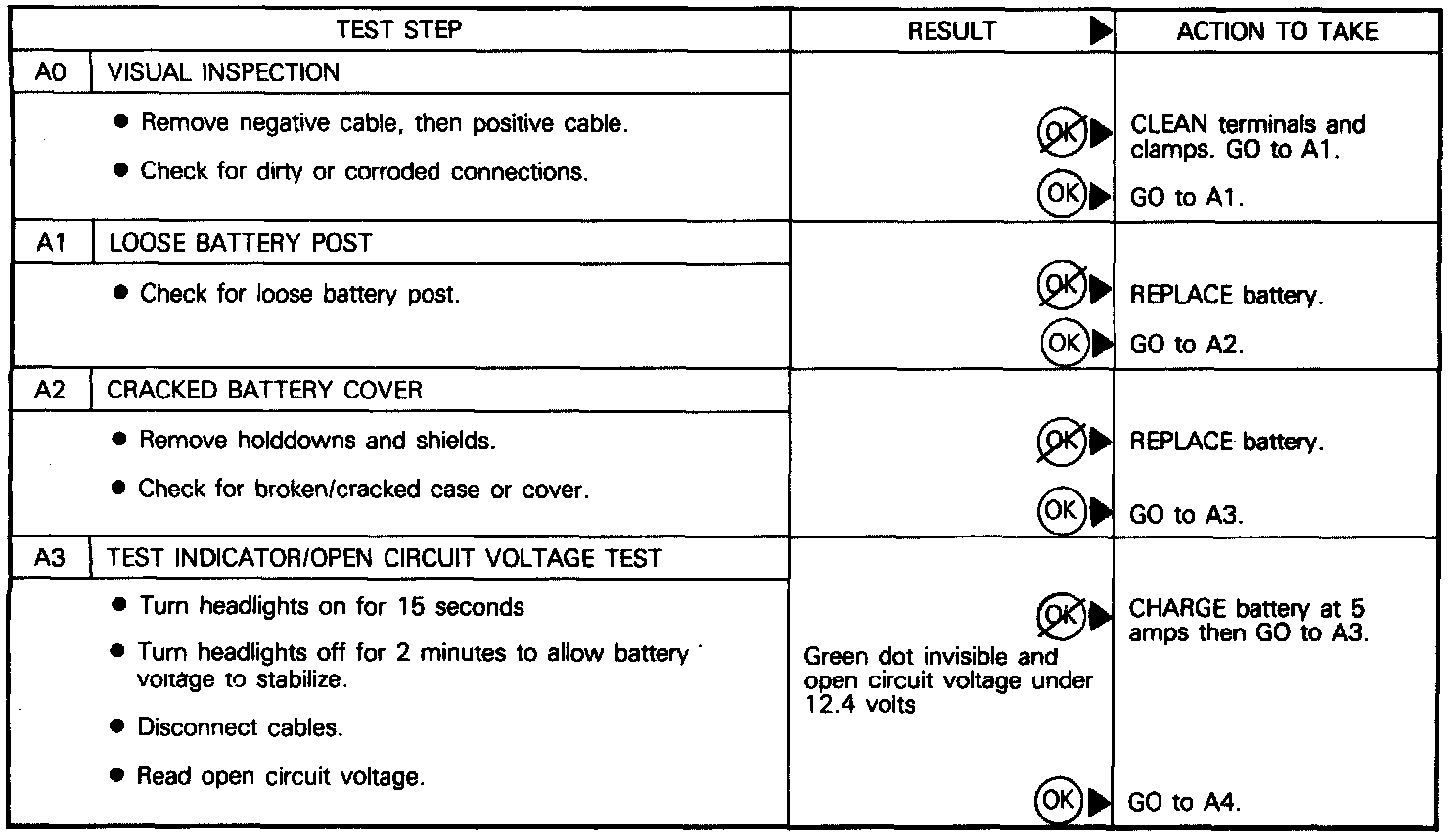

Battery Testing Procedures (Part 1 Of 2):

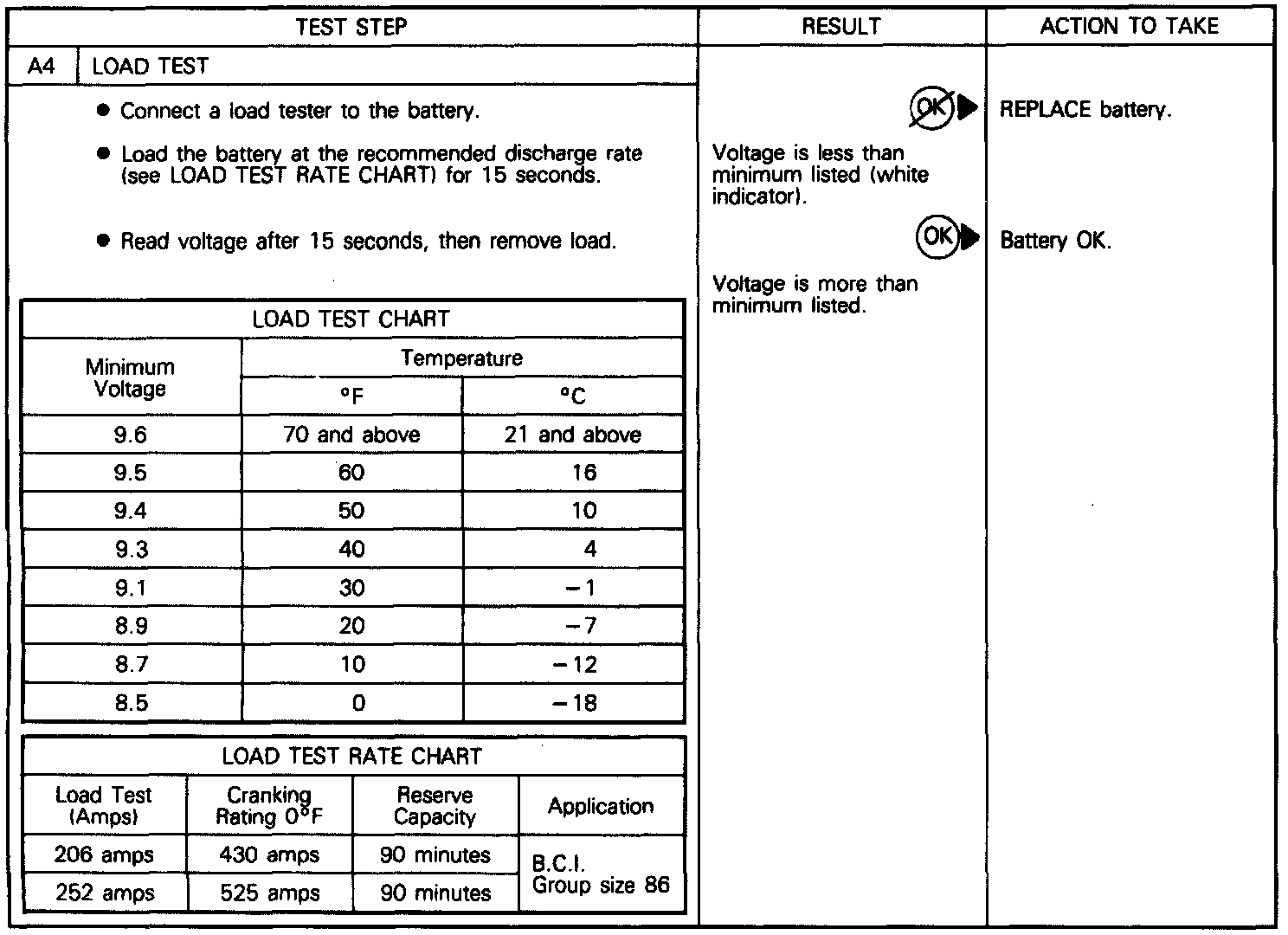

Battery Testing Procedures (Part 2 Of 2):
