Rear Wiper/Washer Switch Continuity Test
Rear Wiper/Washer Switch Continuity Test

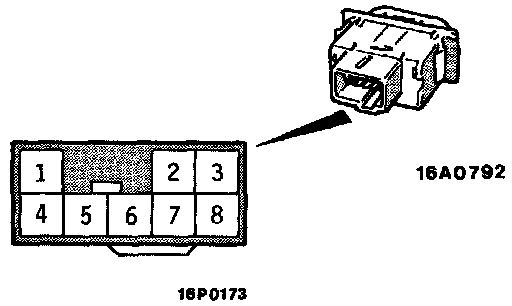

Inspection Of Rear Wiper And Washer Switch:

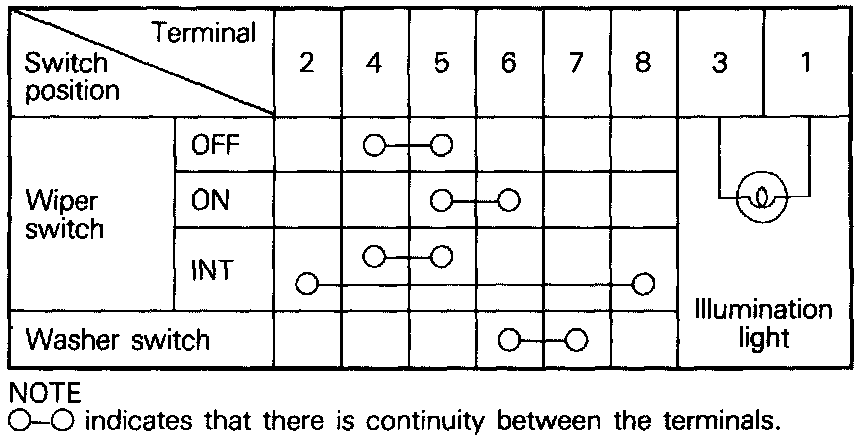

Continuity Chart:
Operate the switch to check for continuity between terminals.
