Turn Signal Switch: Testing and Inspection

Inspection

Inspection Of Column Switch:




Inspection Of Column Switch:






1. Remove the knee protector and the lower column cover.

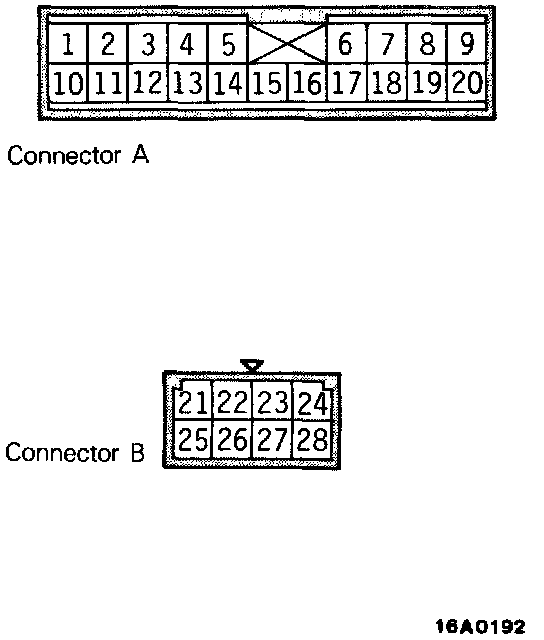

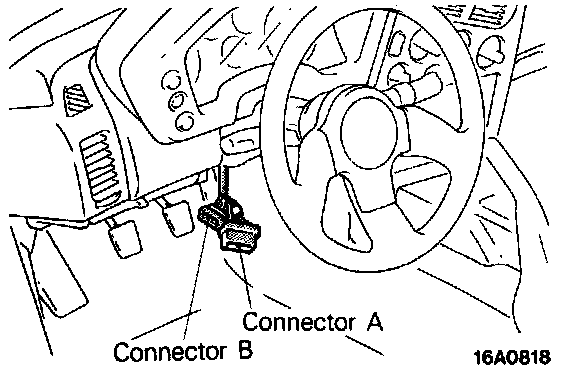

2. Disconnect the column switch connector and check the continuity between the terminals for the switch.

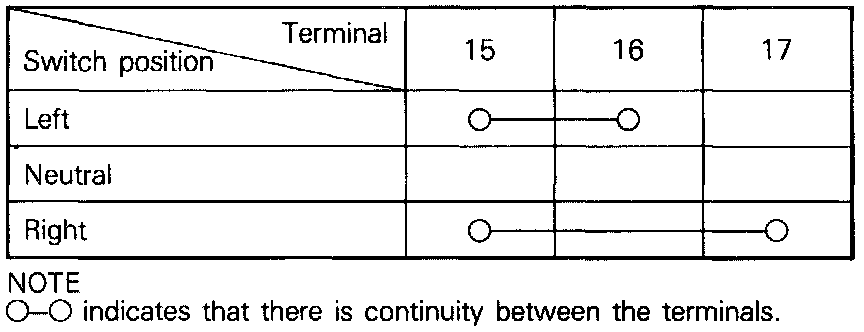

Turn Signal Switch:





Operate the switch and check the continuity between the terminals.
