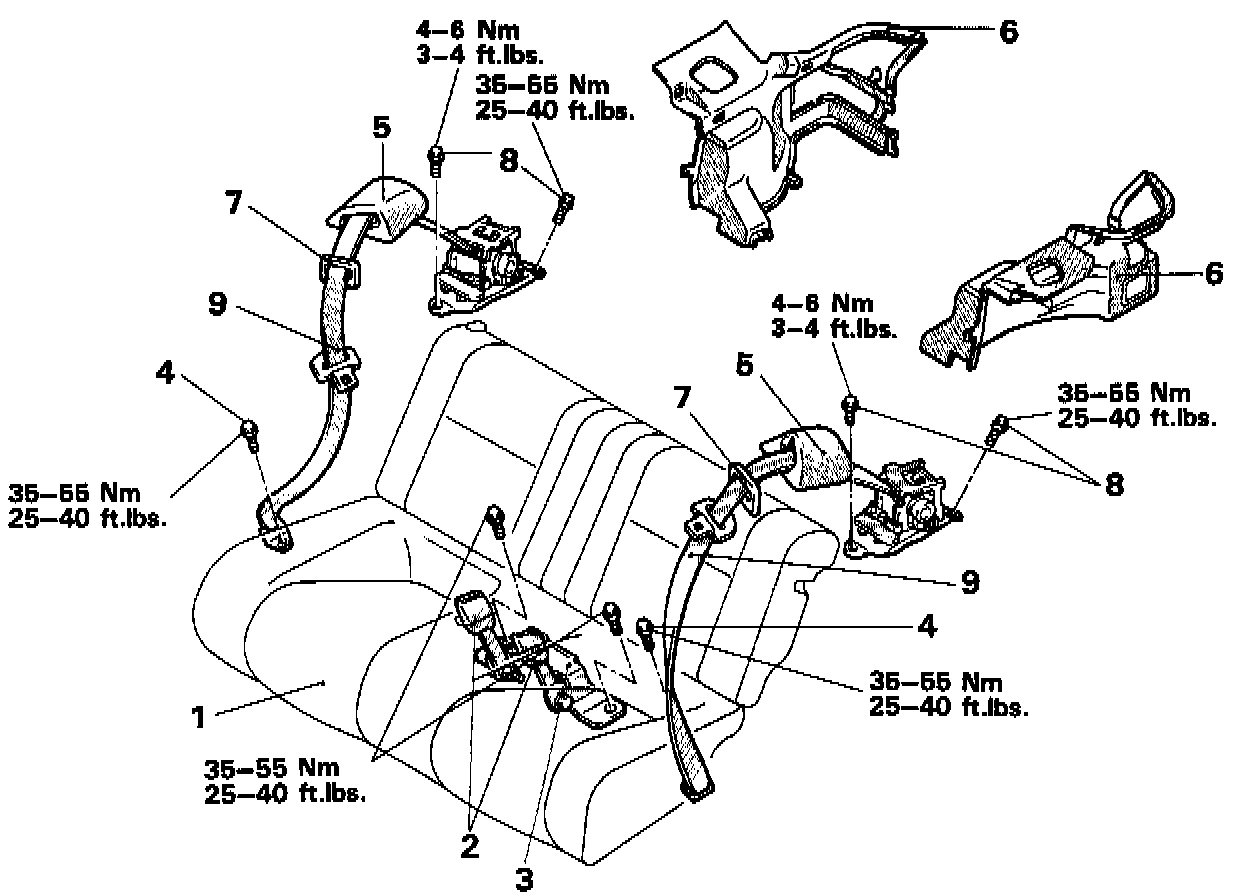

Rear Seat Belts

INNER SEAT BELT REMOVAL STEPS
1. Rear seat cushion
2. Inner seat belt
3. Bracket

OUTER SEAT BELT REMOVAL STEPS
1. Rear seat cushion
4. Seat belt anchor plate attaching bolts
5. Retractor cover
6. Rear side trim
7. Seat belt protector
8. Retractor bracket mounting bolts
9. Outer seat belt

SERVICE POINTS OF INSTALLATION

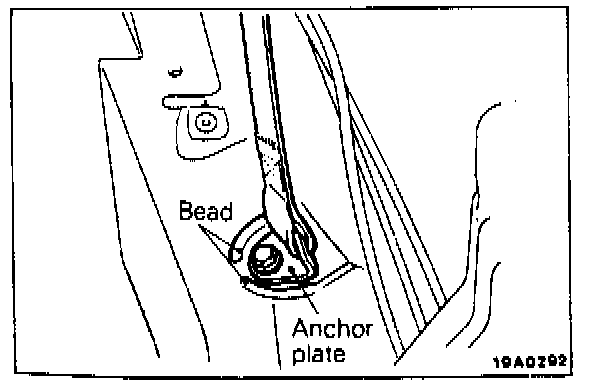

4. Installation Of Seat Belt Anchor Plate Attaching Bolts
Install the anchor plate so that it conforms to the floor bead.
