Vehicles For USA

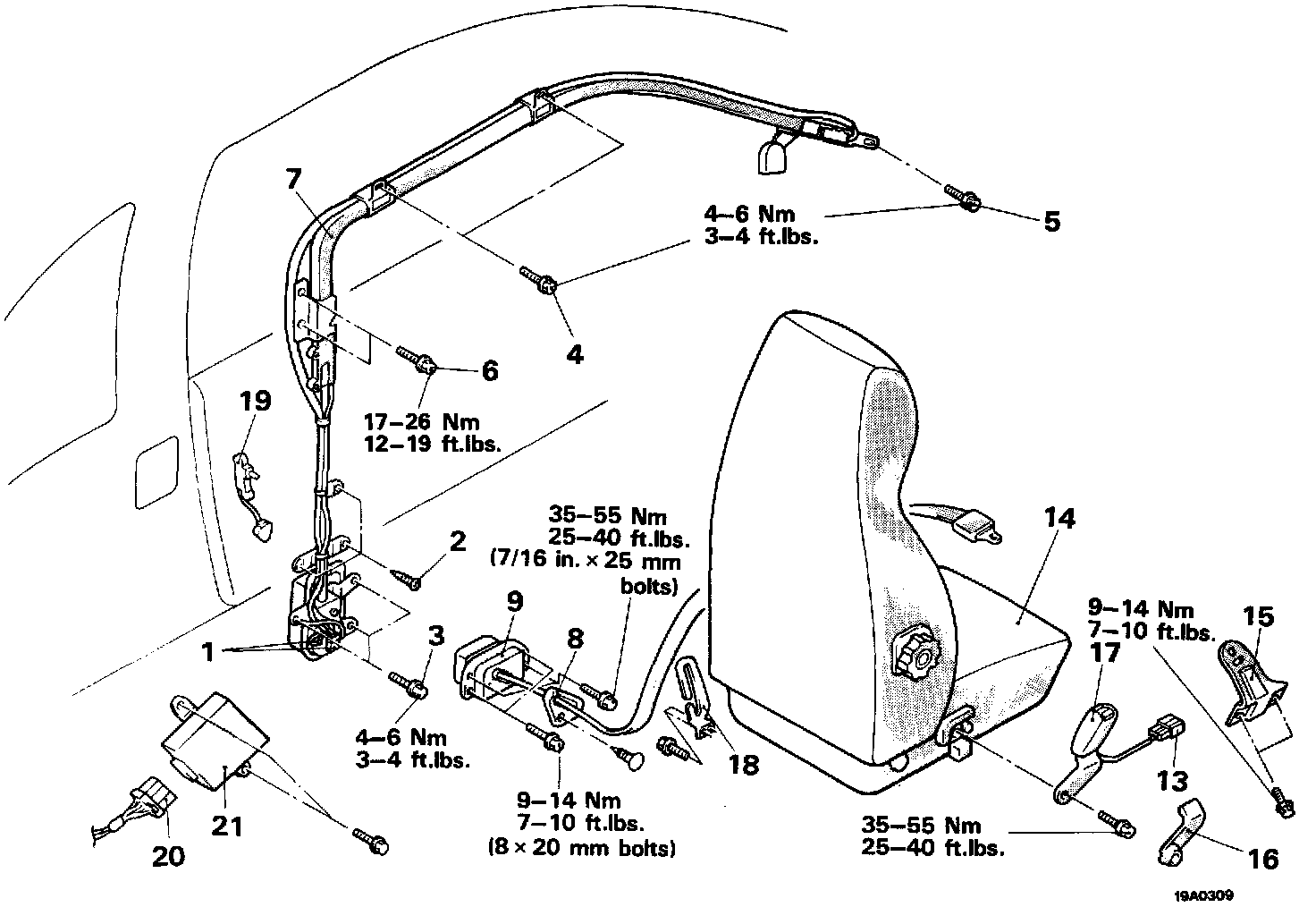

DRIVING DEVICE ASSEMBLY REMOVAL STEPS
- Scuff plate
- Quarter trim
- Center pillar trim
- Front pillar trim
1. Automatic seat belt wiring harness connector connection
2. Outer casing mounting screws
3. Motor mounting bolts
4. Guide rail mounting bolts (A)
5. Guide rail mounting bolt (B)
6. Guide rail mounting bolts (C)
7. Driving device assembly

LAP BELT REMOVAL STEPS
- Scuff plate
- Quarter trim
8. Bezel
9. Retractor (for lap belt)

BUCKLE AND BELT HOLDER REMOVAL STEPS
10. Guide ring
11. Shoulder belt
12. Floor console assembly
13. Seat belt switch connector connection (L.H. only)
14. Front seat assembly
15. Guide ring bracket
16. Buckle cover
17. Buckle
18. Belt holder

DOOR LATCH SWITCH REMOVAL
19. Door latch switch

AUTOMATIC SEAT BELT CONTROL UNIT REMOVAL STEPS
- Scuff plate
- Quarter trim
20. Automatic seat belt control unit connector connection
21. Automatic seat belt control unit

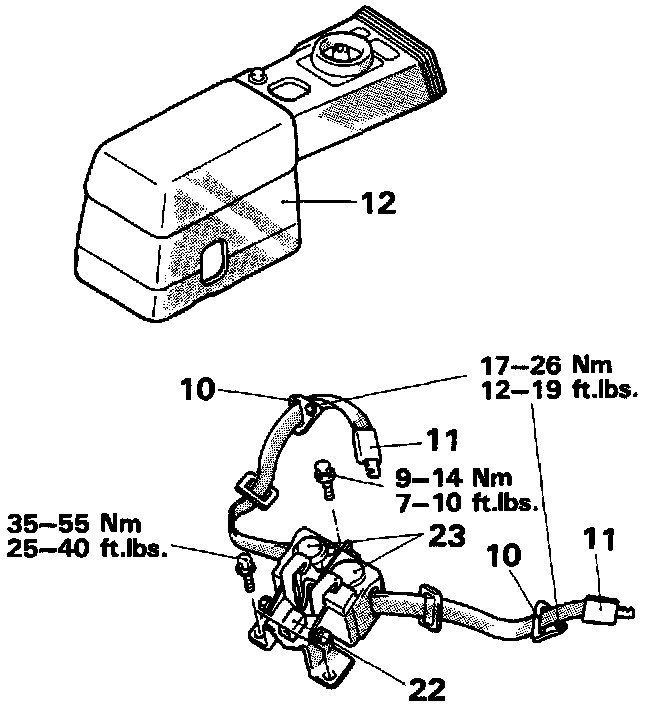

SHOULDER BELT REMOVAL STEPS
10. Guide ring
11. Shoulder belt
12. Floor console assembly
22. Outer switch connector connection
23. Retractor assembly (for shoulder belt)
24. Buzzer

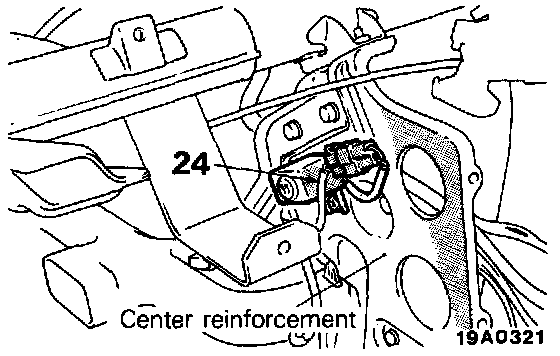

BUZZER REMOVAL STEPS
- Instrument panel assembly
24. Buzzer
