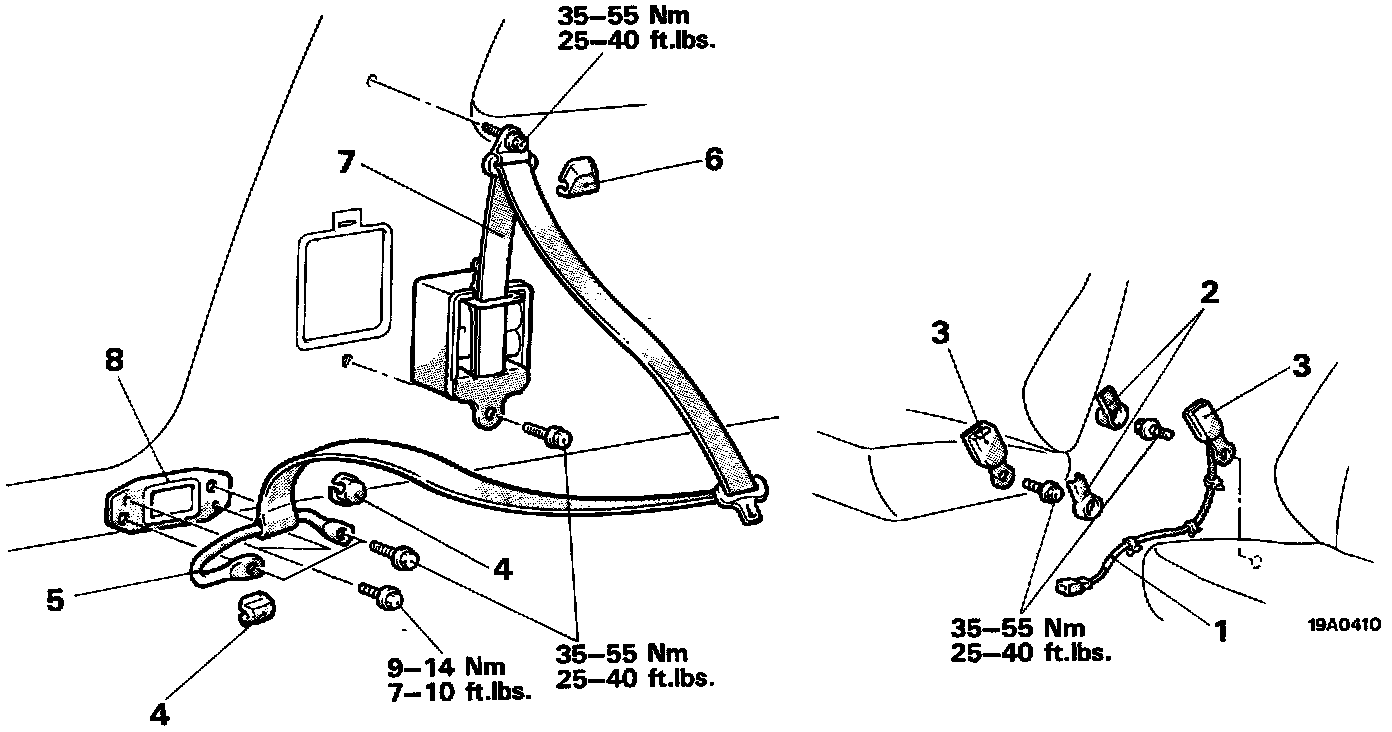

BUCKLE REMOVAL STEPS
1. Seat belt switch harness
2. Buckle cover
3. Buckle

FRONT SEAT BELT REMOVAL STEPS
4. Bolt cap
5. Slide bar
6. Sash guide cover
7. Front seat belt
8. Cover plate

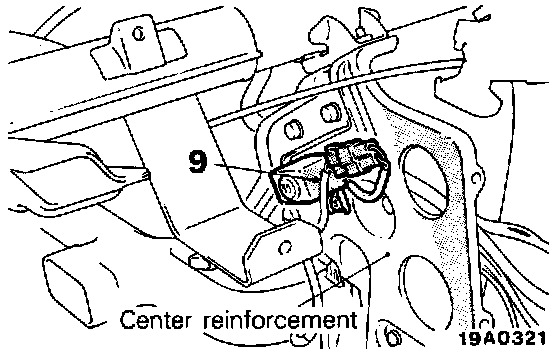

BUZZER REMOVAL STEPS
- Instrument panel assembly
9. Buzzer

NOTES:
1. Reverse the removal procedures to reinstall.
2. N indicates non-reusable parts.

SERVICE POINTS OF REMOVAL

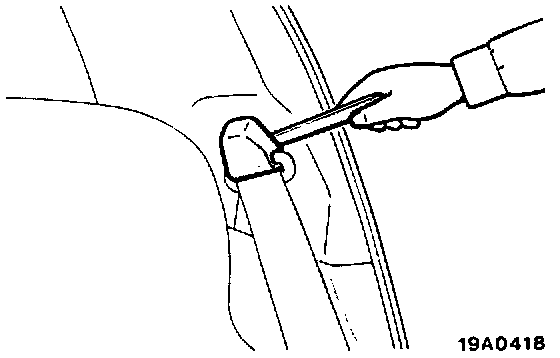

6. Removal Of Sash Guide Cover
Insert a plastic trim tool from the lower part and open the sash guide cover.

SERVICE POINTS OF INSTALLATION





7. Installation Of Front Seat Belt
Fit the retractor retaining lug in the slot provided in the vehicle body, and secure the retractor with the bolt by tightening it to the specified torque.
