Seat Belt Warning Timer: Testing and Inspection

SEAT BELT TIMER INSPECTION

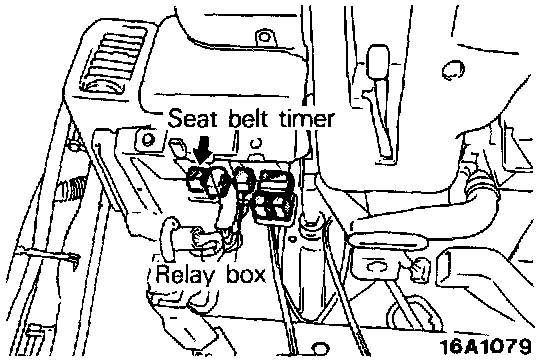

1. Remove the seat belt timer from the relay box (indoor).

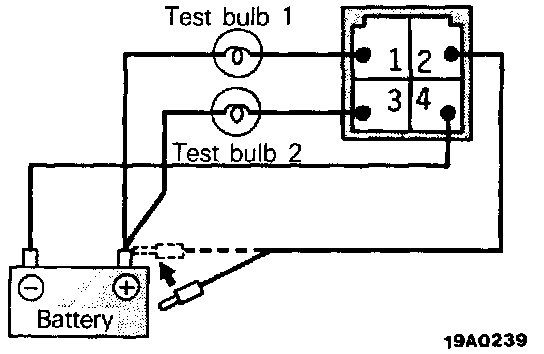

2. Connect the battery and the test bulb to the timer, as shown in the illustration.





3. Make sure that when terminal 2 is connected to the positive (+) terminal of the battery, test bulbs 1 and 2 are lighted for approx. 6 seconds.
4. Make sure that even when terminal 3 is disconnect while test bulbs 1 and 2 and lighted in (2) above, test bulb 1 remains lighted.
