Release Switch Testing

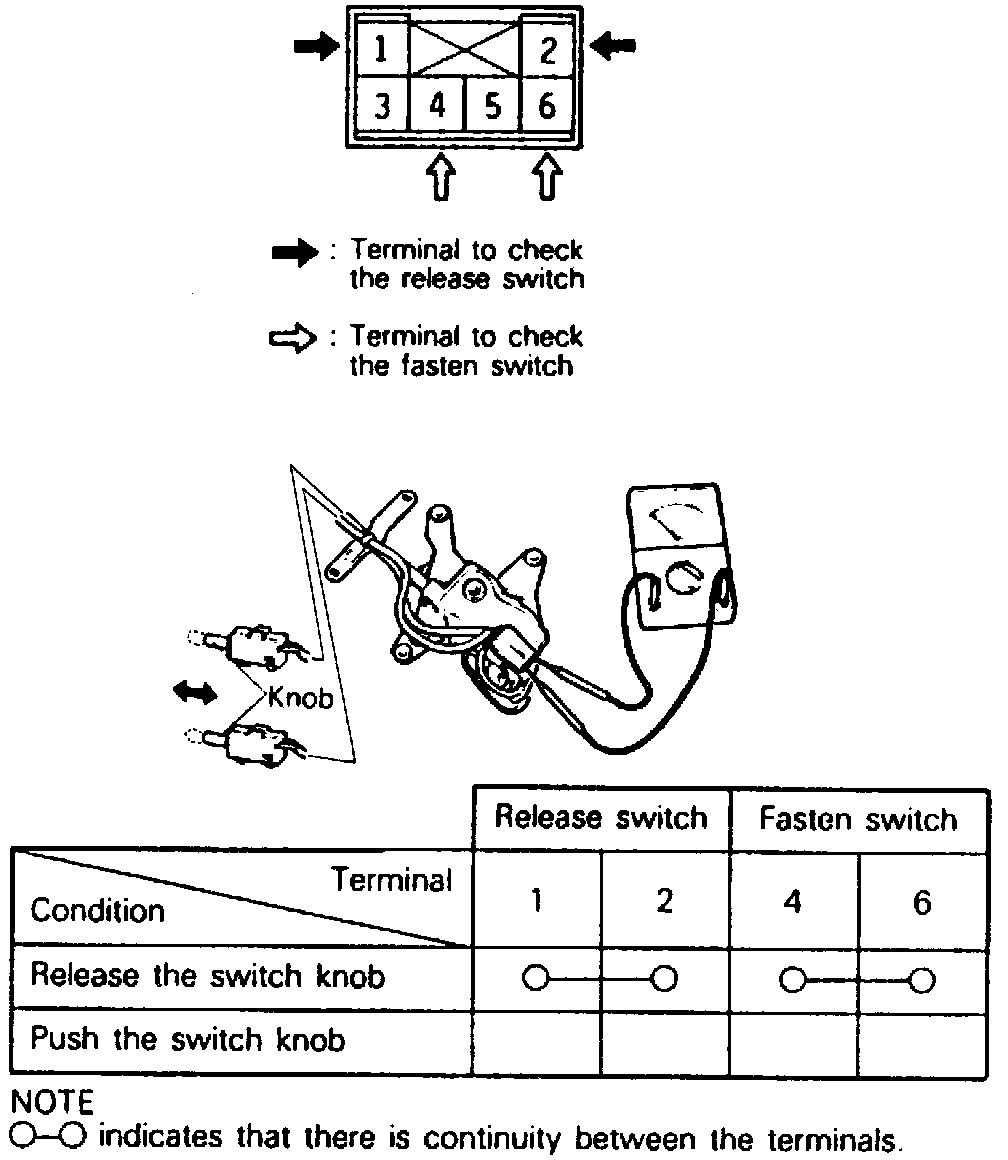

Fig. 42 Release & Fasten Switch Inspection:

1. Remove release and fasten switch.
2. Check for continuity between terminals 1 and 2, then between terminals 4 and 6.
3. If continuity does not exists for either switch, replace the release and fasten switch.
