Seat Belt Motor: Testing and Inspection

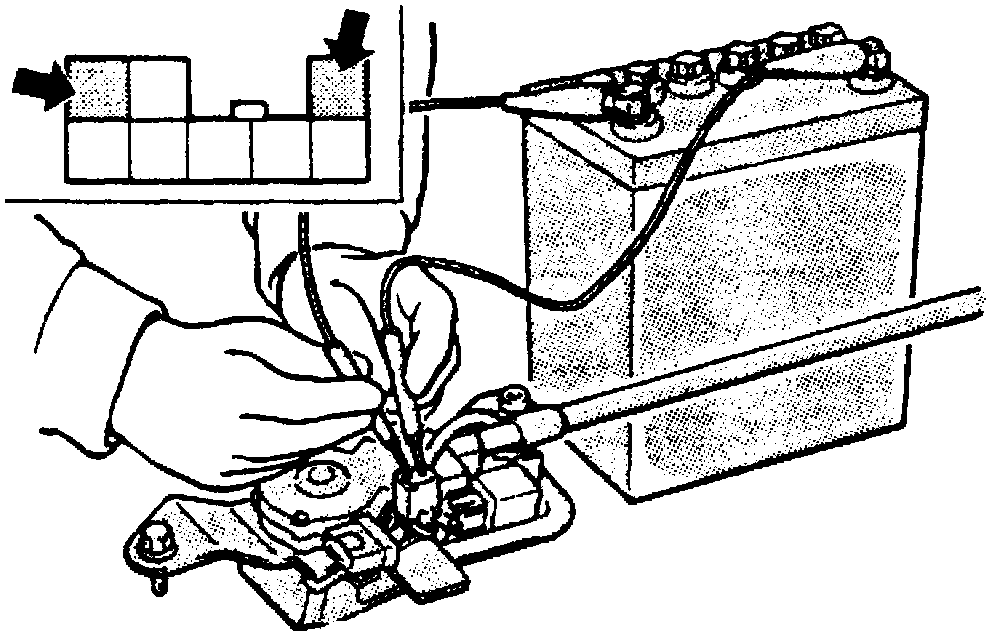

Fig. 40 Seat Belt Motor Inspection:

1. Disconnect automatic seat belt motor relay connector.
2. Connect terminals of automatic seat belt wiring harness connector to battery. Ensure motor operates smoothly.
3. Reverse polarity and ensure motor operates smoothly in reverse position.
