Seat Belt Systems: Locations

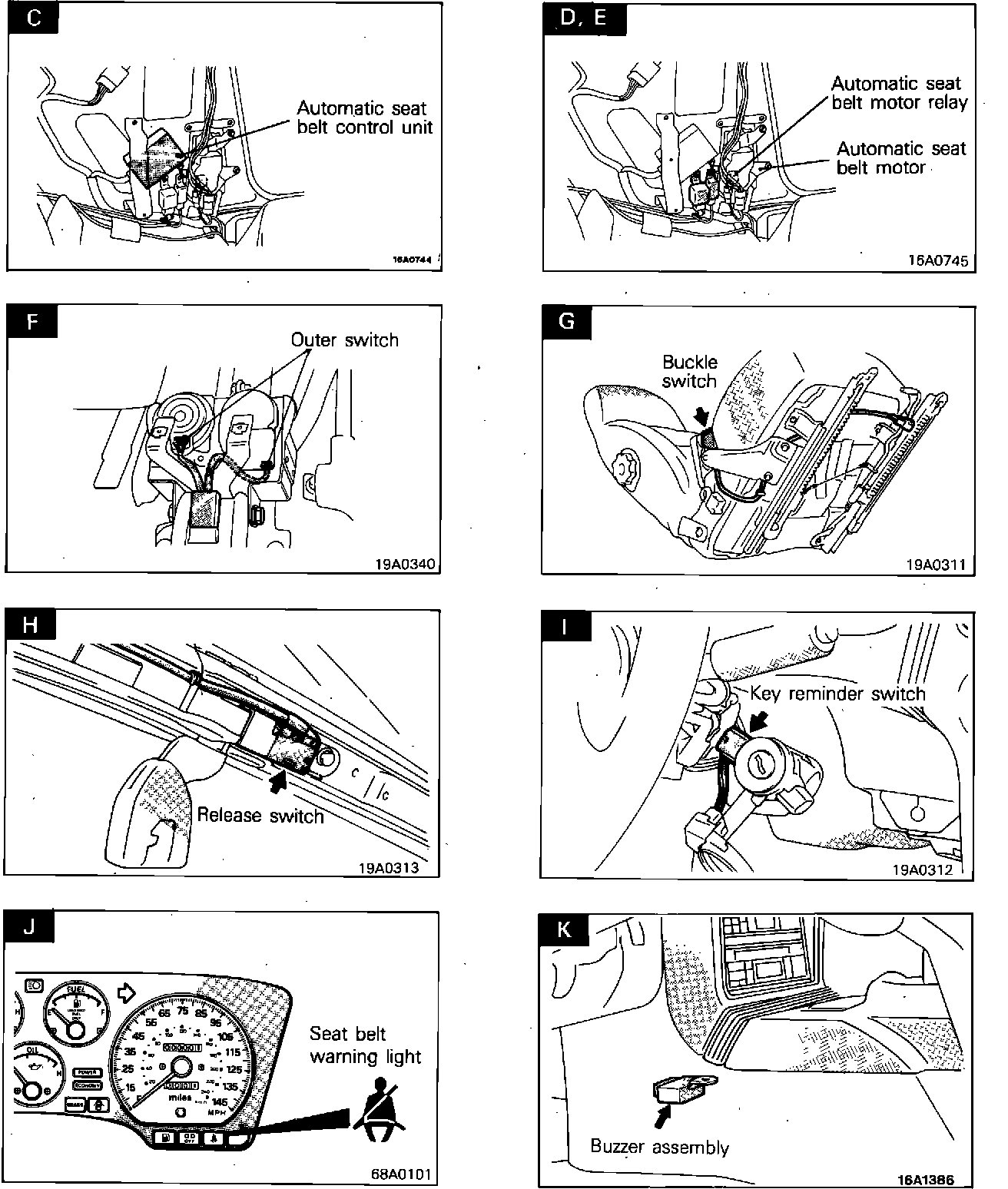

Component/Relay/Switch Locations (Automatic Seat Belt):

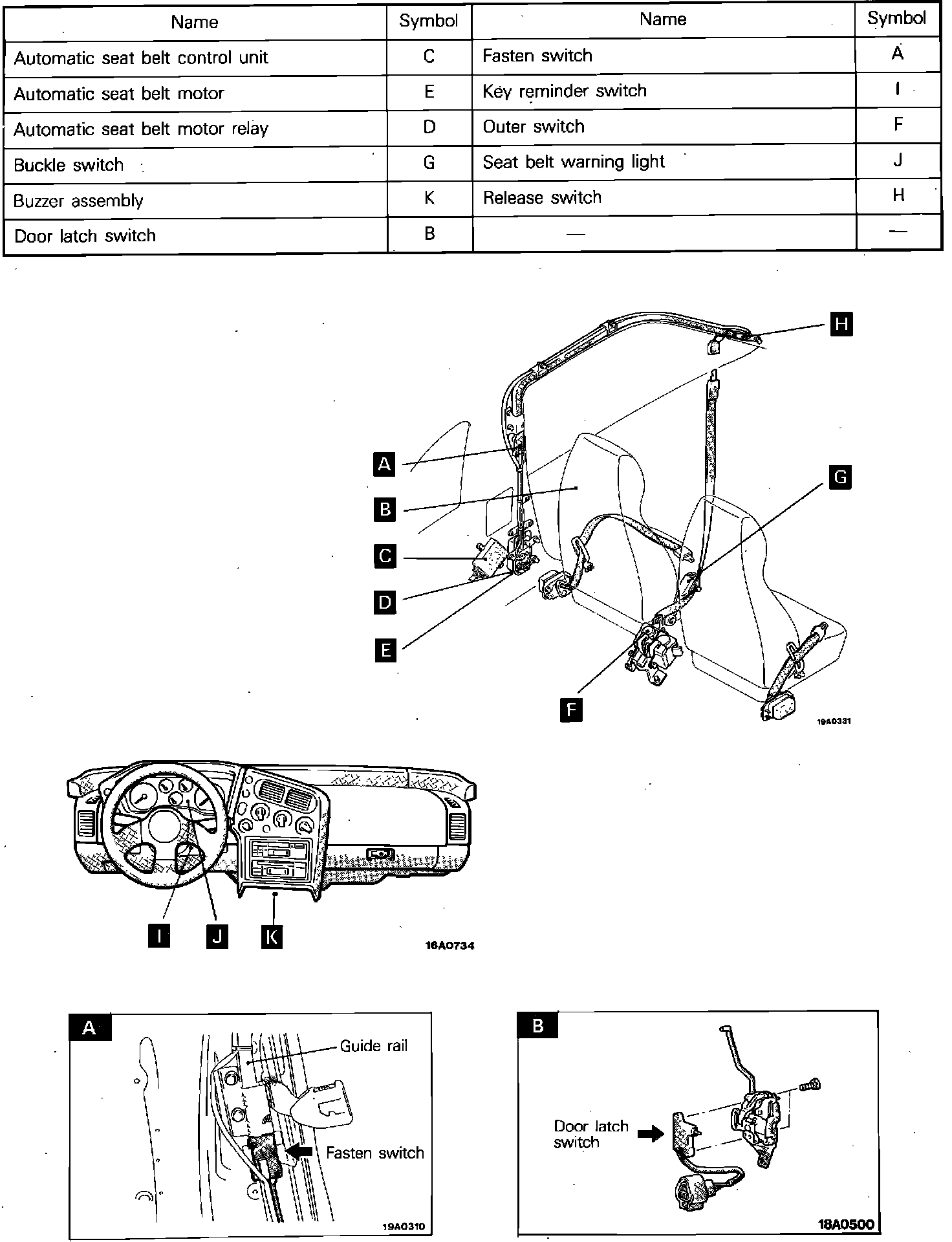

Component/Relay/Switch Locations (Automatic Seat Belt):



Fasten Switch:



Door Latch Switch:



Outer Switch:
