High Beam Relay: Testing and Inspection

For CANADA

Upper Beam Relay <Vehicles For Canada>: Step (1):

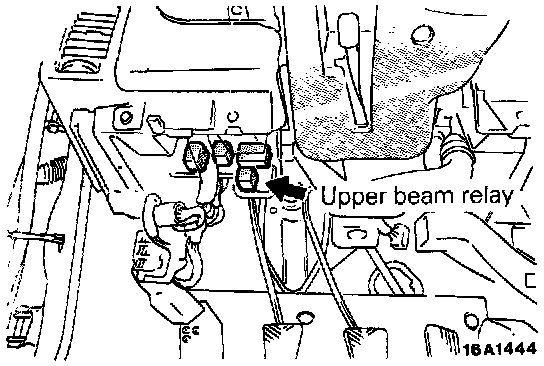

1. Take out the upper beam relay from the instrument panel relay box.

Inspection Of Headlight / Taillight / Fog Lights Relay:

2. Connect battery to terminal 2 and check continuity between terminals with terminal 4 grounded.

Power is supplied:
1-3 terminals = Continuity

Power is not supplied:
1-3 terminals = No Continuity
2-4 terminals = Continuity
