Home >> Eagle >> 1994 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> 7 Inspection of Shift Control Solenoid Valve A or B

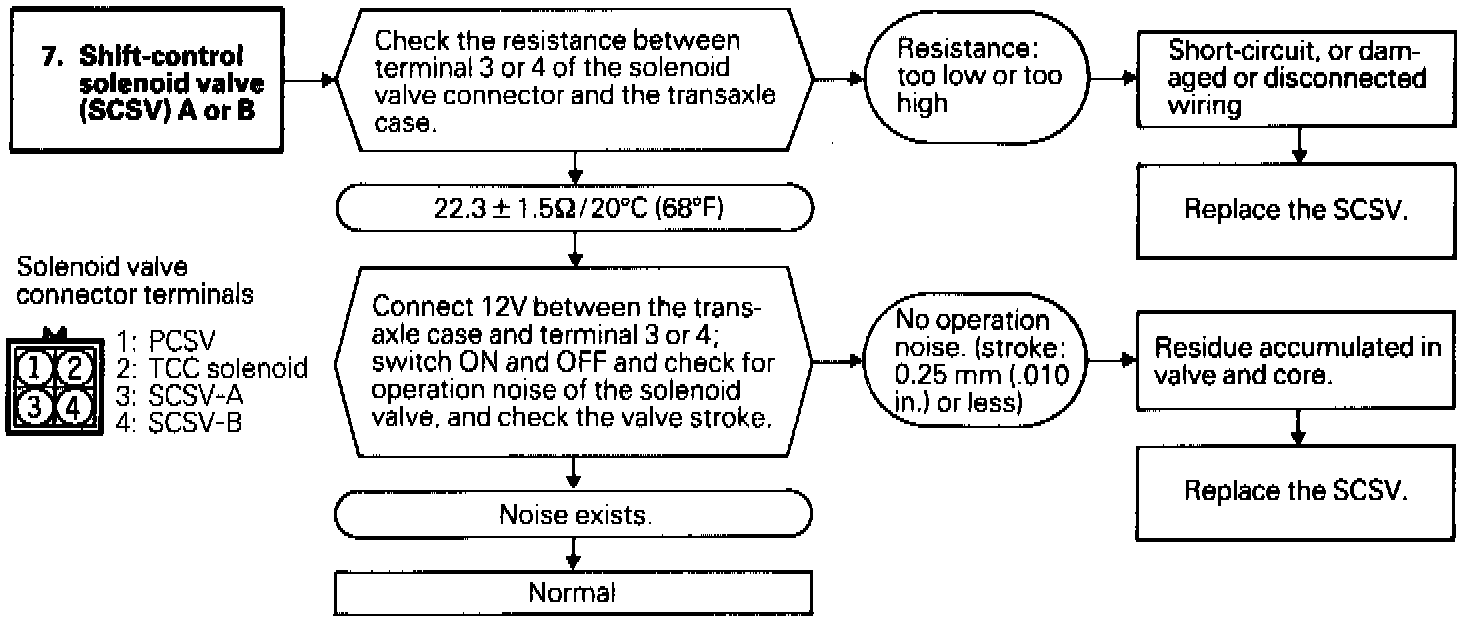

7 Inspection of Shift Control Solenoid Valve A or B
