Home >> Eagle >> 1994 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

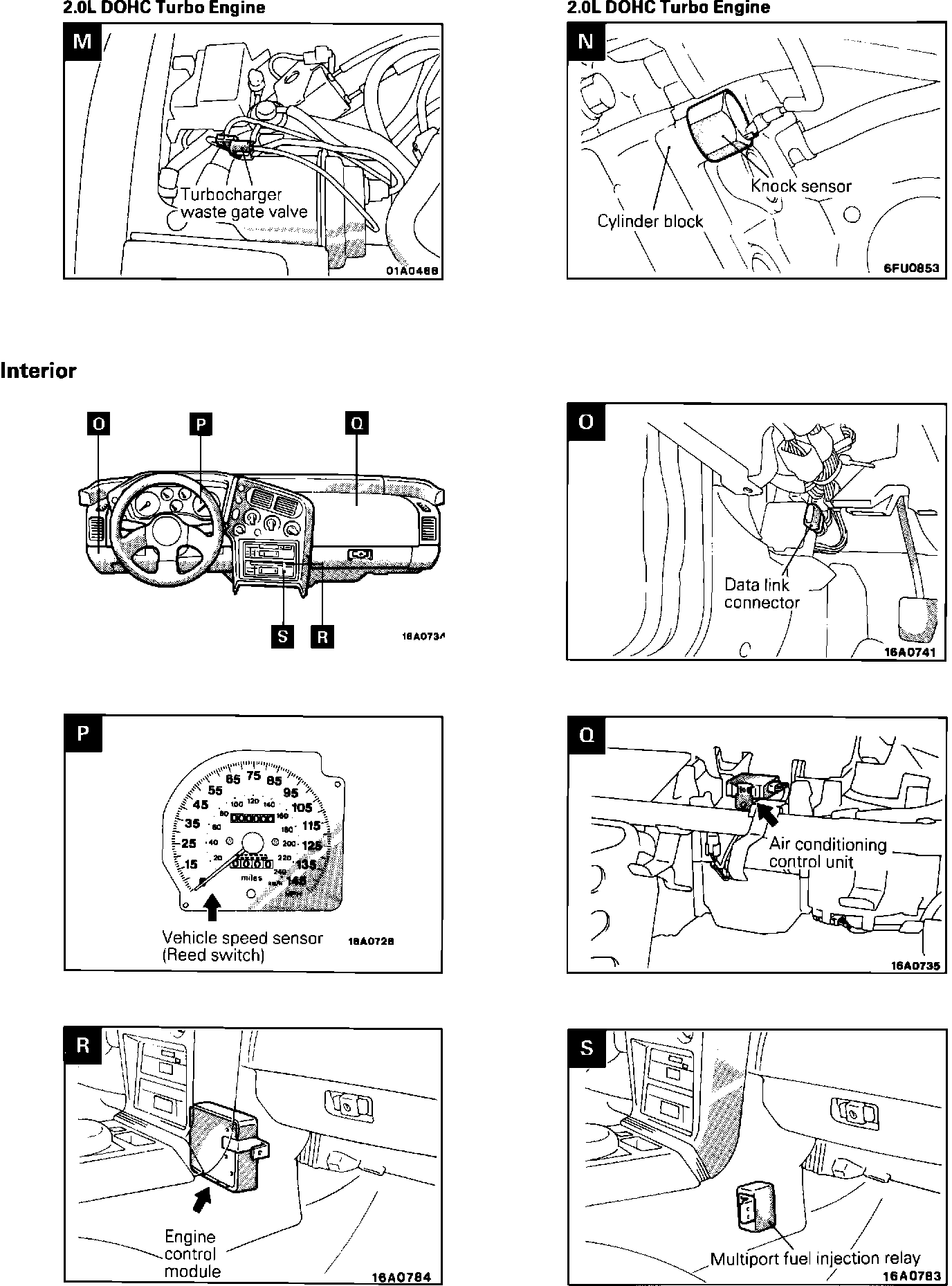

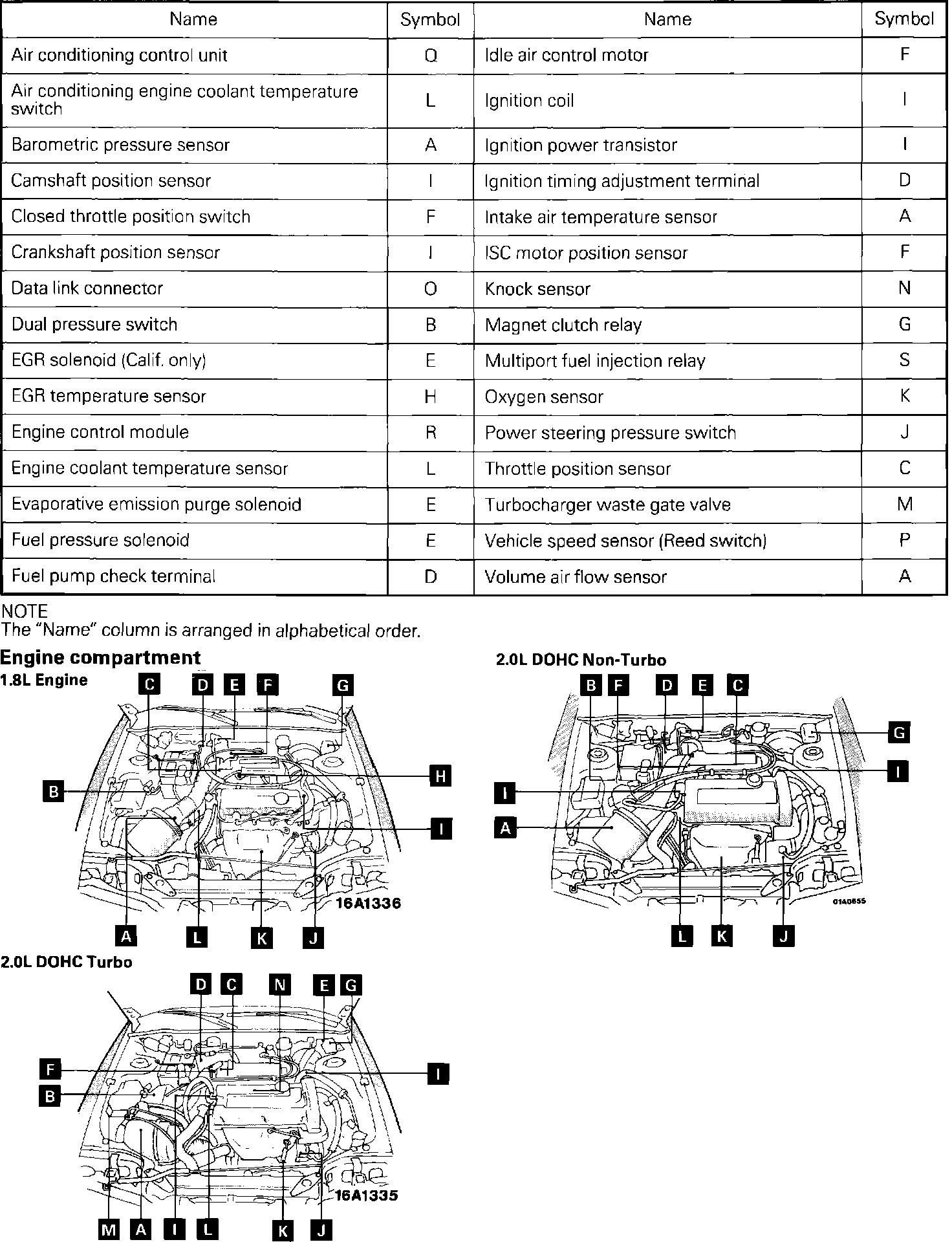

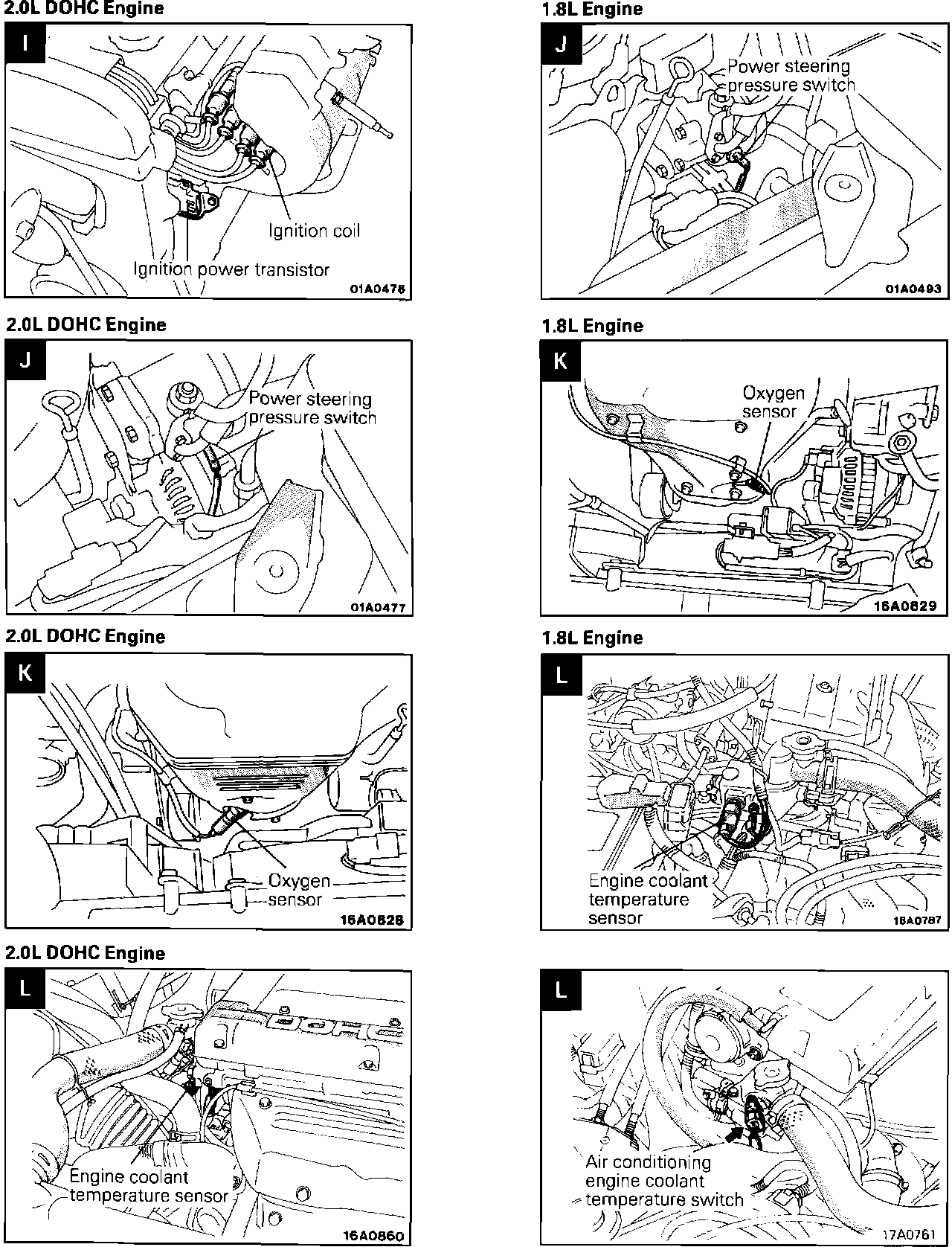

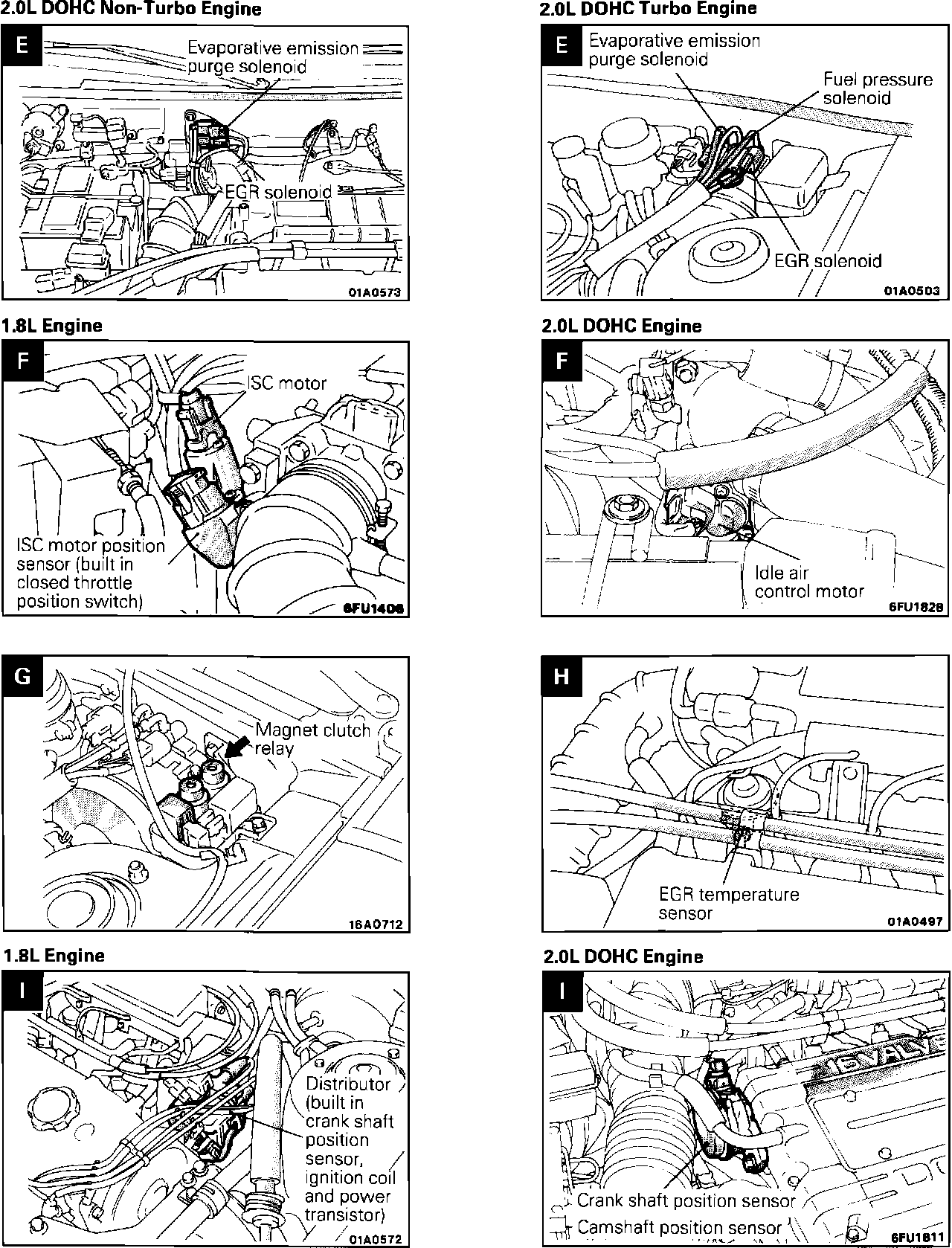

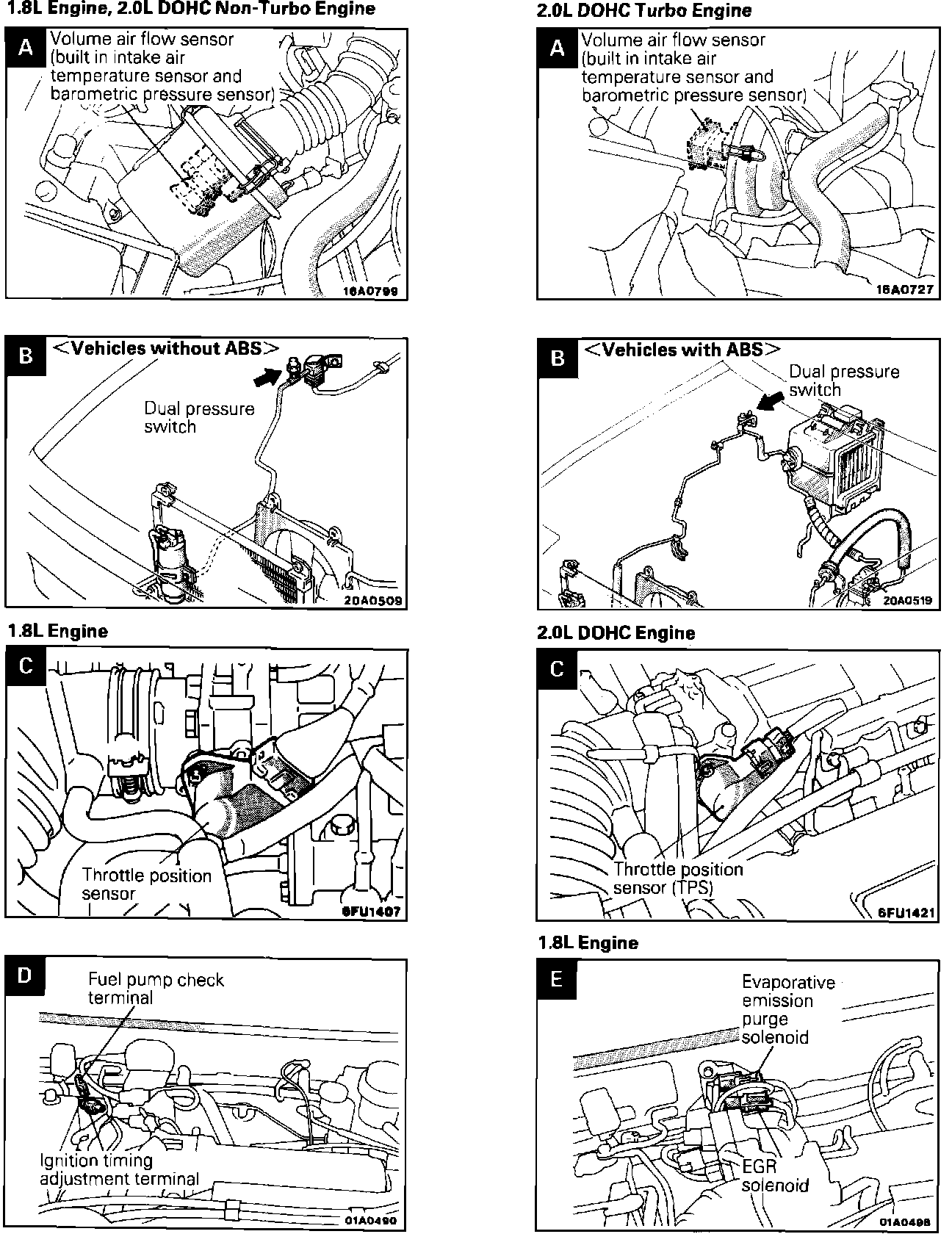

Engine Management Component Locations:



Engine Management Component Locations:



Engine Management Component Locations:



Engine Management Component Locations:



Engine Management Component Locations:
